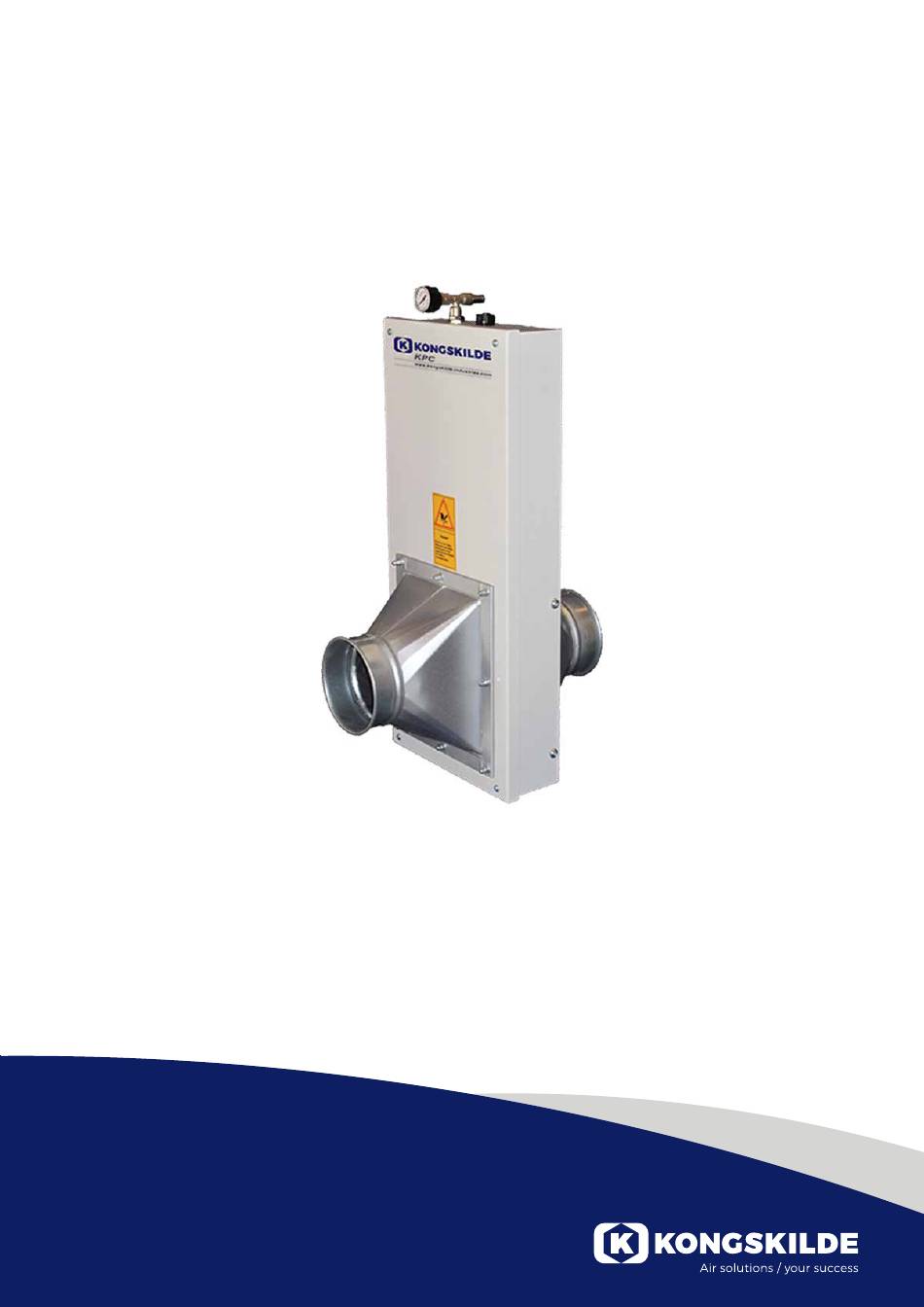

- Page 1 KPC 80 - 200 Dual strip cutters Manual Betriebsanleitung Manuel de service Instrucciones de funcionamiento Podręcznik użytkownika Brugsanvisning...
- Page 2 This user manual applies to the Kongskilde guillotine of the cutter. If removal of material in the cutter is done cutter model KPC 80-200.
- Page 3 Inlet, outlet or other guards must not be opened or removed while the cutter is in operation. Mounting: The cutter must always be installed with minimum 850 mm straight pipe on each side of the cutter, so nobody can reach the cutting device with a hand. Use the en- Electrical installation: closed clear acrylic 1 meter pipe on the exit side.
- Page 4 Timer settings: Electrical diagram: Function mode is set on Rb Examples: 8 sec cut 15 sec cut Time setting Time range 1 sec 6 sec Service and maintenance: For your safety, read the safety instructions before you work on the device. Maintenance In general there is no frequently maintenance, such as greasing and oiling.
- Page 5 Remove the 4 screws on the lower knife. 2. Dust can build up in the bushings, so there is no Turn it 180º or replace it. tolerance in between the bushing and the rail. The Before the knife is fitted, both the knife and the knifes will then go to hard against each other and it base must be 100% clean.
- Page 6 Insert or remove precision steel Loosen the screw in the corner where you want to modify. All cutters has precision steel in all 4 points, so when you add, make sure that the inserted piece is on top of what’s already inserted (not always one piece). !! Before testing make sure that all bolts and screws are tightened.
- Page 7 EC Declaration of Conformity Kongskilde Industries A/S, DK-4180 Sorø - Denmark, hereby declares that: Kongskilde cutters type KPC 80 - 200 Are produced in conformity with the following EC-directives: • Machinery Directive 2006/42/EC • Electro Magnetic Compatibility Directive 2014/30/EC •...
- Page 8 121 116 344 You can always find the latest version of the manuals at 20.01.2020 www.kongskilde-industries.com Kongskilde Industries A/S Skælskørvej 64 DK - 4180 Sorø Tel. +45 72 17 60 00 mail@kongskilde-industries.com www.kongskilde-industries.com...
