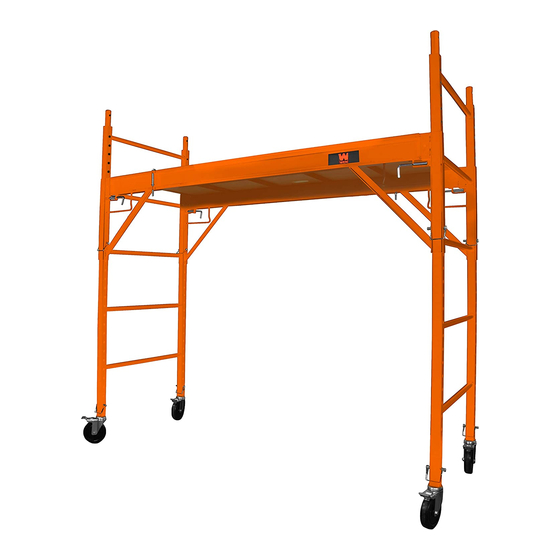

MODEL 31110, 31110T
1000-POUND CAPACITY
SCAFFOLDING
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 31110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 31110

Summary of Contents for Wen 31110

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Scaffolding Safety Warnings ................6 BEFORE OPERATING Assembly & Adjustments ..................8 OPERATION & MAINTENANCE Operation ....................... 11 Maintenance ....................12 Exploded View & Parts List ................13 Warranty Statement ..................14 WENPRODUCTS.COM To purchase accessories and replacement parts for your tool, visit Outrigger set for Multipurpose 6ft.

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Scaffolding. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Scaffolding Safety Warnings

    SCAFFOLDING SAFETY WARNINGS WARNING! To avoid mistakes and serious injury, read and understand this entire instruction manual. Learn the tool’s applications, limitations, and possible hazards. WORK AREA SAFETY SCAFFOLDING USE & CARE 1. Keep your work area clean, uncluttered, and well lit. 1.
  • Page 7 Do not use acids or other corrosive substances on These carry important safety information. If unreadable scaffolding parts, as they could corrode the metal and or missing, contact WEN customer service for a replace- decrease its strength. ment. 6. Immediately remove scaffolding from use and discard 15.

  • Page 8: Before Operating

    ASSEMBLY & ADJUSTMENTS WARNING! Read the instructions before beginning to assemble the scaffolding. Scaffold components and replacement parts from other manufacturers must not be used with this particular model. Parts should fit to- gether without being forced, otherwise the structural integrity may be compromised. Assembly and adjustments of the scaffolding requires two people.
  • Page 9 ASSEMBLY & ADJUSTMENTS MOUNTING THE PLATFORM Fig. 4 1. Lay the plywood platform (Fig. 4 - 1) over the flange pins that extend up from the side rails and into the oblong holes cut in the wood platform. These flange pins must fit properly. 2.
  • Page 10 ASSEMBLY & ADJUSTMENTS ATTACHING A SECOND SCAFFOLD WARNING! Before assembling the second stage, the lower stage must be fully assembled even if it is not being used. The lower stage provides needed structural support for the upper stage. The caster wheels must be locked to ensure that the lower stage will not move.

  • Page 11: Operation & Maintenance

    OPERATION WARNING! To prevent serious injury, make sure all the warnings and instructions have been read and un- derstood before operating this tool. If you have any questions or concerns, please contact our customer service at 1-(800) 232-1195, M-F 8-5 CST. WARNING! DO NOT OVERLOAD SCAFFOLD! IT MAY RESULT IN SERIOUS INJURY! Rated working load (evenly distributed): 1000 pounds for one stage and 750 pounds combined for two stages.

  • Page 12: Maintenance

    MAINTENANCE Procedures not specifically explained in this manual must be performed only by a qualified technician. Only a quali- fied technician. Only a qualified technician may replace any parts or make any safety equipment additions to this scaffold. 1. Before each use, inspect the general condition of the scaffold. Check for: •...

  • Page 13: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST Part No. Description Qty. 31110-001 Side Rail 31110-002 End Frame 31110-003 Platform (LxWxH) 66-21/64" x 28-1/2" x 15/32" 31110-004 Locking Pin 31110-005 5" Swivel Casters with Brake 31110-006 Platform Hold-down 31110-007 L-Shaped Pin...

  • Page 14: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
  • Page 15 NOTES...
  • Page 16 THANKS FOR REMEMBERING V. 2021.03.22...
