Alula Connect+ RE663 Quick Start Manual

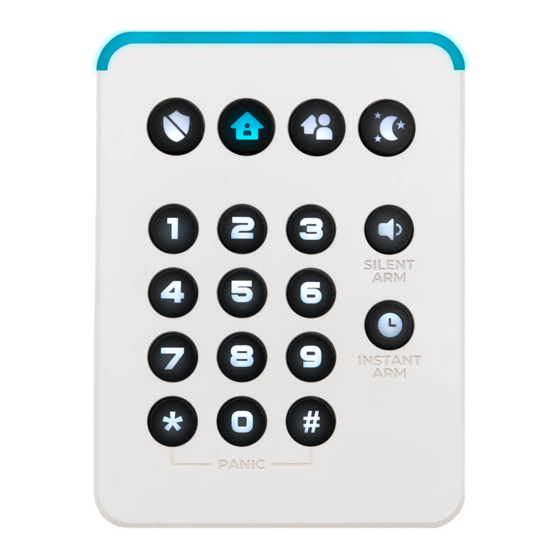

LED Keypad
is a table or wall mounted interface that chimes
and uses lit keys and an LED light bar to provide visual
arming status. The LED Keypad can be battery operated or
AC powered for flexible installs.
Features
• Displays real-time status
• Wall or table mount
• AC with battery backup or battery only power
• 1 year battery life for battery only power
• User replaceable AA batteries
Enroll
by placing the panel and LED Keypad into wireless enrollment mode.
1. Press the enroll button on the side of the panel to put the panel into wireless enrollment mode.
2. Hold 1 and 3 simultaneously for 3 seconds on the Keypad to put the Keypad into wireless
enrollment mode. Light bar will "breathe" yellow when enrollment mode is entered.
3. The light bar will turn green if enrollment was successful or red if unsuccessful.
Operate
using the LED Keypad buttons.
Light bar
• Indicates arming level with color (Disarm - Green, Stay - Cyan, Away - Red,
Night - Blue).
• Amber corners indicate trouble condition.
• AC powered operation uses full light bar. Light bar "breathes" if zones are open.
• Battery operation uses light bar corners. Light bar blinks periodically and will
double blink periodically if zones are open.
Disarm
• Indicates Disarmed
• Cancel Force Arm
• Silence Trouble beeps
(w/code if required
0-9 to Enter User Code
• Disarm
• Force Arm
• Arm if required
• Silence Trouble beeps
if required
1
• Press and hold 1 & 3 for
Enrollment
1. Depends on panel settings
(Quick Arm, UL, etc.)
2. Device cannot be tampered
when changing settings
)
1
1
Panic Alarm Trigger
Press and hold the * and #
buttons for 3 seconds
Use the panel installation guide to verify proper system setup.
RE663 LED Keypad
Connect+
™
Encrypted
Stay/Away/Night
• Change & Indicates
Arming Level
• Hold Night for 3
seconds to turn
display off
Silent Arm
• Silent Arm or Disarm
Modifier
• Hold and press 0-9 to
adjust volume
Instant Arm
• No Entry Delay Modifier
• Hold and press 1-9 to
adjust brightness
I
2
2
