Alula RE152 PINPad Quick Start Manual

Resolution Compatibles

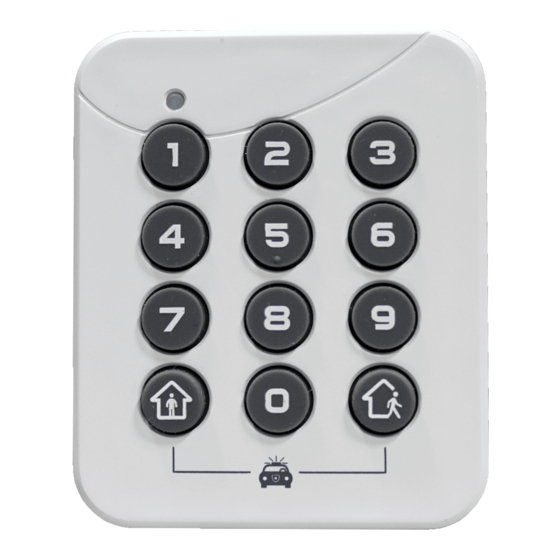

PINPad
is a simple arming station that allows local control
of the security system. It is battery powered and requires
no installation tools. Many can be installed throughout
the home to provide convenient system control.

Features

• Secure 4 digit disarming
• Supports 1-button arming
• Small yet comfortable
• 5 year warranty
Enroll
by placing the panel into wireless enrollment mode
and then sending an enrollment signal from the PINPad.
Option for sending an Enrollment Signal
• Press both STAY and AWAY buttons
simultaneously
To change the access code, do these steps:
1. Enter current 4-digit access code - the default code
is 1234.
2. Within 4 seconds, press and hold the "1" and "3"
keys simultaneously. After 3 seconds, red LED will
be lit.
3. Enter new 4-digit access code. The green LED will
be lit. Note the new code. (The access code cannot
be reset without the current access code).
Install
using the 3M™ VHB™ tape on the back of the
PINPad to adhere it to a wall.
• See Pro Tips for recommendations about
using 3M VHB tape.
• Two #4 or #6 screws may be used instead of,
or in addition to, the 3M VHB tape.
• The mounting plate can also be rotated 180
for table top use (See Pro Tips).
Operate
using the PINPad buttons. The PINPad LED will
blink when a button is activated.
Disarm
by entering the 4 digit user code on the number
pad.
Arm Away
by pressing the AWAY button until the
PINPad LED flashes red.
Arm Stay
by pressing the STAY button until the PINPad
LED flashes red.
Trigger a panic alarm
buttons together until the red PINPad LED flashes
repeatedly.
RE152 PINPad
Interlogix
by pressing the STAY & AWAY
Use the panel installation guide to verify proper system setup.
™
Compatible
®
Mounting Screw Holes
°
Enrollment Buttons
VHB Tape
VHB Tape
LED
Arm Stay Arm Away
I
