Summary of Contents for punch PMX-3
- Page 1 DIGITAL MEDIA RECEIVER PMX-3 Serial Number: Date of Purchase: Installation & Operation...
- Page 2 44 Limited Warranty Information ©2016 Rockford Corporation. All Rights Reserved. PUNCH® and associated logos where applicable, are registered trademarks of Rockford Corporation in the United States and/ or other countries. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
- Page 3 Specifications Model PMX-3 Operating Voltage 10.5V - 16V Fuse Rating 25 W X 4 @ 4 Ohms RMS Power Output 50 W x 4 @ 2 Ohms Peak Max. RCA Output Voltage Output Impedance 500Ω Frequency Response 20 - 20kHz FM Frequency Range 87.5MHz - 107.9MHz...

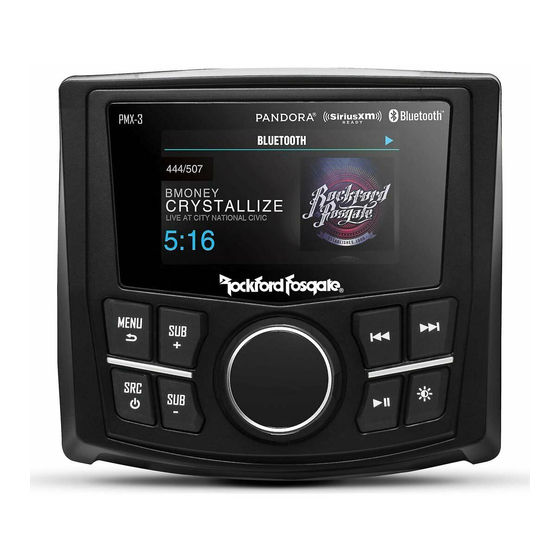

- Page 4 This button gives you access to the main settings of the unit by long pressing. Short pressing will give you access to the settings for the active source. PMX-3 SRC (Power) Button This button allows you to switch between DIMMER button sources (short press) and power the unit ON and OFF (long press).
- Page 5 Wiring Diagram A SiriusXM Connect Tuner and subscription are required to access SiriusXM Radio Features (Sold separately). To use the SiriusXM feature, plug the SiriusXM output RCA cables into the AUX input RCA. For vehicles with Steering Wheel Control the use of the PAC SWI-RC or Metra Axxess ASWC-1 interface module is required.
- Page 6 Installation / Mounting Contents Mounting (Using Mounting Plate) • Source Unit • Screws To mount the unit, you will need to find a flat surface with adequate clearance behind it that provides enough clearance for the unit and all it’s •...
- Page 7 Rotate the encoder button to select the desired THEME (DAY, NIGHT, to adjust the gain output (0-12). Short press MENU to exit and go back AUTO) up one level. Punch EQ is an onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12.5kHz...
- Page 8 Settings ADD PRESETS FACTORY DEFAULT AUDIO – Short press the encoder button to access. Rotate the encoder Short press the encoder button on the ADD PRESETS option. You will button to select YES/NO. Selecting YES will reset your unit back to need to be on both the station and PRESET group you want to add first factory default settings.
- Page 9 Operation AUTO STORE BROWSER Short press the encoder button to access the AUTO STORE function. Short press the encoder button to access the BROWSER options (PLAY You will need to be under the PRESET group you want to adjust first LISTS>ARTISTS>ALBUMS>GENRES>SONGS>COMPOSERS>AUDIOBO (AM1>AM2).
- Page 10 Operation BROWSER STATIONS MANAGE Short press the encoder button to access the BROWSER options (PLAY To create stations, short press the encoder button to display your LISTS>ARTISTS>ALBUMS>GENRES>SONGS>COMPOSERS>AUDIOBO STATION MANAGE options (CREATE FROM ARTIST> CREATE FROM OKS>PODCASTS). Using this feature allows you to search for tracks or TRACK>...
- Page 11 This feature allows you to connect an external camera and view it through using the SiriusXM source. This will give you access to the settings the PMX-3. A reverse trigger is provided to activate the camera when specific to SiriusXM (SXM>PRESETS>ADD PRESETS>REMOVE putting the vehicle in reverse or you may select the camera from the PRESETS>CHANNELS>CATEGORY).
- Page 12 Troubleshooting` Symptom Diagnosis Remedy Basic Blown fuse Check fuse of the unit, replace with correct rating. If connected following the instructions, the unit will not Vehicle’s ignition is off operate with ignition off. Source unit does not turn on. Voltage applied to Red wire is not Check battery, connections and fuses and repair or replace between 10.5 &...
- Page 13 Troubleshooting SiriusXM Verify that the antenna cable is connected to the SiriusXM Connect Tuner The radio has detected a fault with the SiriusXM antenna. The antenna Inspect the antenna cable for damage and kinks. Replace the Check Antenna cable may be either disconnected or antenna if the cable is damaged.
- Page 14 Length of Warranty POWER Amplifiers – 2 Years BMW® Direct Fit Speakers – 2 Years PUNCH® & PRIME® Amplifiers – 1 Year Speakers, Signal Processors, Accessories and Capacitors – 1 Year All marine, motorcycle, motorsport products - 2 Years Any Factory Refurbished Product – 90 Days (receipt required) What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by authorized Rockford Fosgate dealers in the United States of America.
- Page 15 Installation assistance available at: www.rockfordfosgate.com/rftech 600 South Rockford Drive • Tempe, Arizona 85281 United States Direct: (480) 967-3565 • Toll Free: (800) 669-9899 R O C K F O R D F O S G A T E . C O M...
