Complete closet kit
Hide thumbs Also See for WSWS-CS1C:
Table of Contents

Advertisement

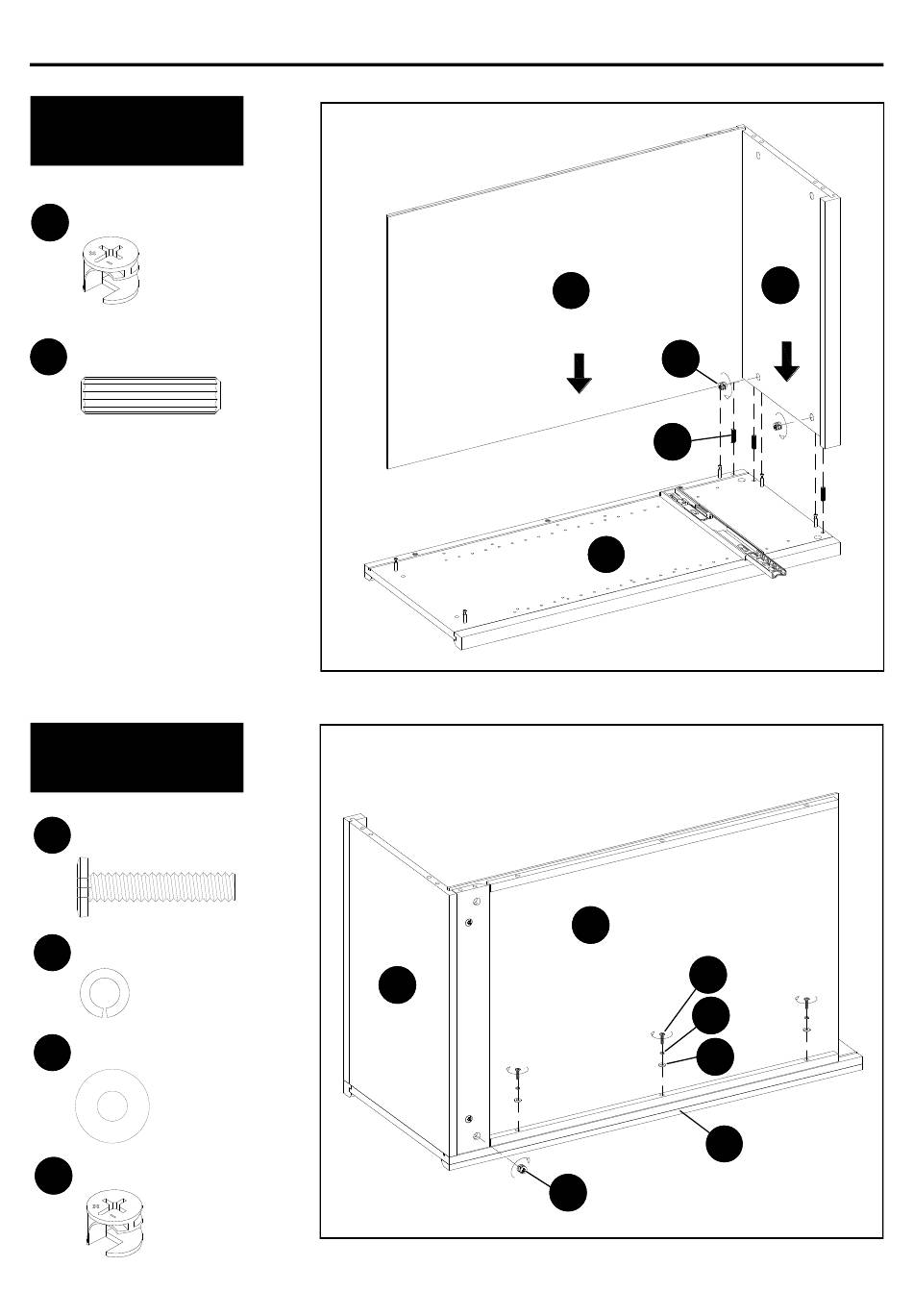

ASSEMBLY INSTRUCTIONS
Step 4
Base assembly
Large Cam Lock
DD
x 2
Large Wood Dowel
HH
Step 5
Base assembly
AA
1/4 x 1-1/4 in. Bolt
BB
Lock Washer
x 3
CC
Flat Washer
x 3
Large Cam Lock
DD
x 1
x 3
x 3
J
K
I
K
Back Side
DD
8
J
DD
HH
AA
BB
CC
I
