- Page 1 1060 Smartcard Reader User Guide Technology Solutions UK Ltd Suite A, Loughborough Technology Centre, Epinal Way, Loughborough, Leicestershire, LE11 3GE, United Kingdom. Tel: +44 (0) 1509 238248 Fax: +44 (0) 1509 220020 Email: enquiries@tsl.com...
- Page 2 1060 Copyright © 2021 Technology Solutions (UK) Ltd. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from Technology Solutions (UK) Ltd. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems.
-
Page 3: Table Of Contents
1060 Contents Introduction ......................... 4 Parts of the 1060 Smartcard reader ................... 4 Attaching to an MC70/75/75A .................... 5 Detaching from an MC70/75/75A ..................6 Status LED ......................... 7 Card orientation ........................7 Versions of the 1060 ......................8 Software ..........................9 Driver description ...................... -
Page 4: Introduction

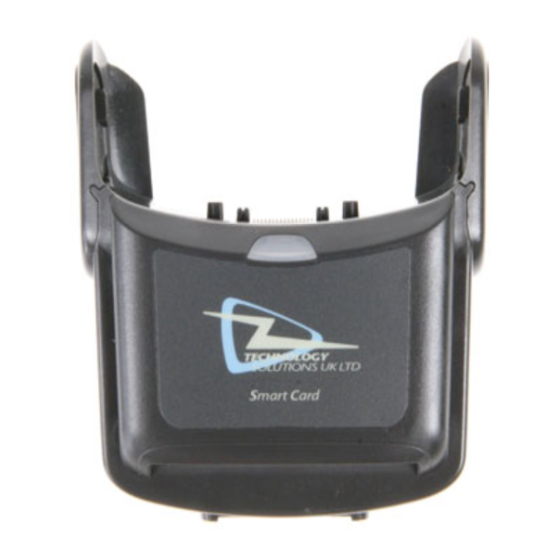

1060 1 Introduction Technology Solutions’ 1060 Smartcard reader is intended for use with the Motorola MC70, MC75 and MC75A series of Mobile Computers. It provides the Mobile Computer with the ability to read and write contact smartcards including the Common Access Card (CAC). The 1060 Smartcard reader attaches as a snap on to the host mobile computer. -
Page 5: Attaching To An Mc70/75/75A
1060 3 Attaching to an MC70/75/75A Align the slots on the side of the Mobile Computer with the guides on the fixing clips of the 1060 Smartcard Reader. Slide the 1060 Smartcard Reader on to the Mobile Computer. The 1060 will click as it attaches. -
Page 6: Detaching From An Mc70/75/75A
1060 4 Detaching from an MC70/75/75A Remove the latch locking screws if fitted. Squeeze the spring clips together by pressing on the latch locking screw holes. Slide the 1060 Smartcard reader off the Mobile Computer. Figure 3: Detaching from an MC70/75/75A Technology Solutions (UK) Limited reserves the right to change its products, specifications and services at any time without notice. -
Page 7: Status Led
1060 5 Status LED The 1060 Smartcard reader has an LED which indicates the operating status of the 1060 Smartcard reader. The LED lights green when the driver is correctly loaded and the Mobile Computer is powered up. The LED lights orange whenever there is communication with a smartcard. -
Page 8: Versions Of The 1060
1060 7 Versions of the 1060 In 2012 the 1060 product received a refresh. This was required to provide compatibility with the MC75A and to support the latest, high memory capacity smartcards. At the same time the card slot was upgraded to one rated for at least 500 000 insertions. The updated 1060 is identified by a ‘B’... -
Page 9: Software
1060 8 Software 8.1 Driver description The 1060 Smartcard reader driver for each version integrates with the Microsoft Smartcard Resource Manager that is part of the Mobile Computer Windows Mobile 5/6 operating system. This allows the generic Microsoft API to be used to communicate with smartcards (and memory cards) inserted into the Smartcard Reader. -
Page 10: Reader Test
1060 Application / driver Reader Terminal Notes SmartCardDriver Original MC70 Driver install for original version of 1060. 1.5.0.1.CAB Smartcard reader name appears 1060 “SCR131 Serial Smart Card Reader [1]” SmartCardDriver Original MC75 Driver install for original version of 1060. 1.5.0.1.CAB 1060 Smartcard reader... - Page 11 1060 If required, a quick test that the driver is installed and the reader is operating can be performed using TestResMan.This application is copied to a convenient location on the Mobile Computer and does not require installing. Launch TestResMan by navigating to the file using File Explorer and tapping on it. If TestResMan launches and then immediately closes the driver has not deployed successfully.
- Page 12 1060 Figure 7 : TestResMan ATR Tap ‘Disconnect’ and chose to ‘Powerdown Card’. Exit TestResMan by tapping top right ‘X’ (may be partly concealed). Technology Solutions (UK) Limited reserves the right to change its products, specifications and services at any time without notice. Page 12 of 22 www.tsl.com Copyright ©...
-
Page 13: Peripheral Compatibility
1060 9 Peripheral compatibility The 1060 Smartcard Reader is compatible with any standard peripheral that uses the USB port. The serial port is not available because it is used exclusively by the 1060. ActiveSync connections to the Mobile Computer can be established over USB. Power is passed directly through the 1060 to the Mobile Computer allowing charging in standard desktop cradles and cable cups. -
Page 14: Troubleshooting And Maintenance
1060 11 Troubleshooting and Maintenance 11.1 Maintenance For trouble-free service treat the 1060 Smartcard Reader in the same way as you would the MC70/75/75A and observe the following tips when using the 1060 Smartcard Reader: Do not store or use the 1060 Smartcard Reader in any location that is dusty, damp, or wet. - Page 15 1060 Symptoms Possible Cause Action The wrong protocol / mode is Verify the correct protocol being used to communicate (T=0 or T=1) is being used to with the card. communicate with the card. Mobile Computer battery The battery is faulty. Verify that other batteries does not charge charge...
-
Page 16: Regulatory Information
1060 13 Regulatory information 13.1 Information to the user - FCC This device complies with Part 15 of the FCC Rules. • Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 17: Technical Specifications
1060 14 Technical specifications 14.1 Summary of specifications The following table summarises the 1060 Smartcard Reader’s intended operating environment and technical hardware specifications: Performance Characteristics Compliance ISO17816-1, 2, 3, 4 T=0, T=1 protocol 2 wire (SLE 4432/42, S=10), 3 wire (SLE 4418/28, S=9) and I2C (S=8) also supported by reader hardware. - Page 18 1060 Sealing Internal components conformal coated Electrostatic discharge +/-15kV discharge, +/-8kV contact discharge Construction RoHS compliant Regulatory EN 55022:2010, EN 55024:2010 USA - FCC Part 15 Class B Canada – ICES-003 Class B Electrical Safety IEC 60950-1:2005 + A1:2010 EN 60950-1:2006 + A11:2009 + A1:2010 60950-1:2007, CAN/CSA-C22.2 60950-1-07...
-
Page 19: Health And Safety Recommendations
1060 15 Health and Safety Recommendations Ergonomic Recommendations Caution: In order to avoid or minimize the potential risk of ergonomic injury, follow the recommendations below. Consult with your local Health & Safety Manager to ensure that you are adhering to your company's safety programs to prevent employee injury. Reduce or eliminate repetitive motion Maintain a natural position Reduce or eliminate excessive force... -
Page 20: Waste Electrical And Electronic Equipment (Weee)
1060 16 Waste Electrical and Electronic Equipment (WEEE) For EU Customers: All products at the end of their life must be returned to TSL for recycling. For information on how to return product please contact TSL. 17 Warranty (A) Warranty TSL’s hardware Products are warranted against defects in workmanship and materials for a period of twelve (12) months from the date of shipment, unless otherwise provided by TSL in writing, provided the Product remains unmodified and is operated under... - Page 21 1060 parameters set forth in the applicable Product specification; nor shall the above warranty provisions apply to any expendable or consumable items, such as batteries, supplied with the Product. EXCEPT FOR THE WARRANTY OF TITLE AND THE EXPRESS WARRANTIES STATED ABOVE, TSL DISCLAIMS ALL WARRANTIES ON PRODUCTS FURNISHED HEREUNDER INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE.
- Page 22 Millions of people around the world use HID products and services to navigate their everyday lives, and billions of things are connected through HID technology. We work with governments, educational institutions, hospitals, financial institutions, industrial businesses and some of the most innovative companies on the planet.
