- Page 1 15370 Barranca Parkway Irvine, CA 92618 MaxiProx® DFM Reader - 5375 INSTALLATION GUIDE 5375-901, Rev E.1 March 2012 © 2008-2012 HID Global Corporation. All rights reserved.
-
Page 2: Table Of Contents
4.3 RS232 and RS422 Card Message Specification (Send Mode Only) .......19 List of Figures Figure 1: MaxiProx Front View ............................ 11 Figure 2: MaxiProx interior view showing mounting hole locations ................12 Page 2 of 19 March 2012 © 2008 - 2012 HID Global Corporation. All rights reserved. -
Page 3: Contact
Table 10: Data Pulses - Timing Parameters ....................... 15 Table 11: Data Timing - Timing Chart ......................... 17 HID GLOBAL, HID, the HID logo and MaxiProx are the trademarks or registered trademarks of HID Global Corporation, or its licensors, in the U.S. and other countries. -
Page 4: System Overview
Wiegand, Clock-and-Data, RS 232 and RS422. The data interface is configured as ordered from the factory, but can be changed in the field - please contact HID Technical Support for assistance. A tamper switch can alert the Host when the enclosure is opened. Internal DIP Switches and jumpers provide for configuration of the outputs, audible tone and LED control options. -
Page 5: Regulatory Approvals And Certifications
MaxiProx. Plastic J-boxes can also be used. Cable Preparation Prepare the cable by cutting the cable jacket back 2 inches and strip the wires 1/4-inch. Tinning the wires is not required. March 2012 Page 5 of 19 © 2008-2012 HID Global Corporation. All rights reserved. -
Page 6: Install Cable
P2 shunt jumper installation. Power Supply Voltage Jumper Position +24 VDC (21-28.5VDC) P2 across pin 2 and 3 +12 VDC (11.6-20.9VDC) P2 across pin 1 and 2 Page 6 of 19 March 2012 © 2008 - 2012 HID Global Corporation. All rights reserved. -
Page 7: Dip Switch And Jumper Settings
See Table 7: Baud Rate Chart – RS232 and RS422 Table 4: Interface Jumpers Description - P3 and P4 P3 and P4 See Table 6: Mode Chart March 2012 Page 7 of 19 © 2008-2012 HID Global Corporation. All rights reserved. -
Page 8: Table 5: Switch Description - Sw2
Note: When configuring the outputs as isolated, use separate power supplies for the MaxiProx and Host. These switches are unused when in RS232 or RS422 mode. Page 8 of 19 March 2012 © 2008 - 2012 HID Global Corporation. All rights reserved. -
Page 9: Tamper Switch
P2 shunt jumper installation. Power Supply Voltage Jumper Position +24 VDC (21-28.5VDC) P2 across pin 2 and 3 +12 VDC (11.6-20.9VDC) P2 across pin 1 and 2 March 2012 Page 9 of 19 © 2008-2012 HID Global Corporation. All rights reserved. -
Page 10: Auto-Tune Operation
During idle periods in normal operation, a periodic supervisor 1-byte transmission is sent to the host controller over the Wiegand interface every 1 minute. Supervisor Mode is only available in Wiegand Interface Mode. Page 10 of 19 March 2012 © 2008 - 2012 HID Global Corporation. All rights reserved. -
Page 11: Install Cover

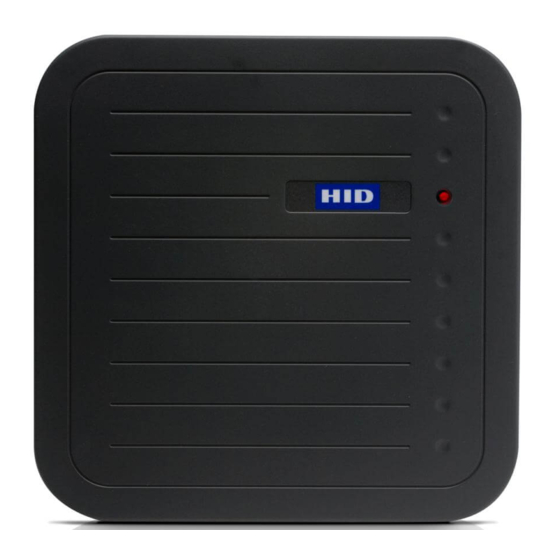

Reinstall the cover, verify Auto-tune, and install the front label over the top cover screw and the Auto-tune indicator lens. 11.800 +/ - .03 Figure 1: MaxiProx Front View March 2012 Page 11 of 19 © 2008-2012 HID Global Corporation. All rights reserved. -
Page 12: Figure 2: Maxiprox Interior View Showing Mounting Hole Locations
SHUNT PINS 1 AND 2+11-20 VDC 1.64 2.625 4.000 - CAUTION - HIGH VOLTAGE 4.000 4.000 Figure 2: MaxiProx interior view showing mounting hole locations Page 12 of 19 March 2012 © 2008 - 2012 HID Global Corporation. All rights reserved. -
Page 13: Installation Guidelines
The MaxiProx should not be mounted within six feet of any monitors (VDTs or CRTs) because the scan frequencies of most monitors include frequencies that may interfere with the signal received from the access control cards. March 2012 Page 13 of 19 © 2008-2012 HID Global Corporation. All rights reserved. -
Page 14: Transponder Types
Installation Guide Transponder Types The type of transponder used affects the read range of the MaxiProx. The various styles of HID cards and transponders use different types of antennas. The antenna type will determine the read range for that type of transponder. The Vehicle ID tag provides the longest read range at 32-36 inches; the ProxCard II is 24-29 inches. -
Page 15: Table 9: Logic Levels
Table 10: Data Pulses - Timing Parameters • Pulse Width Time - 30uS (minimum) to 50uS (maximum) • Pulse Interval Time - 1.8mS (minimum) to 2.2mS (maximum) March 2012 Page 15 of 19 © 2008-2012 HID Global Corporation. All rights reserved. -
Page 16: Clock-And-Data Interface
The data on these cards will be packed into the Track 2 format in segments of three bits, so the character does not exceed a seven. Page 16 of 19 March 2012 © 2008 - 2012 HID Global Corporation. All rights reserved. -
Page 17: Table 11: Data Timing - Timing Chart
1248p 1248p 1248p1248p 1248p1248p 1248p1248p1248p1248p 1248p1248p1248p 1248p 1248p 1248p 1248p1248p1248p <B> c000p Ccc0p CCC0p a000p dcb0p gfe0p jih0p mlk0p pon0p srq0p vut0p yxw0p BAz0p EDC0p HGF0p KJI0p <F><LRC> March 2012 Page 17 of 19 © 2008-2012 HID Global Corporation. All rights reserved. - Page 18 00000000000000000000000000 11010 10000 01000 11001 11111 00100 00000000000000...000000 4.2.6 Output Specification Vol = 0.8 V Voh = 3.5 V sink = 25 ma source = 5 ma Page 18 of 19 March 2012 © 2008 - 2012 HID Global Corporation. All rights reserved.
-
Page 19: Rs232 And Rs422 Card Message Specification (Send Mode Only)
ASCII encoded, hexadecimal digits. (i.e., the hex value is sent as an ASCII character 7 or the hex value is sent as an ASCII character field is reserved for use by HID Global Corporation. The valid values are through DDDDDDDDDD 0000000000 field is the transponders (Access Card) data.
