Summary of Contents for INNOVATEST DSAS

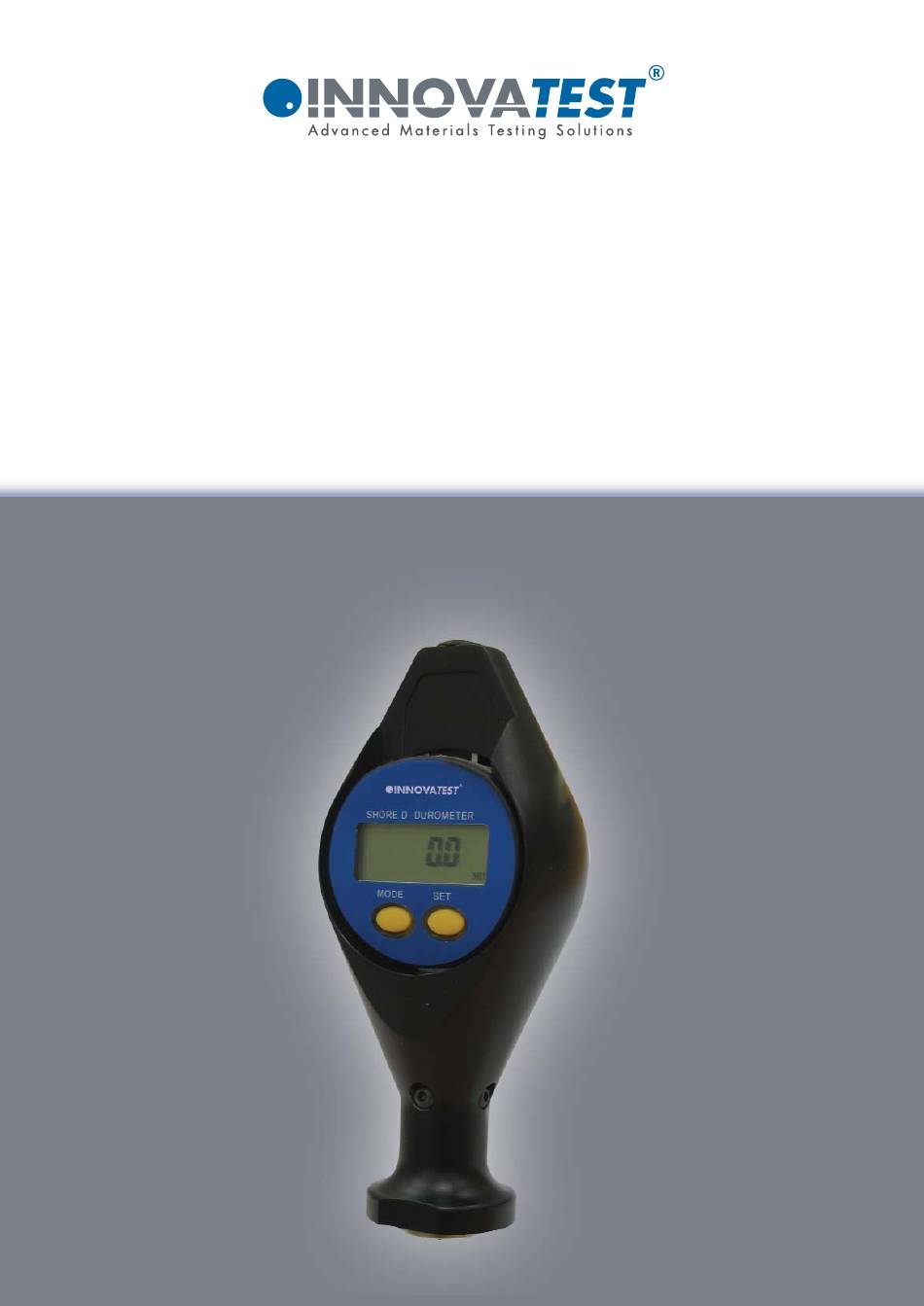

- Page 1 Manual DSAS/DSDS Digital Shore tester...
- Page 2 Changes in products and/or product specifications can emerge due to new technologies and continuous development. We reserve the right to change or modify specifications of products without prior notice. We recommend you to contact our sales office for up-to-date information. ©...
-
Page 3: Table Of Contents
INDEX Operation Testing procedure Using the supplied aluminium reference block The display Set mode Reference mode Freeze display Preset mode Battery changing Data transmission IP65 protection Warranty Bench stand Manual DSAS/DSDS... -
Page 4: Operation
This should be within ±2 units. Factory set calibration Please note: screw INNOVATEST Europe BV recommend that the unit is returned Important do annually for re-calibration. not adjust Manual DSAS/DSDS... -
Page 5: The Display
To switch off press SET and hold. Automatic sleep condition occurs after 4 hours (display off), press MODE or SET to wake up electronics. There are three electronic functions available: SET, REF I or PRESET To change between each mode, press MODE and hold Manual DSAS/DSDS... -
Page 6: Set Mode
If a calibration value is entered in the preset, pressing SET will display this value. Reference mode Press and hold MODE until REF I is displayed. Freeze display To freeze the display press SET briefly and HOLD will appear. To unfreeze the display, press SET briefly again. Manual DSAS/DSDS... -
Page 7: Preset Mode
Preset mode Press and hold MODE until PRESET appears Press MODE to move cursor along. Press SET to enter value or zero digit. Press MODE and hold to store value and return to SET. Manual DSAS/DSDS... -
Page 8: Battery Changing
Please note the IP65 protection rating for the instrument contained in these instructions applies to the electronics only. WARRANTY Except for battery exchange only the manufacturer has the ability to dismount the electronics. Any tampering will invalidate warranty. Manual DSAS/DSDS... -
Page 9: Bench Stand
Continue to apply pressure to the operating handle, lifting the mass upwards so as to apply the full mass to the tester. The reading can now be taken. Manual DSAS/DSDS... - Page 10 Manual DSAS/DSDS...
- Page 11 Manual DSAS/DSDS...
- Page 12 Tel : (+36-1) 424-1705, Mobil: (+36-30) 9349-611 Fax :(+36-1) 424-1704 Web: http://www.sidex.hu – E-mail: info@sidex.hu CORPORATE HEAD OFFICE MANUFACTURING, DISTRIBUTION & SERVICE INNOVATEST Europe BV Borgharenweg 140 6222 AA Maastricht (The Netherlands) Phone: +31 43 3520060 Fax: +31 43 3631168 Email: info@innovatest-europe.com...
