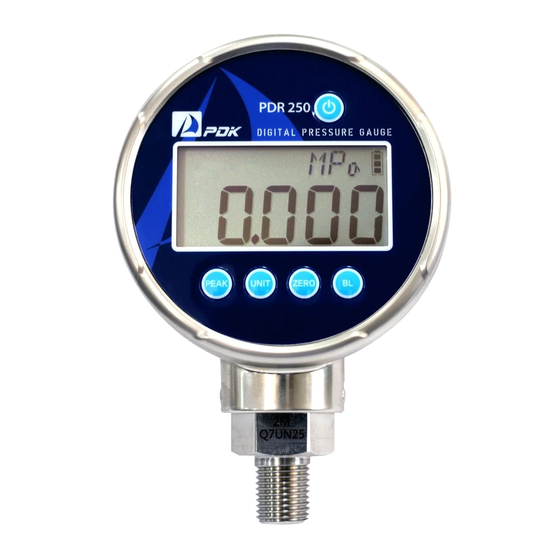

PDK PDR250 User Manual

Thanks for purchasing our product.
Check install place and connection prior to setting, caution the following
instruction.
Attention
1.
※ Please keep these instructions and review them before using this unit.
※ Please observe the cautions that follow;
Warning
If instructions are not followed exactly as written, serious injury may
occur.
Caution
Product may be damaged. or injury may occur if instructions are
not followed.
※The following is an explanation of the symbols used in the operation manual.
Caution: injuries or dangers might occur under certain conditions.
Caution
1. In case of Using this unit with machineries, which may affect seriously
life or properties, such as Nuclear power plant, medical equipment,
vehicle, train, airplane, combustion apparatus, entertainment or safety
device etc., it should be installed with failsafe device.
It may result in serious damages or injuries.
2. Do not use this unit at place where there is vibration, inflammable
gas, explosive gas, moisture, the direct ray of light and the radiant
heat.
It may cause an explosion or risk of fire.
3. Do not disjoin and repair.
It may cause a breakdown.
4. Do not repair or not inspect when power on and measuring input
applied.
It may result in serious damages or injuries.
Attention
1. Do not apply beyond rated pressure.
It may cause a damage to the product.
2. Must use the product within the specification of the product.
I
t may cause shorten the product life span or fires.
3. Do not inflow dust or wire dregs into the unit.
It may cause a damage to the product or fires.
4. Please connect properly after checking the polarity of measuring
terminals.
It may cause an explosion or fires.
5. Do not use in corrosive materials.
It may cause a damage to the product or shorten the product life span.
Handle with care.
2.
A. handling and installation.
1)Equip the pressure sensor with following our guideline in safety.
We can guarantee the quality of the product by the protective grade(IP) that is a
certificate for preventing from moisture, water or dust etc. If you need further
information, Please refer to catalogue or ask to the main office or agent.
2)Do not drop or shock the sensor.
It may cause a breakdown or malfunction.
3)Do not pull the cable strongly.
It may cause a breakdown or malfunction.
4)Do not insert a sharp-point like a needle into the pressure port.
It may cause a breakdown or malfunction.
5)Do not touch each setting key with a sharp-point.
It may cause a damage to the setting key.
6)Do not touch a diaphragm or a flush diaphragm(F/D)with hands or any
instruments.
It may cause a breakdown or malfunction.
7)Please install the sensor after getting rid of dust ,which remains in the
pressure line, or any
overpressure when you tighten the product.
It may cause a breakdown. Especially, in case of being
pressure line, it may generate beyond rated pressure just to conjoin the pressure port.
8)Please tighten a hexagon head in the pressure port with a wrench when
installing.
It may cause a damage to the product if you tighten other part to install.
9)There will be a possibility of being changed the zero output itself after
equipping the product to the pressure line.
Please arrange the zero out after installment.
B. Connection
1)Do not bend, pull or overload on the cable repeatedly.
It may cause a disconnection.
2)Fix the cable close to the sensor minimizing vibration in a surrounding
quaked place.
It may cause a breakdown or malfunction.
3)Do not operate wiring works while the line is live.
It may cause a breakdown or malfunction.
4)Do not use the same route as a power supply cord and a high tension
wire.
It may cause a breakdown or malfunction owing to noises from the power
supply cord and the high tension wire.
5)Please check electrical insulation.
Digital Pressure Gauge
pressurized materials, which
full of materials in the
PDR250 Users Manual
If electrical insulation occurred, the overvoltage or overcurrent were
applied
malfunction.
6) In case of using a switching power, please ground it to the FG terminal.
C. Use environment
1)Do not use the pressure sensor at the place where there is possibility
of the electrical surge.
If there were an equipment which generated a mass of electric surge or a lightning
surge surrounding a pressure sensor, there would be possibilities of heat deterioration
or destruction of the internal circuit.
2)Do not use the pressure sensor nearby the devices which generate
strong high frequency noise.
It may cause malfunction owing to inpouring the high frequency noises from the
devices which generate strong high frequency noise(a high frequency welding machine,
mass capacity of SCR controls etc.)
3)Be careful not to freeze the pressure materials.
It may cause a breakdown.
4)Please install orifices in front of the pressure port to protect a diaphragm
from a electrical surge. When installation at
water hammer where there is possibility of generating impact pressure.
5)Be careful not to change the surrounding temperature abruptly.
It may cause falling the accuracy slightly.
D. Repair and Inspection
1)Please do the inspection and the repairing the pressure sensor after
shutting the power supply off.
It may cause a breakdown or malfunction.
2)Please do the inspection and the repairing the pressure sensor periodically.
3)When operating the calibration for Zero/Span output, must do with
authorized instruments.
There will be possibilities of malfunction due to the calibration with unauthorized
instruments. Please ask this company how to do.
4)Do not use water or any organic solvent but a dry towel for the
cleaning.
Cleaning with an wetted material, it may cause a breakdown, malfunction or damages
to the surface and a label.

3. Forms

1 K=kPa, M=MPa
2 G=Gauge, A=Absolute, C=Compound
Port N=1/4" NPT, P=1/4" PF, C=1/4" PT,
H=9/16-18 UNF(F) (Only > 150 MPa)
Ex) PDR250-70MG-N
4.
Specification
Pressure Range
Accuracy
Thermal Effect on Zero
Thermal Effect on Span
Operating Temperature Range
Display
Excitation
Display Time
Special Functions
Proof Pressure
Burst Pressure
Pressure Port
may generate
Media-wetted
Materials
Protection
Weight

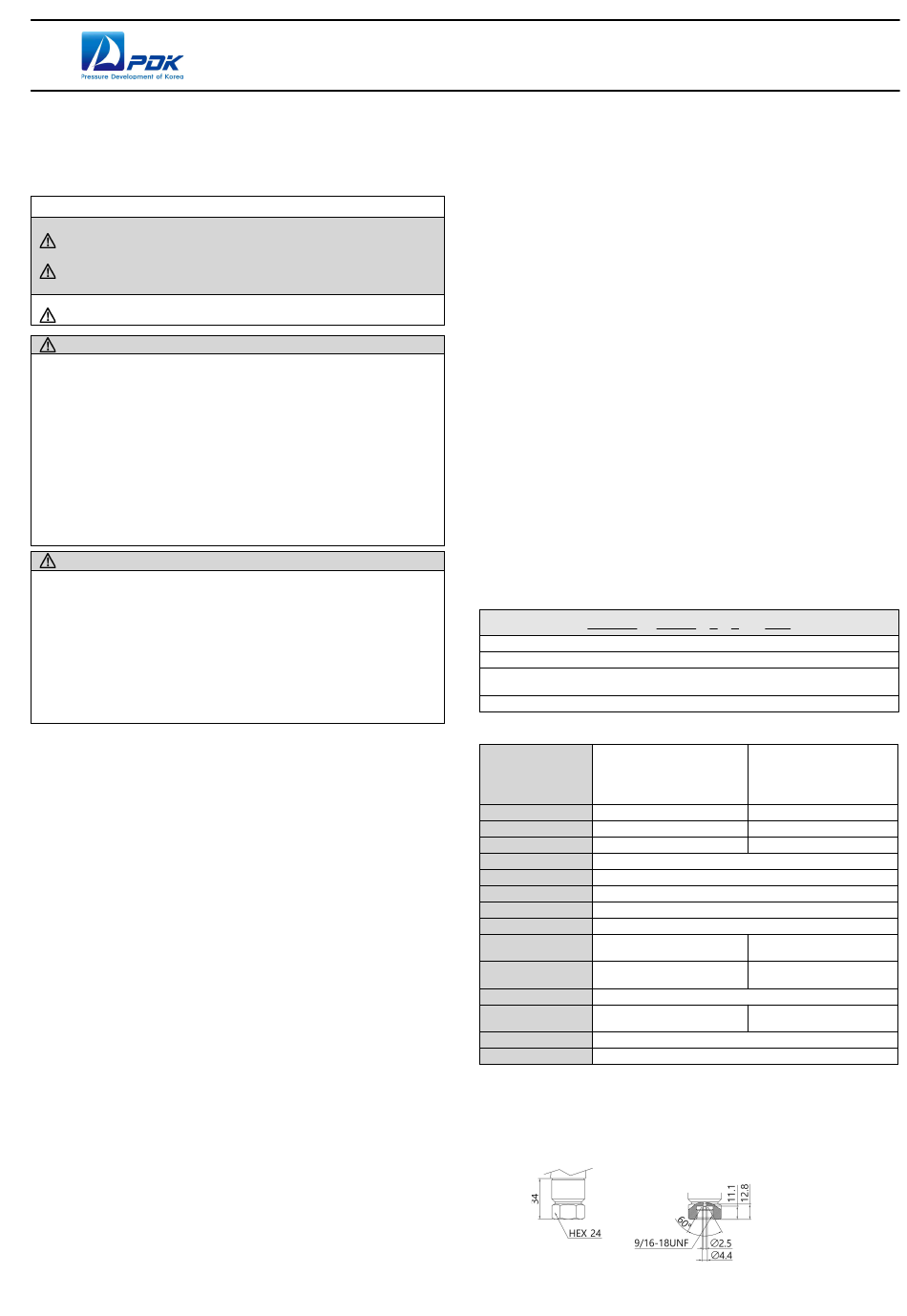

5. Dimension and the name of parts

A. Out Dimension
B. Pressure Port(>150MPa)
① Display : A board of the digits
to the pressure sensor. It may cause a breakdown or
PDR250 - R ange 1
Range 70 MPa, Gauge Pressure, 1/4" NPT
0~35kPa ... 70MPa(Gauge)
-100kPa~100 ... 3.5MPa(Gauge)
0~35kPa ... 70MPa(Absolute)
± 100 kPa ... 100 kPa
(Differential)
±0.25%FS ± 1digit
±0.03%FS /℃
±0.03%FS /℃
-20 ~ 70℃
4 1/2 Digits Backlight LCD
1, 2, 5, 7, 10 times/ Sec.
Peak, Auto power off, Auto Zero
1)
X3 or 140MPa
1)
X4 or 210MPa
G(PF)1/4", PT1/4", NPT1/4", 9/16"UNF Female(Only ＞150MPa)
SS316L
Approx. 350g
the point such as on the
2 - Port
0~71 ... 500MPa(Gauge)
±0.5%FS ± 1digit
±0.05%FS /℃
±0.05%FS /℃
1.5V
1)
≤150MPa : X1.5 or 150MPa
1)
＞150MPa : X1.5 or 500MPa
1)
≤150MPa : X2 or 150MPa
1)
＞150MPa : X2 or 600MPa
SS316L, Ti 87%
IP65
