PDK PDR100 User Manual

Thank you for purchasing this product.
1. Special Conditions for Safe Use
Warning identifies conditions and procedures that are
dangerous to the user.
Caution identifies conditions and procedures that can cause
damage to the Product or the equipment under test.
Warning
To prevent injury, only assemble and operate high-pressure
systems if you know the correct safety procedures.
High-pressure liquids and gases are hazardous and the energy
from them can be released without warning.
To prevent possible electrical shock, fire, or personal injury:
• Read all safety Information before you use the Product.
• Use the Product only as specified, or the protection
supplied by the Product can be compromised.
• Do not use the Product around explosive gas, vapor, or in
damp or wet environments.
• Do not use and disable the Product if it is damaged.
• Remove the batteries if the Product is not used for an
extended period of time, or if stored in temperatures above
70 ℃. If the batteries are not removed, battery leakage can
damage the Product.
• Replace the batteries when the low battery indicator shows
to prevent incorrect measurements.
• The battery door must be closed and locked before you
operate the Product.
Caution
To prevent possible damage to Product or to equipment under
test:
• The display flicker when the pressure source is above the
Product range limit. The pressure source must immediately
be removed.
• Do not apply more than the maximum torque specified.
Maximum torque specified is 20 Nm = 15 ft-lb.
2. Special Conditions for Safe Use
A. Misuse
If the Product is exposed to overpressure or sudden
physical shock (such as being dropped) examine it for
damage that can cause a safety issue. If necessary, send
the Product for examination to PDK. Refer to below to
contact PDK.
Warning
To prevent possible fire, or personal injury:
• Do not use the Product with flammable substances.
• The Product is intended for installation only in locations with
protection against the entry of solid unwanted objects or water
that can compromise safety.
B. Maintenance
How to Clean the Product
Clean the Product with a soft cloth dampened with water or water
and weak soap.
Caution
To prevent possible damage to the Product, do not use solvents or
abrasive cleansers.
Caution
For safe operation and maintenance of the product:
• Repair the Product before use if the battery leaks.
• Remove batteries to prevent battery leakage and damage to the
Product if it is not used for an extended period.
• Be sure that the battery polarity is correct to prevent battery
leakage.
• Have an approved technician repair the Product.

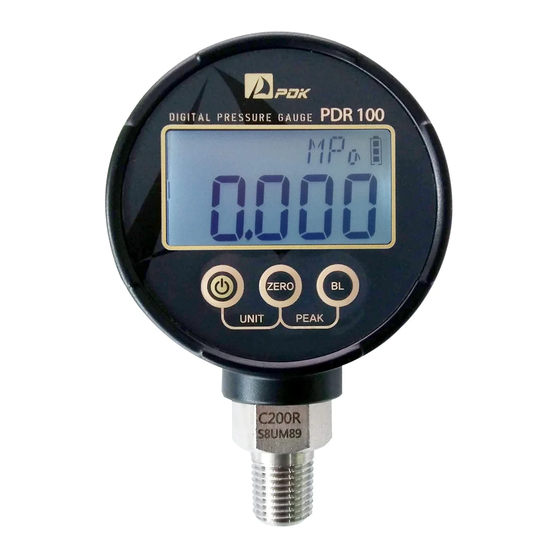

Digital Pressure Gauge
PDR100 Users Manual
3. Model Information
PD R100 - Range
Range 0 to 10 MPa (User defined Range)
1 K=kPa, M=MPa
2 G=Gauge
Port C=PT 1/4", P=PF 1/4"
Ex) PDR100-10MG-C Range 10 MPa, Gauge Pressure, 1/4" PT
4. Specification
Pressure Range
Accuracy
Thermal Effect on Zero
Thermal Effect on Span
Compensation Range
Workable Range
Display
Power Requirement
Display Speed
Special Function
Allowable Pressure
Burst pressure
Pressure Port
Material of Pressure Port
Weight

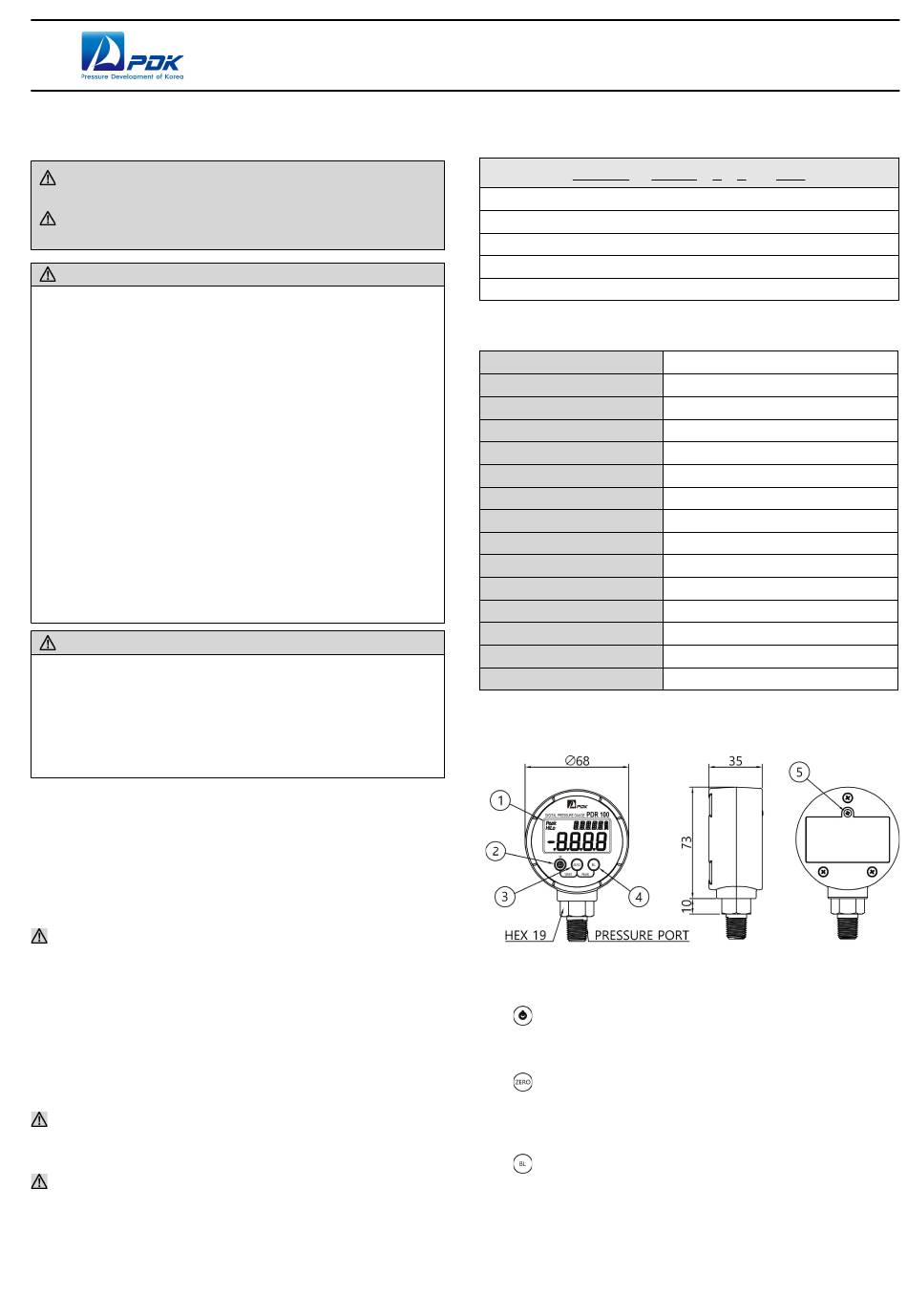

5. Size and Front-Panel Features
① Display : Digital pressure display
②
: Power / Menu key
- Turn On/Off the power
- Push the key for 2 seconds to go to Menu mode.
③
: Zero / Up key
- Push the key for 2 seconds set zero.
- Clear Peak(Hi/Low) values in Peak mode.
- Using Up key when menu set.
④
: Display backlight/ Enter key
- Display backlight turn On/Off.
- Using Enter key when menu set.
⑤ Captive screw on the battery door :
Use a Phillips screwdriver to loosen the captive screw on the
battery door then remove the battery door to replace battery.
1 2 - Port
0 ~ 100 kPa ... 10 MPa (Gauge)
±0.5%FS ± 1digit
±0.05%FS /℃
±0.05%FS /℃
-10 ~ 50℃
-20 ~ 70℃
±2000 Backlight LCD
9V Battery 1 ea
1, 2, 5, 7, times/ second
Peak, Auto power off, Auto Zero
X1.5
X2
R(PT)1/4", G(PF)1/4"
SS316L, VITION
160g
