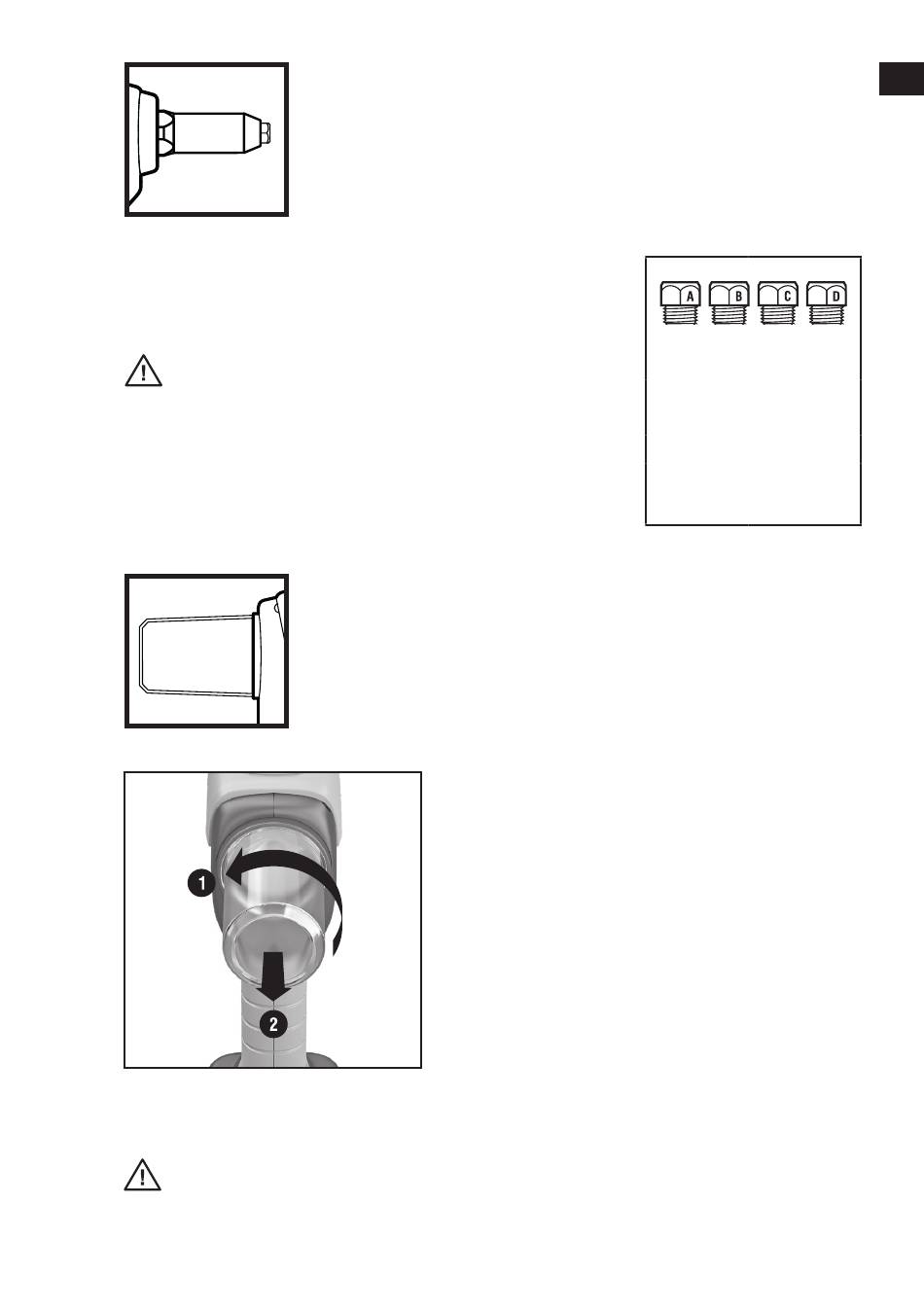

RIVETING
1- Choose the nosepiece according to the diameter of the rivet to
set. Please refer to the adjacent table to find the right nosepiece.
CAUTION
the use of the wrong nosepiece can damage the tool.
2 - Place the rivet mandrel into the nosepiece.
3 - Place the rivet body in the hole of the assembling part.
4 - Operate the trigger until the rivet mandrel breaks.
CAUTION
A full mandrel collector can cause a jamming of the rivet mandrel inside the tool and
result in a tool malfunction.
1
OPERATING
INSTRUCTIONS
2
MANDREL
CONTAINER
Make sure that the mandrel container has enough
space to receive the mandrel of the rivet in setting.
The mandrel container can be easily emptied :
1. Turn the mandrel container
2. Remove the mandrel container and
3. Put the mandrel container in place on
4. Turn the mandrel container clockwise.
Nosepiece
A
B
C
D
counterclockwise.
You must hear a «click»
empty it in a proper container.
the tool .
You must hear a «click»
NOSEPIECES
Rivet Ø (mm)
Ø2.4
Ø3.0/3.2
Ø4.0
Ø4.8/5.0
ELEMENT FIVE - User Manual
EN
FR
PL
CZ
IT
• 5
