MWTD-S8
Digital Input 863MHz
Single Channel Transmitter
Operation Manual
.man_MWTDS8_V2
www.myeclubtv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWTD-S8 and is the answer not in the manual?

Questions and answers

Related Manuals for MYE MWTD-S8

Summary of Contents for MYE MWTD-S8

  • Page 1 MWTD-S8 Digital Input 863MHz Single Channel Transmitter Operation Manual .man_MWTDS8_V2 www.myeclubtv.com...

  • Page 2: Table Of Contents

    WARRANTY…………………………………………….…….… DESCRIPTION The MWTD-S8 transmitter takes the input of an optical or analog audio signal and allows the user to transmit onto any one of 13 possible MYE Entertainment 800MHz frequencies or 12 Cardio Theater / Enercise xTV frequencies or 8 MYE / Audeon frequencies. The signal can then be received on MYE Entertainment or other compatible fitness entertainment receivers.

  • Page 3: Mwtd-S8 Orientation

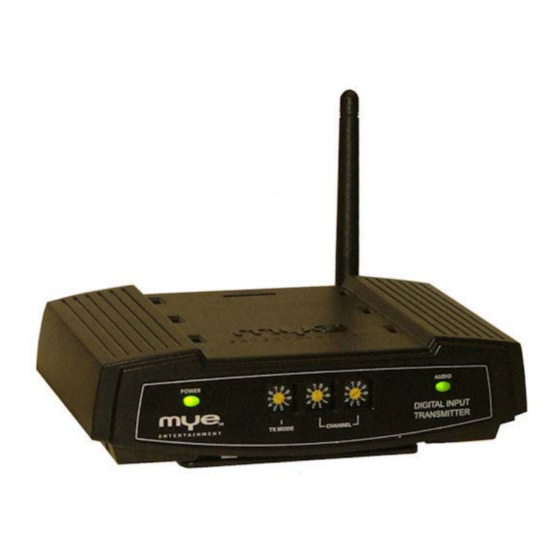

    MWTD-S8 Orientation ANTENNA TRANSMITTER FRONT VIEW AUDIO and ALC (AUTOMATIC LEVEL CONTROL) POWER INDICATOR LIGHT INDICATOR LIGHT TRANSMITTER MODE SELECT TRANSMITTER CHANNEL SELECT TRANSMITTER REAR VIEW ANALOG AUDIO INPUT ANTENNA CONNECTION (ANTENNA REMOVED) DIGITAL OPTICAL AUDIO INPUT POWER IN (9VDC)

  • Page 4: Safety Precautions

    EXAMPLE: To set your transmitter to transmit on MYE Entertainment channel 3: 1) To set your transmitter to the MYE Entertainment frequencies, turn the “TX MODE” dial to “1.” 2) To set the transmitter to the channel 3, turn the left “CHANNEL” rotary tuning switch to the...

  • Page 5: Connecting The Transmitter

    2. Plug the other end of the audio cable into the corresponding jack on the MWTD-S8 transmitter. 3. Insert the DC power plug into the DC power jack on the MWTD-S8 and plug the AC power adapter into an AC outlet. The power light on the MWTD-S8 will blink “GREEN” once. This verifies the unit is now ON.

  • Page 6: Standy-By Mode

    Then plug in the MWTD-S8 power supply to the transmitter. 1. When the audio signal is being received by the MWTD-S8 transmitter at an acceptable level the AUDIO INDICATOR LIGHT will turn GREEN. Sources with “manual variable audio” will require you to adjust audio level inputting to the transmitter.

  • Page 7: Mwtd-S8 Mounting Bracket

    MWTD-S8 Mounting Bracket The MWTD-S8 comes with a Mounting Bracket that allows for easy wall, ceiling or under-shelf mounting of the transmitter. Four holes in the bracket give access for screws or nylon cable ties. The mounting bracket SNAPS into either the TOP or BOTTOM of the MWTD-S8 giving the transmitter a high level of adaptability and solid positioning in nearly all mounting scenarios.

  • Page 8: Warranty

    THIS WARRANTY IS VALID ONLY IN ACCORDANCE WITH THE FOLLOWING CONDITIONS: THE WARRANTY APPLIES TO THE MYE ENTERTAINMENT PRODUCT ONLY 1) WHILE IT REMAINS IN THE POSSESSION OF THE ORIGINAL PURCHASER AND PROOF OF PURCHASE IS DEMONSTRATED. 2) IT HAS NOT BEEN SUBJECT TO ACCIDENT,...
  • Page 9 THOSE WARRANTIES THEREAFTER. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. MYE ENTERTAINMENT ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER OBLIGATIONS OR LIABILITIES, EXPRESS OR IMPLIED, ARISING BY LAW...
