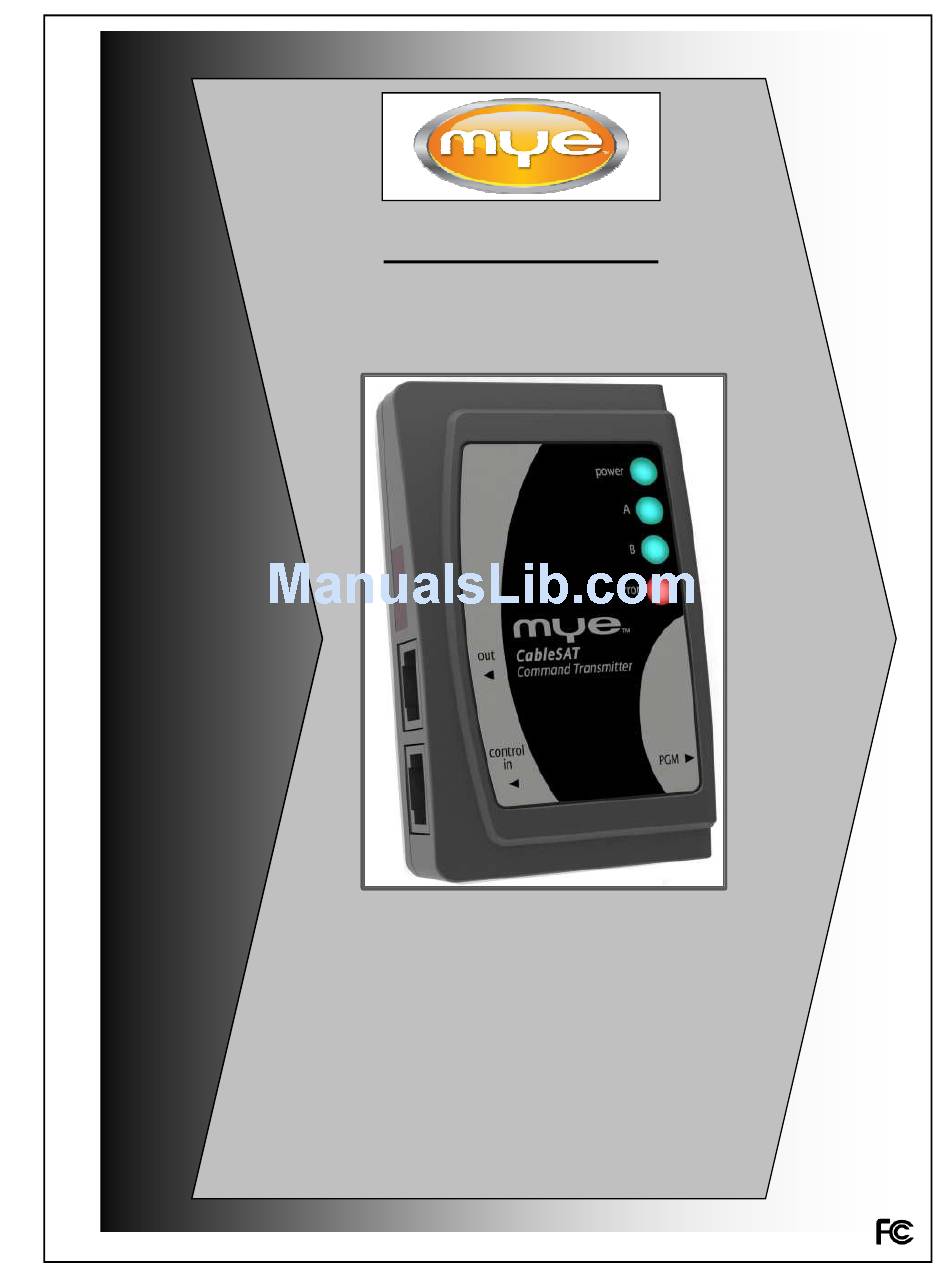

- Page 1 MWCS-AT9-LFA MYE 900MHz (Wireless) CableSAT for Life Fitness MYE Entertainment 1-661-964-0217 www.myeclubtv.com All Rights Reserved 2016...
-
Page 2: Transmitter Installation
2) Plug the TV’s controller cable into the Molex end of the MYE cable MWC-LF-IFC1. 3) Plug the RJ45 end of the MYE cable MWC-LF-IFC1 into the CableSAT transmitter “Control In.” 4) Plug the MYE cable MWC-LF-IFC2 into the Life Fitness TV controller jack. -
Page 3: Receiver Installation
Receiver Installation Use MWCS-C3-S straight cable to run power from the MACA-9V power supply to the CableSAT receiver’s power IN. Connecting the receiver to the SET TOP BOX can be achieved by ONE of the two options. OPTION 1: Plug the MWCS-IR emitter cable into the receiver and attach the IR !!!!!.emitter to the Set Top Box IR window. - Page 4 ***Once the receiver is installed you can select your Set Top Box (below). Unit is shipped in AT&T mode. Match the lit LEDS to your Set Top Box type. 1) Start with the CableSAT Receiver power disconnected. 2) Using a pen or paperclip, press and hold the “PGM” switch. 3) Connect power to CableSAT Command Receiver.
- Page 5 WARRANTIES GIVEN ABOVE FOR THOSE SAME PARTS. MYE HEREBY DISCLAIMS AND EXCLUDES THOSE WARRANTIES THEREAFTER. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. MYE ENTERTAINMENT ALSO...
