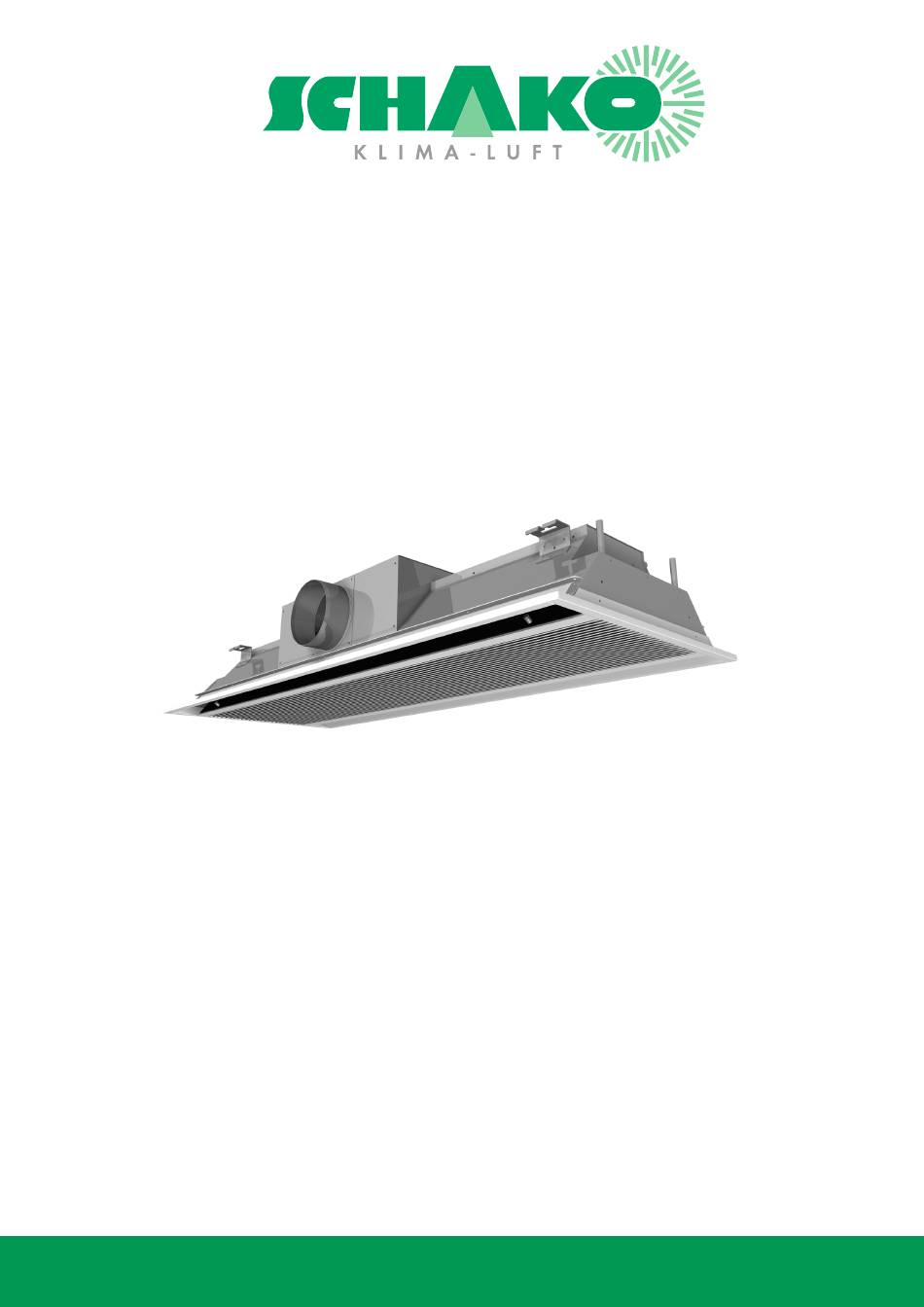

- Page 1 Installation, Mounting and Maintenance DISA-601 Ferdinand Schad KG Steigstraße 25-27 D-78600 Kolbingen Telephone +49 (0) 74 63 - 980 - 0 Fax +49 (0) 74 63 - 980 - 200 info@schako.de www.schako.de...
-
Page 2: Table Of Contents
Installation, Mounting and Maintenance DISA-601 Contents Safety instructions ..........................3 General information ................................... 3 Warranty ............................3 Recycling ............................3 General information ..........................4 Identification of the delivered model ............................4 Function ..................................... 4 Installation and commissioning ........................ 5 Operating conditions .................................. 5 Material reception .................................. -
Page 3: Safety Instructions
- Do not change any control or safety elements without prior approval by the manufacturer or the local sales office. SCHAKO shall not give any warranty for damage resulting from: - Improper use caused by ignoring the instructions given in this manual - Non-observance of the operating conditions of the device. -
Page 4: General Information
Identification of the delivered model ondary air in the room (2), which is cooled or heated via the reg- The ceiling induction diffuser type DISA-601 is available in four ister (4). different nozzle configurations: B, C, D and E, and different de- The primary air is mixed with the secondary air. -
Page 5: Installation And Commissioning
The weight must not Model / Modelo / Modell DISA-601-H-SR-B-592-900-1200-M-WS1-H-AS1-123-2E rest on the water connections. SCHAKO cannot be held liable for damage to the Order nr. / Nº Pedido / Auftragsnr: 2198/09 Date / Fecha /Datum:... -
Page 6: Installation

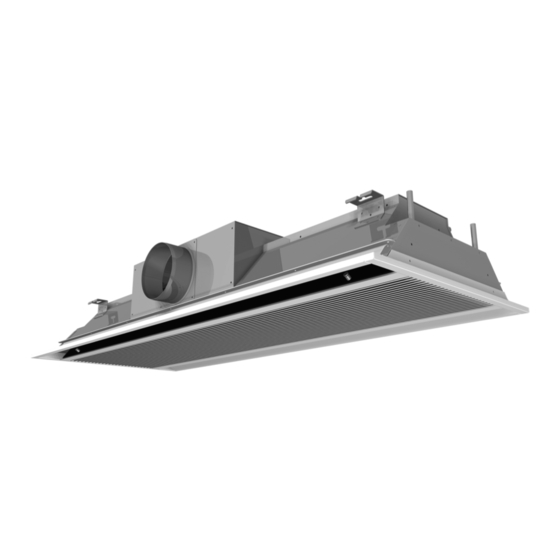

Installation, Mounting and Maintenance DISA-601 Installation The ceiling induction diffuser type DISA-601 is particularly suit- able for horizontal installation in low false ceiling heights. The devices must not be installed in places with extreme moisture (e.g. laundries or swimming pools), aggressive media, with high dust formation, outdoors or in places subject to explosion hazards. -
Page 7: Connecting The Air Ducts
Installation, Mounting and Maintenance DISA-601 The ceiling induction diffusers type DISA-601 are induction devices for "dry cooling". To avoid con- densates, the water inlet temperature should be higher than the dew point. Amount of water of the registers Water capacity (litres) -
Page 8: Adjustment Of The Air Deflection Blades
Folding down the secondary air grille The entire DISA-601 is equipped with a series of safety locks which allow the grille to be folded down via a rotating mecha- nism on one of the profiles for safe execution of maintenance. -
Page 9: Air Ducts And Plenum Box
- Please do not use any scouring agents for cleaning since these materials may impair or damage the DISA-601 (gal- vanised steel, aluminium and copper) and the surface coatings (paints and anodised surfaces). -
Page 10: Checking The Primary Volumetric Flow
Installation, Mounting and Maintenance DISA-601 Checking the primary volumetric flow The supplied primary volumetric flow can be simply checked by checking the static pressure with a Pa meter and the measuring tube available from us as accessory. To this end, one end of the measuring tube fitted with a rubber... -
Page 11: Troubleshooting
Installation, Mounting and Maintenance DISA-601 Nozzle configuration D Nozzle configuration E ' P (Pa.) ' P (Pa.) 1200-E 2100-D 2400-D 1500-E 2700-D 1800-E 3000-D 2100-E 2400-E 2700-E 3000-E 0 20 40 60 80 100 Vzu (m 0 20 40 60 80 100...
