ENERVEX ADC150 Product Information

ENERVEX
ADC150 FAN CONTROL
3912050 06.17
Use

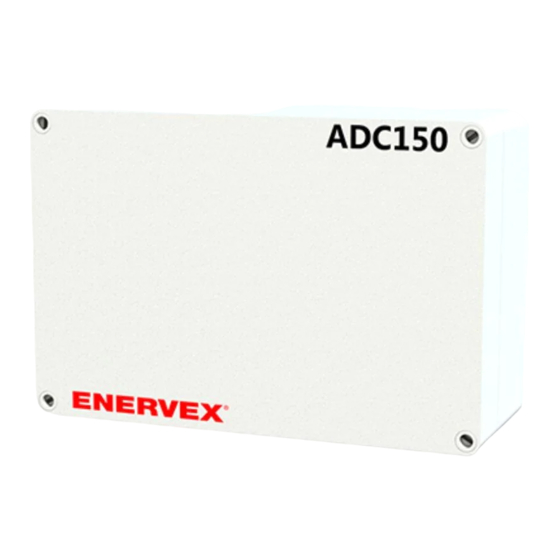

The ENERVEX ADC150 is a Modulating Fan Control used with up to
2 appliances to monitor and maintain a constant draft or pressure
in a chimney or duct. The ADC150 can be used with models RS,
RSHT, and GSV fans. It can control the fan speed directly or via a
Variable Frequency Drive (VFD, sold separately).
The ADC150 is typically used to control the draft of a gas-fired,
sealed fireplace or water heaters.
Description
The ADC150 monitors the draft in a chimney system via a
connection to a pressure transducer (XTP) attached to the chimney,
and maintains the draft by modulating the fan speed. It provides a
10-120V AC power to single phase fans and 0-10V DC control signal
to control 3-phase fans via a variable frequency drive.
The control has an integrated safety system that assures the heating
appliance(s) is shut down in case of insufficient draft after 15-180
seconds (user adjustable). The ADC150 has an integrated damper
relay that works with ENERVEX MFD (Mechanical Fireplace Damper)
to automatically open the damper prior to fan initialization and close
the damper after the appliance shuts down. End-switches in the
damper actuator wired to the ADC150 ensure the damper must be
fully open prior to allowing the appliance to operate. The control
also features a post purge function (3 min) to evacuate the chimney
system of residual flue gases after the appliance shuts down.
Material
The enclosure is made of NEMA 1 rated ABS plastic.
Standard Equipment
• ADC150 Control Box
• XTP Pressure Transducer
• Stack Probe
• 6' Silicone Tubing
Specifications are subject to change without notice.
ENERVEX Inc.
1685 Bluegrass Lakes Parkway
Alpharetta, GA 30004
USA
P: 770.587.3238
F: 770.587.4731
T: 800.255.2923
info@enervex.com
www.enervex.com
Product Information
Listings
The ADC150 Fan Control is ETL Listed in the U.S. and Canada:
• UL 508 Standard for Industrial Control Equipment (17th Ed.)
• CSA C22.2 No. 14-05 - Standard for Industrial Control Equipment
Warranty
2-Year Factory Warranty. Complete warranty conditions are available
from ENERVEX Inc.
