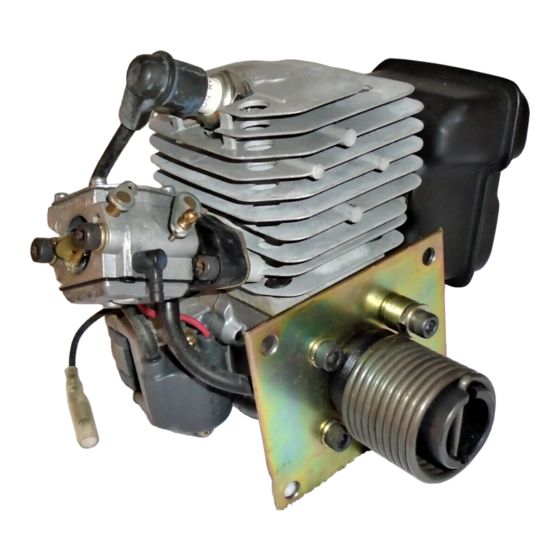

Zenoah G450PU Owner's Manual

Zenoah G450PU Owner's Manual

Advertisement

Quick Links

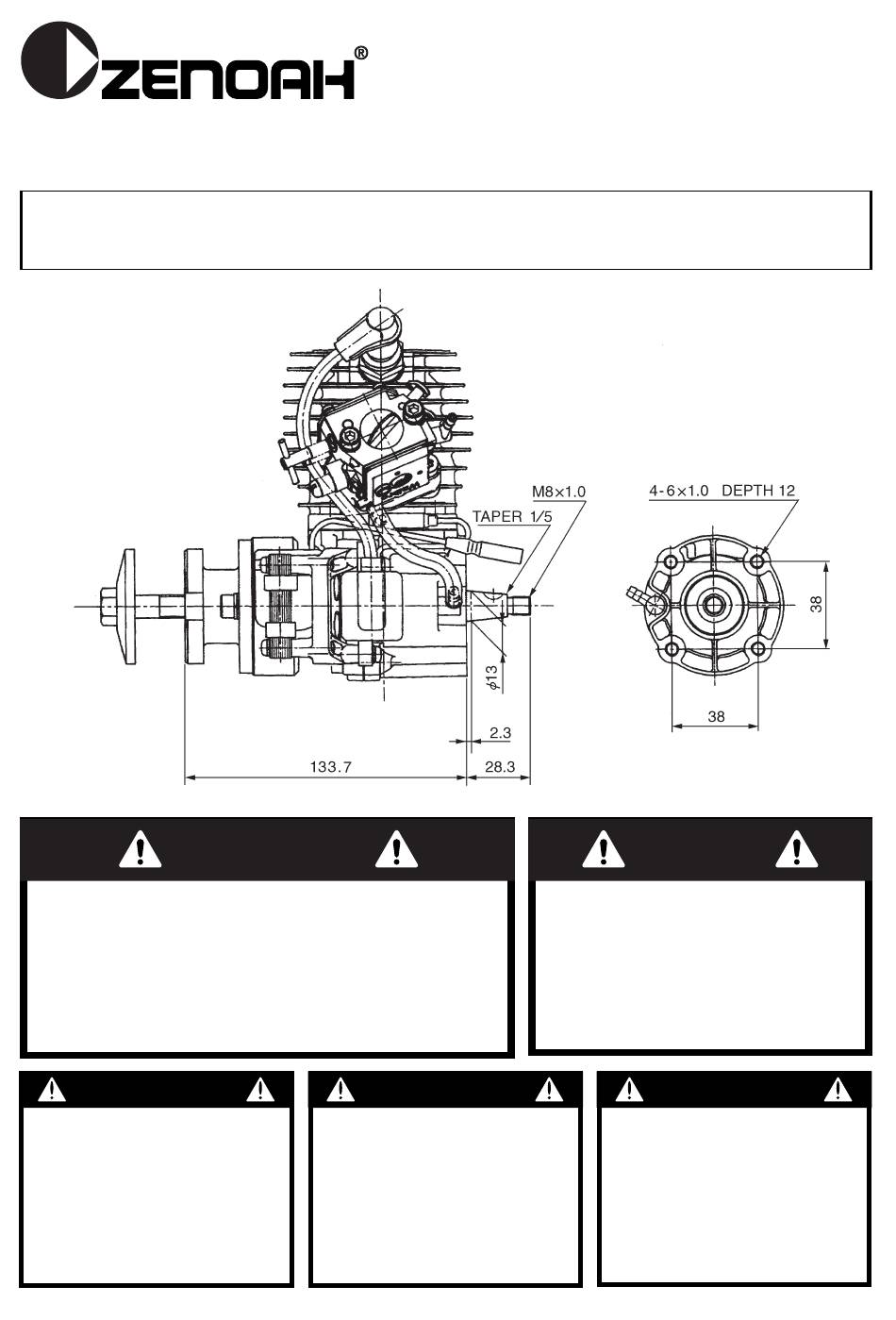

OWNER'S MANUAL
MODEL:
WARNING
• Do not modify any parts of the engine.
• This engine is designed to be used to Radio
controlled products.
• In case any modification by customer,
ZENOAH shall not bear any responsibility from
the damage caused by such modification.
• Keep ignition system well maintained.
WARNING
The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects or
other reproductive harm.
G450PU/ G450PU-1
AVERTISSEMENT
Les échappements du moteur de
ce produit contiennent des
produits chimiques connus par
l'Etat de Californie comme étant
responsables de cancers,
d'anomalies congénitales et
d'autres atteintes à l'appareil
reproducteur.
114 06 34-26 (1808)
警 告
この製品はラジオコントロール
飛行機用に設計されています。
改 造、組み替えされて使用され
た場合当社は一切の責任を負い
ません。
特に電装品は常に点検、整備し
てご使用ください。
ADVERTENCIA
Los gases de escape del motor de
este producto contienen
sustancias químicas conocidas
por el Estado de California como
causantes de cáncer,
malformaciones en recién nacidos
y otros problemas de
reproducción.
January 2010

Advertisement

loading
Need help?

Need help?

Do you have a question about the G450PU and is the answer not in the manual?

Questions and answers

Summary of Contents for Zenoah G450PU

  • Page 1 • This engine is designed to be used to Radio controlled products. ● 改 造、組み替えされて使用され た場合当社は一切の責任を負い • In case any modification by customer, ません。 ZENOAH shall not bear any responsibility from the damage caused by such modification. ● 特に電装品は常に点検、整備し てご使用ください。 • Keep ignition system well maintained. WARNING...
  • Page 2 1. Safety Precautions • This manual describes the engine. For its mounting and control, see the instruction manual for a model plane. • This engine is designed for use on the model plane. If it is used for any other purpose, we cannot be responsible for its reliability or safety.
  • Page 3 [ NOTE ] 1. Be sure to use a gasoline-resistant fuel piping. (Do not use any silicon rubber tube). 2. Never use any alcohol fuel or alcohol added fuel, or the rubber part in the carburetor will be damaged. 5. Operation Hand flip start Since the engine is equipped with the ultra compact C.D.I.
  • Page 4 open, a great thrusting force is produced, which is very dangerous). • Be sure to wear a thick glove when flipping the propeller. Use all fingers, except thumb, for the flipping operation. RED LEAD How to Stop the Engine For stopping the engine, the black lead wire from the coil should be grounded to the BLACK KILL...
  • Page 5 1) Daily check (before starting) • Leakage, damage, crack • Muffler fixing bolts (torque, crack) • Propeller hub (transformation, fixing bolts/nut) (P/N:2629-51410 or 2629-91510, 3544-11510 and 1100-43231) • Rotor (transformation, play, airgap) 2) Every 25 hours check • Spark plug (gap, cleaning) •...
  • Page 6 10. Specifications Model ............G450PU · G450PU-1 Type ............Air cooled two stroke cycle gasoline engine Displacement ...........45.0cc (2.74cu. in) Bore x Stroke ...........43mm x 31mm (1.69 in x 1.22 in) Compression ratio ........7.9 : 1 Maximum Output (NET)......2.21kW Operating engine speed ......2000 ~ 10000rpm Weight .............2.1kg...
  • Page 7 01252-30550 Bolt M5xL75 0290-21025 Washer 01601-20513 Washer 35-1 2629-51111 Hub for G450PU 01641-20508 Washer 35-2 2628-51101 Hub for G450PU-1 2629-91510 Bolt L50 04025-00312 • Pin for G450PU-1 2628-91110 Mount  ✽  3544-11510 Bolt 01252-30614 Bolt for G450PU-1  2629-51310 Washer...
  • Page 8: Warranty Terms

    5) Exempt from Warranty Zenoah shall not warrant this engine even if the fault has been caused during the period of terms of Warranty, in case that. 1. Any faults, failures caused from neglect of proper operation and maintenance described in OWNER’S MANUAL.

This manual is also suitable for:

G450pu-1
