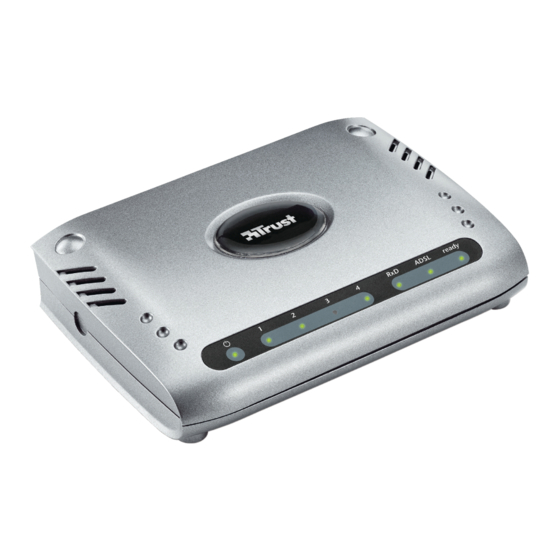

MD-4100 ADSL MODEM-ROUTER
Product information
B
C
A
D
E
A: Power indicator
B: LAN port 1 indicator
C: LAN port 2 indicator
D: LAN port 3 indicator
E: LAN port 4 indicator
F: ADSL data indicator
Connect modem
ADSL
1
F
G
H
G: ADSL connection indicator
H: Modem ready indicator
I: ADSL line connection
J: Reset switch
K: LAN port 1
L: LAN port 2
1
J
K L
I
M
M: LAN port 3
N: LAN port 4
O: Power connector
P: Power switch
Connect ADSL cable to ADSL line connection 'I'
UK
N
O
P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD-4100 and is the answer not in the manual?

Questions and answers

Related Manuals for Trust MD-4100

Summary of Contents for Trust MD-4100

  • Page 1 MD-4100 ADSL MODEM-ROUTER Product information A: Power indicator G: ADSL connection indicator M: LAN port 3 B: LAN port 1 indicator H: Modem ready indicator N: LAN port 4 C: LAN port 2 indicator I: ADSL line connection O: Power connector...
  • Page 2 MD-4100 ADSL MODEM-ROUTER Connect a splitter/filter (not included) to telephone line Connect modem to splitter/filter Connect phone to splitter/filter Splitter/filter only needed for correct phone functionality POWER Connect power adapter to Power connector ’O’ Plug power adapter into the wall outlet.
  • Page 3 MD-4100 ADSL MODEM-ROUTER ____ Power indicator (A) will lid continuously ADSL connection indicator flashing - - - - Wait max. 5 minutes for ADSL indicator to lid continuously. If it keeps blinking, the ADSL line is ____ not properly connected or the ADSL service is not (yet) activated.
  • Page 4 MD-4100 ADSL MODEM-ROUTER Configure modem Open an Internet browser on the computer and go to site http://10.0.0.2 ERROR: Check Appendix A Fill in username and password Default : 1. Userna me = admin 2. Password = epicrout 3. OK...
  • Page 5 MD-4100 ADSL MODEM-ROUTER ‘Automatic Setup’ Select your Country If country not listed follow steps appendix C Select your ISP If ISP not listed follow steps appendix C...
  • Page 6 MD-4100 ADSL MODEM-ROUTER Depending on ISP or setting this window will appear. When there is no field for username or password 1. Fill in internet account ‘username’ and 2x ‘password’ 2. ‘Save Setting’ For correct username and password check ISP information ‘Save Setting’...
  • Page 7 MD-4100 ADSL MODEM-ROUTER Change modem username/password It is recommended to change the modem username and password This is not the username and password from your ISP account 1. ‘Advanced Setup’ 2. ‘ADMIN PRIVILEGE’ 3. ‘Admin Password Configuration’ 1. Specify current password (default: ‘epicrouter’)
  • Page 8 MD-4100 ADSL MODEM-ROUTER 1. Specify new username 2. Specify new password 3. OK You entered the modem configuration menu again Browse Internet Open Internet Explorer Enter a website (example) www.trust.com Modem is working and connected to internet. If no page appears check out appendix B...

  • Page 9: Appendix A: Check Network Settings Windows Xp

    MD-4100 ADSL MODEM-ROUTER Appendix A: Check network settings Windows XP Set up your network card for automatic TCP/IP address assignment: Windows XP Click ‘Start’. Select ‘Settings’. Choose ‘Network Connection’. Right-click the network adapter connected to the modem. Choose ‘Properties’. Click the ‘Internet Protocol’ item.
  • Page 10 MD-4100 ADSL MODEM-ROUTER Appendix A: Check network settings Windows 2000 Set up your network card to TCP/IP address Windows 2000 assignment: Right click ‘My Network Places’. Choose ‘Properties’. Right-click the network adapter connected to the modem. Choose ‘Properties’. Click TCP-IP item Click ‘Properties’.
  • Page 11 MD-4100 ADSL MODEM-ROUTER...
  • Page 12 MD-4100 ADSL MODEM-ROUTER Appendix A: Check network settings Windows 98 / Me Set up your network card for automatic Windows 98 / Me TCP/IP address assignment: Right click ‘Network Neighbourhood’. Choose ‘Properties’. Click TCP-IP item Click ‘Properties’. Click ‘IP Address’ Tab Set address to ‘Automatic’...
  • Page 13 MD-4100 ADSL MODEM-ROUTER...

  • Page 14: Appendix B: Check Internet Explorer (Windows Xp, 2000, Me, 98)

    MD-4100 ADSL MODEM-ROUTER Appendix B: Check Internet Explorer (Windows XP, 2000, Me, 98) Open Internet Explorer follow these steps: Open Tools -> ‘Internet Options’. Click the ‘Connections’ tab. Click ‘Never Dial a connection’. Click on ‘LAN Settings’. Switch off all Proxy setting options.

  • Page 15: Appendix C: Setting Up Non-Listed Isp

    MD-4100 ADSL MODEM-ROUTER Appendix C: setting up non-listed ISP Use this option only when your provider is not listed or you have a non-standard service from your provider. You need to know all the details about your connection to complete. Call your internet service provider when needed.

  • Page 16: Appendix D: Reset Modem

    Warranty & copyright • This product has a two-year manufacturer's warranty which is effective from the date of purchase. For more information see www.trust.com/warranty • Reproduction of this manual or any part of it is prohibited without permission from Trust International B.V.
