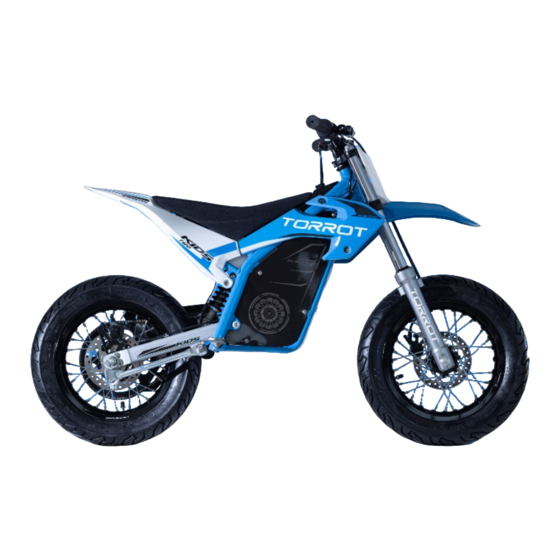

Related Manuals for Torrot Trial ONE
Summary of Contents for Torrot Trial ONE
- Page 2 Total or partial reprinting and reproduction of any kind without written permission from the intellectual property own er is prohibited. TORROT ELECTRIC EUROPA, S.A. reserves the right, without prior notice and without being required to state the grounds, to change the technical content or performance of the products.

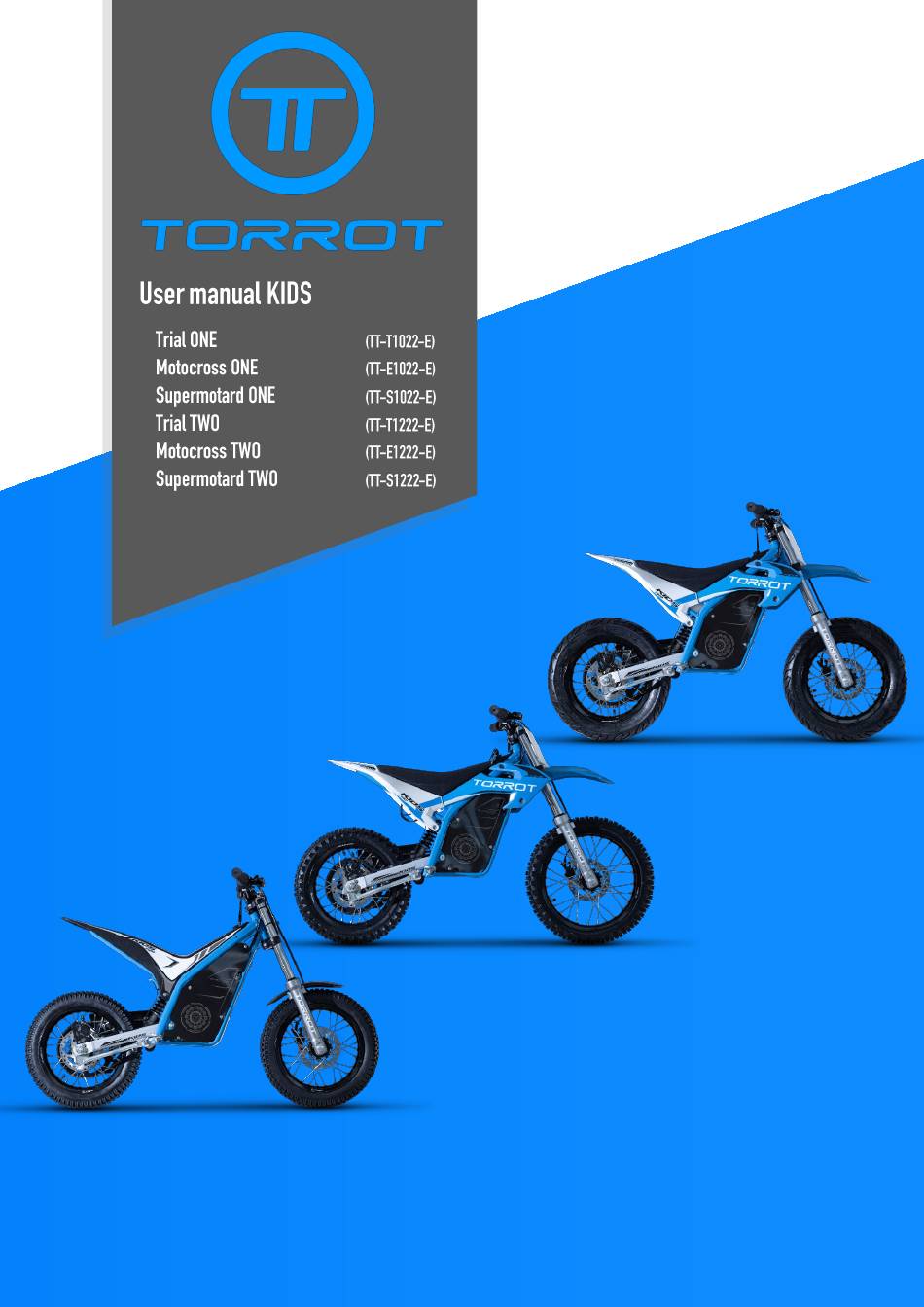

- Page 3 Workshop Manual. By choosing one of the new TORROT KIDS, you have just joined the TORROT family and, as a user of a historic brand, you deserve the distinguished treatment we will offer you, both in the explanations we give you in this manual and in our post-sale relationship.
- Page 7 VEHICLE’S SERIAL NUMBER: The TORROT KIDS has Bluetooth connectivity via a smartphone application. The section Connect using the Bluetooth APP explains the operation of this device and of the application.
- Page 8 Keep this manual in an accessible place for future queries. This manual is also part of the vehicle, so it should be provided along with the vehicle if it is being sold. You can also download this manual for free on our website: www.torrot.com. All instructions, notices and warnings in this manual must be heeded.
- Page 9 The vehicle contains notice and warning pictograms. These pictograms should never be removed from the vehicle. If they fall off, are erased or are not perfectly visible, they must be replaced. Please contact your nearest official TORROT dealer to get the spare part (ref. BE95245TT-CNC-1). All the pictograms must be heeded.
- Page 10 If the lithium-ion accumulators (batteries) are in perfect condition, there is no special risk of fire with this vehicle. If the batteries show signs of deterioration, please contact your nearest official TORROT dealer. Any change, modification or tampering with the mechanical, electrical or electronic features of the vehicle are not allowed.
- Page 11 If, for a given repair, there are no instructions in this manual, or they are not clear enough, please contact your nearest official TORROT dealer. For the driver’s safety, only use approved TORROT spare parts and/or accessories. TORROT shall not be held liable for the damages arising from the use of other products.
- Page 12 User manual KIDS Using soaps or chemical products to clean the vehicle may damage the surface of the plastics or the paint on the parts. Do not clean the motorcycle with the battery in. Remove it as shown in the section Charge the battery outside the vehicle and wait at least 5 minutes before beginning to clean the vehicle.
- Page 13 5. Fit the plastic number plate again. (*) (*) Only Motocross and Supermotard models. The handlebar fitting operation is a delicate operation that may entail safety problems with the vehicle’s structure and steering. To do this, please contact your nearest official TORROT dealer.
- Page 14 It is important to inspect that foam before each transport and, if it shows signs of wear and tear, it must be replaced. Please contact your nearest official TORROT dealer to get the spare part (ref. ACTT-11004). To transport the battery, it must be charged to less than 30% of its full capacity. To check this value, connect the battery to the motorcycle and, upon switching it on, check that the battery charge level indicator shows 1 charge line.
- Page 15 - Put oil on the unpainted metal surfaces to prevent rust, prevent it from falling on the brakes and on rubber parts. - Raise the motorcycle such that the two wheels do not touch the ground (if this is not possible, put cardboard under the wheels).
- Page 16 If you detect a technical problem or you have any questions or queries about our products, please contact your nearest official TORROT dealer at www.torrot.com. You can also write to us at info@torrot.com, stating the VIN number, your query or the problem you have detected and your contact details.
- Page 17 They are motorcycles with road tires for Supermotard. This model offers to young riders unbeatable sensations thanks to its top speed and acceleration. Its performance makes it a unique motorcycle. This Supermotard motorcycle can later become a Trial or Motocross with the special kit, keep it in mind!
- Page 18 - Damage to the paint finish derived from participating in competitions and/or training for such activities or events or as the result of exposure or the use of TORROT ELECTRIC vehicles in extreme conditions or weather. - Damage caused by external agents such as chemical products, salt, rust, discoloration or natural...
- Page 19 Any claim under this warranty must be filed through an authorized TORROT ELECTRIC dealer or directly online or by postal mail to TORROT ELECTRIC Europa S.A. The original purchase invoice which contains the date of purchase and VIN number is required before a warranty claim can be processed.
- Page 20 For any problem that may arise in your vehicle, please write to info@torrot.com; state the VIN number, the problem detected, your name and a contact telephone number. Our technicians will quickly get in touch with...
- Page 21 Below are the vehicles parts which this manual refers. For all the pieces and spare parts for the vehicle, please contact your nearest official TORROT dealer. NAME NAME Front wheel axle Rear wheel rim Front brake disc Rear tire Front brake caliper...
- Page 22 User manual KIDS There may be slight differences between the images and series ONE and TWO.
- Page 23 There may be slight differences between the images and series ONE and TWO.
- Page 24 User manual KIDS There may be slight differences between the images and series ONE and TWO.
- Page 26 (regeneration) Motor Maximum power of 840W Rims Front: 10” x 1.60” Rear: 10” x 1.60” Tires Front: TORROT Trial 10” Rear: TORROT Trial 10” Weight with battery 30Kg Maximum rider weight 30Kg Charger 54.6V / 2A (≈4 hours to fully charged) Other functionalities Bluetooth parental control and power management APP.
- Page 27 (regeneration) Motor Maximum power of 1500W Rims Front: 12” x 1.60” Rear: 12” x 1.60” Tires Front: TORROT Trial 12” Rear: TORROT Trial 12” Weight with battery 33Kg Maximum rider weight 30Kg Charger 54.6V / 2A (≈5 hours to fully charged) Other functionalities Bluetooth parental control and power management APP.
- Page 28 User manual KIDS (*) Approximate dimensions. There may be differences between the vehicles and the dimensions contained in this manual. Chassis Tubular - Steel Front suspension Hydraulic fork 95mm travel Rear suspension Gas shock absorber with pre-load adjustment 85mm travel Brakes Front: 160 mm hydraulic Rear: 160 mm hydraulic...
- Page 29 (*) Approximate dimensions. There may be differences between the vehicles and the dimensions contained in this manual. Chassis Tubular - Steel Front suspension Hydraulic fork 95mm travel Rear suspension Oil shock absorber with pre-load adjustment 125mm travel Brakes Front: 160 mm hydraulic Rear: 160 mm hydraulic Battery Swappable 46.8V / 8.8Ah / 412Wh / 13S 4P...
- Page 30 User manual KIDS (*) Approximate dimensions. There may be differences between the vehicles and the dimensions contained in this manual. Chassis Tubular - Steel Front suspension Hydraulic fork 95mm travel Rear suspension Gas shock absorber with pre-load adjustment 85mm travel Brakes Front: 160 mm hydraulic Rear: 160 mm hydraulic...
- Page 31 (*) Approximate dimensions. There may be differences between the vehicles and the dimensions contained in this manual. Chassis Tubular - Steel Front suspension Hydraulic fork 95mm travel Rear suspension Oil shock absorber with pre-load adjustment 125mm travel Brakes Front: 160 mm hydraulic Rear: 160 mm hydraulic Battery Swappable 46.8V / 8.8Ah / 412Wh / 13S 4P...
- Page 32 The adjustment of the seat’s height is a delicate operation that may entail safety problems for the structure of the vehicle. To modify the height of the seat, please contact your nearest official TORROT dealer.
- Page 33 The battery consists of high energy density lithium-ion cells. It must never be handled under any circumstances. It is prohibited for persons not explicitly authorized by TORROT to inspect, repair or replace the battery or any of its elements. Avoid any direct blow to the battery during handling or transit.
- Page 34 Your battery has internal protections that can act automatically in the event of abnormal operation. If the battery does not work properly, please contact your nearest official TORROT dealer. It is absolutely prohibited to use any kind of charger that was not supplied directly by the manufacturer or by an authorized dealer.
- Page 35 One of the points that differentiates this vehicle from others is that its batteries are easy to remove and transport to charge them wherever you like. Moreover, this option allows you to have more than one battery so that you can change it when it is depleted. Thus, you will not have to wait to charge the battery to continue using the motorcycle.
- Page 36 User manual KIDS Remember always to cover the battery charging port with the protective rubber cap to prevent dirt from getting in. For safety and to prevent the motorcycle from being able to be handled with the charger connected, we advise you to charge the battery once it has been removed from the vehicle. However, if you wish to charge it in the vehicle, you must put the key switch in the off position and remove the key from it.
- Page 37 No noise must be heard coming from the motor. The replacement of the motor bearing is a delicate operation. To do this, please contact your nearest official TORROT dealer. KIDS motorcycles are equipped with a hydraulic brake disc system on both the front and rear wheels.
- Page 38 If any element of the braking system suffers a blow, it must be replaced. The replacement of the braking system elements is a delicate operation that may involve safety problems in the vehicle’s braking system. To do this, please contact your nearest official TORROT dealer.
- Page 39 This maintenance is a delicate operation that may involve safety problems on the structure and steering of the vehicle. To do this, please contact your nearest official TORROT dealer. Before each use of the motorcycle, clean the suspension fork dust seals (1).
- Page 40 User manual KIDS Please contact your nearest official TORROT dealer for different spring stiffness’s: - KIDS ONE: 550lb/in (ref. BE30010TT-CKJ-1) or 750lb/in (ref. BE30011TT-CKJ-1) - KIDS TWO: 450lb/in (ref. BE30010TT-CKK-1) or 650lb/in (ref. BE30011TT-CKK-1) Inspect periodically the rear shock absorber and/or its spring. If the shock absorber or the spring show any kind of damage or signs of deterioration, they must be replaced.
- Page 41 As you rotate the wheel, do not put your fingers near the chain, rear sprocket, drive sprocket or any other moving element.
- Page 42 This maintenance is a delicate operation that may involve safety problems in the structure of the vehicle. To do this, please contact your nearest official TORROT dealer. Tires are the only elements in contact between the vehicle and the ground. In all riding conditions, safety depends on a relatively small area of contact with the ground, hence it is extremely important to maintain the pressure at the values recommended by the manufacturer and that the tires are kept in good condition.
- Page 43 This maintenance is a delicate operation that may involve safety problems in the structure of the vehicle. To do this, please contact your nearest official TORROT dealer. The motorcycle is equipped with a side stand to support the motorcycle when it is stopped.
- Page 44 User manual KIDS It is important for the safety of the rider that the speed and power limiting device is set according to him/her level of skill, experience and maturity. You must also bear the requirements for safe use by an experienced rider in mind to adjust the speed and power limiting device.
- Page 45 The vehicle is equipped with a throttle which contains a battery charge level indicator. Before each use, inspect the throttle to ensure it returns automatically. To do so, twist the throttle and then release it. The throttle must return quickly and automatically to its original position. If the throttle shows any kind of damage, signs of deterioration and/or it does not return automatically, it must be replaced.
- Page 46 User manual KIDS Component Check/Inspect Adjust Replace/Change Clean Grease/Lubricate When it is Chassis Each ride damaged When it is Swingarm Each ride damaged When it is Battery Each month Each ride damaged When it is Brakes Each ride As necessary Each ride damaged Forks...
- Page 47 Below is a list of the vehicle’s most important tightening torques: TIGHTENING TYPE LOCATION SIZE TORQUE (Nm) Steering axle – Chassis W1” 24G SCREW Brake Discs – Wheels SCREW Rear sprocket – Rear Wheel SCREW-NUT Motor – Chassis SCREW Controller – Chassis SCREW Swingarm –...
- Page 48 User manual KIDS Before initiating the start of the motorcycle, follow the next steps. Before doing so, ensure that the vehicle is fully switched off: With the motorcycle switched off, check that the throttle returns automatically (see the section Throttle and battery charge level indicator).
- Page 49 Your KIDS motorcycle will then be ready to be used. Do not forget to fold away the side stand before starting the motorcycle. To prevent injuries while riding, remove the key when the key switch is in the on position (3). To stop the motorcycle, follow the next steps in the stated order: 1.
- Page 50 It also allows the responsible person of the rider to switch the motorcycle off/on remotely, by accessing the parental control section. This application, called TORROT KIDS, can be downloaded from Google Play or AppStore. A label is provided along with the motorcycle’s keys with a DEVICE ID and a PIN code to link the motorcycle connectivity device to the mobile using a Bluetooth connection.
- Page 51 4. Once found, select the device which you wish to pair with (2), and enter the device’s PIN code (3). 5. If the mobile has already been paired previously with the Bluetooth device, this step will not be required given that the pairing will be done automatically, and you could act directly in the main menu. Once the smartphone has been paired with the motorcycle’s Bluetooth device, the message “Device Connected!”...
- Page 52 User manual KIDS 7. Once the mobile has been paired with the vehicle’s Bluetooth device, the main menu of the TORROT KIDS application will appear. On this menu you can select what you want to do: whether to activate the Parental Control, configure the motorcycle’s behavior, or scan the devices again.
- Page 53 After accepting, a screen will appear on which you can customize the four driving behavior parameters by sliding the following selectors: − Max Power: this parameter can be used to customize the motorcycle’s maximum power: 20% is the minimum adjustable power. 100% is the maximum adjustable power.
- Page 54 User manual KIDS To activate parental control, you have to select the button that enables it (8). Once activated, it shows the icon that the person responsible for the rider has to press to stop the vehicle remotely. When this icon is blue (9), the vehicle can accelerate, while when it is grey (10), the vehicle cannot accelerate.
- Page 55 4. Check that the key switch is in the on position. 5. Check that the man overboard is properly connected. 6. Check that the start button located on the throttle is in the on position. If the vehicle is still not working, contact your nearest official TORROT dealer.
- Page 56 Take the necessary time to inspect the motorcycle, perform periodic maintenance and check all the functions before setting off. Some parts of this manual give data and actions to take at an official TORROT dealer. Therefore, and to increase the motorcycle’s lifetime, the periodic inspections of the motorcycle must only be carried out by specialists in the network of official TORROT dealers.
- Page 57 Yes, the charger has a voltage detection system that cuts off the power supply as soon as the battery is fully charged. However, it is recommended to disconnect the charger from both the mains and from the battery once the charging has finished. If you want to store the battery, follow the instructions in the section Storage of the vehicle.
