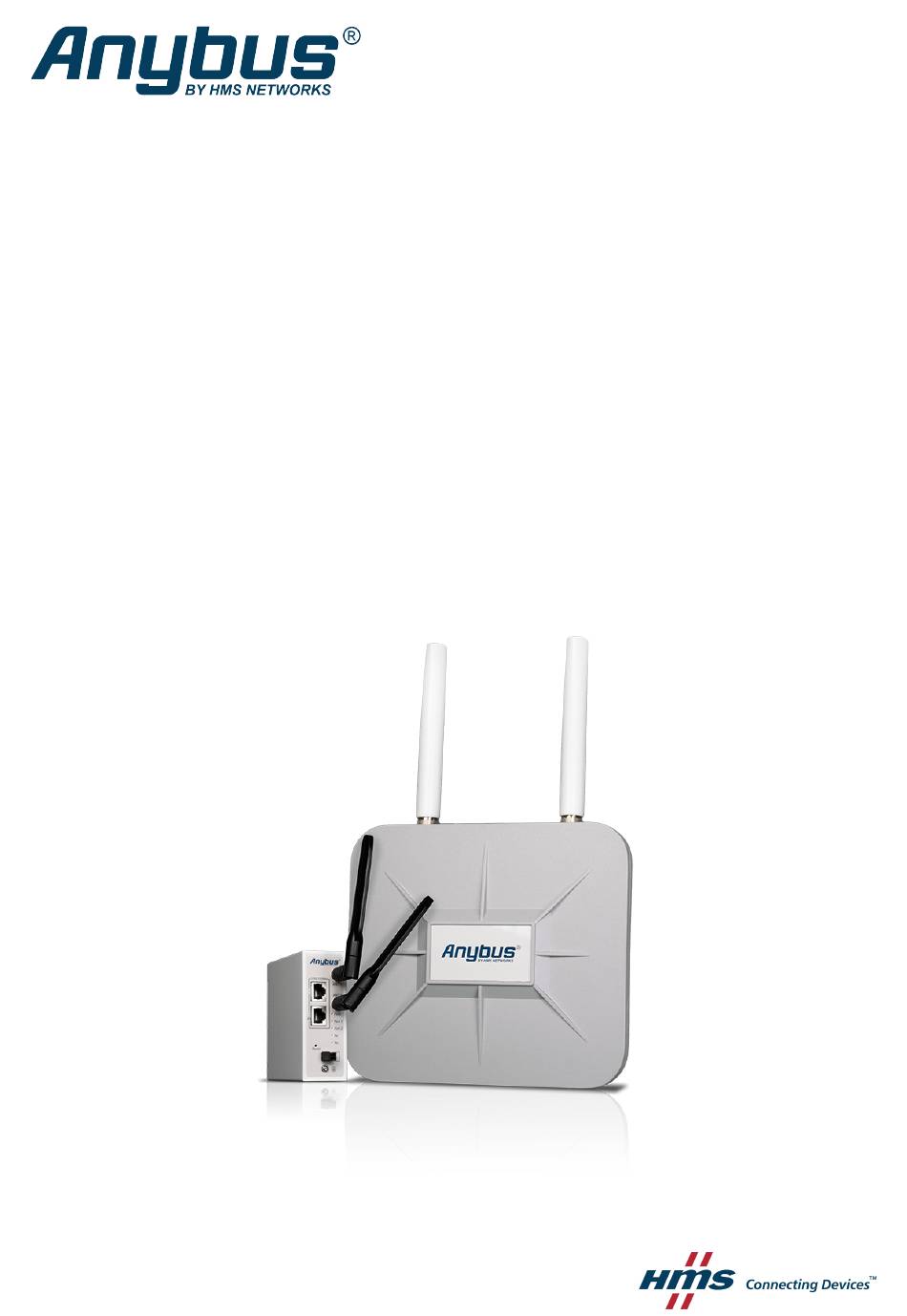

- Page 1 ® Anybus Industrial WLAN Access Point USER MANUAL SCM-1202-155 1.0 en-US ENGLISH...
- Page 2 The effects caused by any direct or indirect use of such aspects of the product are undefined and may include e.g. compatibility issues and stability issues. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
-
Page 3: Table Of Contents
Ethernet Port ........................ 21 Wireless LAN ......................... 22 Security........................29 5.10 Warning ........................33 5.11 Diagnostics ........................34 5.12 Backup/Restore ......................36 5.13 Firmware Upgrade ......................37 5.14 Reset to Default......................38 ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... - Page 4 Verify Operation........................ 39 Technical Data ........................41 Technical Specifications....................41 Wireless Technology Basics ....................43 ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
-
Page 5: Preface
Preface 3 (44) Preface About This Document This document describes how to install and configure the Anybus Industrial WLAN Access Point. For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Document Conventions Numbered lists indicate tasks that should be carried out in sequence:... -
Page 6: Trademarks
Preface 4 (44) Trademarks Anybus ® is a registered trademark of HMS Industrial Networks. All other trademarks mentioned in this document are the property of their respective holders. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 7: Safety
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 8: Preparation
Support and Resources For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Have the product article number available, to search for the product specific support web page. You find the product article number on the product cover. -
Page 9: Installation
Position the metal bands and the mounting bracket on the pole as needed. Tighten the metal bands to the pole and lock them by tightening the screws. Ensure that the access point is firmly secured to the pole. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 10: Wall Mounting
Use the four included screws and washers to attach the mounting bracket to the access point. Drill four holes in the wall and insert wall anchors. Use four screws to attach the mounting bracket to the wall. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 11: Din Rail Mounting
To avoid system damage, the equipment should be connected to ground. Fig. 2 Establish a direct connection between the ground screw and the grounding surface prior to connecting devices. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 12: Connecting Access Point Ip30 To Power
Insert the positive and negative wires into the P- and P+ contact on the terminal block. Tighten the 2 wire-clamp screws. Connect the power wires to a DC power supply. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... - Page 13 Port Power Function 2 PD WAN 1 Gbit/s IEEE 802.3af (48 VDC PoE) PoE enabled Connect the access point to an Ethernet network via the WAN PoE enabled port. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
-
Page 14: Connecting Access Point Ip 67 To Power
Fig. 5 Function Power WAN 1 Gbit/s PoE enabled IEEE 802.3af (48 VDC PoE) Connect the access point to power and an Ethernet network via the WAN/PoE port. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 15: Connecting To Ethernet
Connect the access point to an Ethernet network via the LAN port. Option for access point IP30 Fig. 7 Port Function Speed 1 Gbit/s Connect the access point to an Ethernet network via the LAN port. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 16: Connecting Antennas
ANT 2 WLAN 2, N-type connector, female Option for access point IP30 Fig. 9 Type Placement ANT 1 WLAN 1, RP-SMA connector, female ANT 2 WLAN 2, RP-SMA connector, female ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 17: Configuration
The web-based management interface login screen appears. In the login screen, enter user name and password. Click OK. → The web-based management interface welcome page appears. To Do Next ► Configure the access point. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 18: Configure The Country/Region Settings
To save changed settings permanently, click on Save at the top of the configuration page. The recent changes will otherwise be discarded if the access point is rebooted. Fig. 10 Top menu ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 19: Factory Reset
When the access point has successfully rebooted, the SYS LED turns green. To Do Next for access point IP67 Reattach the cover protecting the system LEDs and reset button. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 20: System
New Password Enter a password for accessing the web interface Confirm Password Re-type the new password again to confirm it Setting a secure password for the unit is strongly recommended. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... - Page 21 When enabled, the date and time will be updated automatically from a specified NTP server. Select an NTP server in the dropdown list or enter the IP address for the NTP server. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
- Page 22 DHCP Leased Entries IP Address IP address assigned by the DNS server MAC Address MAC Address of the node Time to expire(s) Remaining DHCP lease time for the node ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
-
Page 23: Ethernet Port
Default: AutoNegotiation 5.7.3 Traffic Control Enable Traffic Control Enable/disable traffic control Outgoing Rate Limit Maximum outgoing data rate Default: 1024000 kbit/s Outgoing Burst Maximum outgoing burst size Default: 20 kBytes ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 24: Wireless Lan
ACK Timeout For long distance connections, typically point-to-point, acknowledgment (ACK) timeout can be set manually to avoid excessive retransmitting. WMM Enable WMM enabled/disabled Noise Floor Background noise level (dBm) ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... - Page 25 WDS-AP Broadcast SSID Enable/disable broadcasting the SSID on the network. Default: Enable Wireless Separation When enabled, wireless clients connected to the access point cannot communicate directly with each other. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
- Page 26 Click to scan for wireless networks, select the desired network from the Wireless Site Survey list, then click Selected to connect the network. AP MAC Address Enter the MAC address of the WDS-AP to connect to. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
- Page 27 Profile 1 is the default profile and is always enabled. To set up a profile: check the box to enable the profile, then click on the profile name. Fig. 16 WLAN Profiles Fig. 17 WLAN profile settings ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
- Page 28 Used with WPA2-PSK authentication Key Type Select hexadecimal or ASCII format for WEP keys. Default: Hex Default Key Select the default key. Default: Key 1 Key 1~4 Enter the encryption keys. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
- Page 29 Used with WPA2-PSK authentication Key Type Select hexadecimal or ASCII format for WEP keys. Default: Hex Default Key Select the default key. Default: Key 1 Key 1~4 Enter the encryption keys. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
- Page 30 Shared key for authentication 5.8.8 Certificate File (Client Mode) Delete User Key Delete the currently selected RADIUS server certificate Upload User Key Upload a certificate file from a specified file location ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
-
Page 31: Security
Access to the configuration can be restricted to specific IP addresses and port ranges. 5.9.2 Outbound Firewall Firewall rules for outbound traffic can be set up based on source and destination IP address, source port range, destination port range, and protocol (TCP/UDP). ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... - Page 32 LZO Compression Uses compression of data to decrease the traffic (CPU intensive). Default: Disable Keepalive Detect connection status Default: Enable Ping Interval Interval between pings (1–99999 seconds). Default: 10 ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
- Page 33 A static key is used more than once over a long period of time. Download CA To download a certification authority (CA) for authentication of the CA signature on the server certificate, click Download. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
- Page 34 Enter the start and end IP address of the L2TP client IP address range. Authentication Authentication Method PAP/CHAP selectable User User Name Enter a new user name here. Password Enter a new password here. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
-
Page 35: Warning
Warning configuration page 5.10.1 Ping Watchdog The Anybus Industrial WLAN Access Point can be configured to regularly ping another device on the network. If the remote device is not reachable, the access point will reboot. Enable Ping IP Address Two IP addresses can be set up as targets. The Anybus Industrial WLAN Access Point will send a ping command to each of them at the interval configured below. -
Page 36: Diagnostics
Message Event message 5.11.2 ARP Table This page shows the active ARP table for the Anybus Industrial WLAN Access Point. The ARP table contains recently cached MAC addresses of devices that have been communicating with the access point. ® SCM-1202-155 1.0 en-US... - Page 37 Background noise level Connection Time The time when the client connected to the AP Last IP The IP Address of the client. Action Select kick to immediately disconnect the client. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
-
Page 38: Backup/Restore
To restore a saved configuration: Click on Choose file to open a file dialog. Select the configuration file and click on Open. Click on Restore to apply the configuration. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 39: Firmware Upgrade
Firmware Upgrade Fig. 24 Firmware Upgrade page The firmware of the Anybus Industrial WLAN Access Point can be upgraded over the current network connection (WEB). The latest firmware can be downloaded from www.anybus.com/support. Do not disconnect the Anybus Industrial WLAN Access Point while the upgrade procedure is running. -
Page 40: Reset To Default
Click on Reset to restore the factory settings. The current IP settings will be kept if the box Restore factory default IP setting is unchecked. The IP address of the access point will be reset to the default address 192.168.10.1. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... -
Page 41: Verify Operation
Green On AP: Radio enabled 5 GHz Mesh: Signal is strong Radio LED Green Blinking AP: STA connected Mesh: Signal is weak AP: STA disconnected, radio disabled Mesh: No signal ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... - Page 42 Station mode client connected Station mode radio/disabled 2.4 GHz Green On AP mode Radio LED Green Blinking Station mode client connected Station mode radio/disabled Power on Power Red On Not receiving power ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual...
-
Page 43: Technical Data
DIN rail mount Pole/Wall mount Operating temperature -40 °C to 70 °C, 5–95 % RH non-condensing Additional technical data and information related to the installation and use of this product can be found at www.anybus.com/support. ® SCM-1202-155 1.0 en-US Anybus... - Page 44 This page intentionally left blank...
-
Page 45: A Wireless Technology Basics
It is therefore recommended to use a wireless signal analysis tool for determining the optimal placement and configuration of a wireless device. ® SCM-1202-155 1.0 en-US Anybus Industrial WLAN Access Point User Manual... - Page 46 last page © 2020 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-155 1.0 en-US / 2020-06-11 / 18907...
