- Page 1 [Skriv tekst]...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ..................... 2 INTRODUCTION ......................3 COMPLIANCE ........................ 3 MODEL LS MUSIC SYSTEM PRE-INSTALLATION .............. 4 INSTALLATION ....................... 6 TRADEMARKS......................17 SERVICE INFORMATION ....................18 Steinway & Sons Model LS – Installation Manual, version 2.1... -
Page 3: Introduction
Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including any interference that may cause undesired operation. -
Page 4: Model Ls Music System Pre-Installation

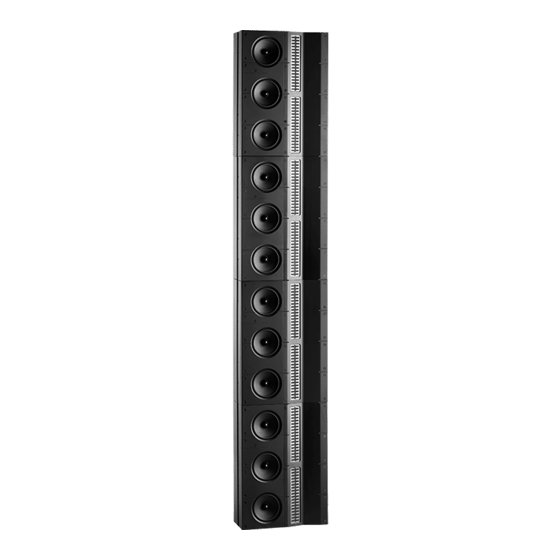

Carefully remove the loudspeaker units and accessories from the carton and check for shipping damage. Contact both the shipper and your Steinway Lyngdorf representative immediately if the unit bears any sign of damage from mishandling. Note: Keep shipping carton and packing material for future use or in the unlikely event that the unit needs servicing. - Page 5 • In-wall-mounted brackets for securing the top of each stack to the wall. No in-wall-mounted brackets are necessary with Model LS boundary woofers, nor are such brackets included with the boundary woofers. • Spike sheets for Model LS left, right, center, and surround loudspeaker stacks, one spike sheet per stack.
-
Page 6: Installation
INSTALLATION Prepare the Wall for the Speaker Stacks For proper mounting of a Model LS loudspeaker stack, a rectangular cutout with the following dimensions must be made in the wall: Model LS Left, Center, Right and Surround • Height For a stack of 4 units: at least 206.3 cm (81.22 in) and no more than 207.5 cm (81.69 in) in height. - Page 7 The Speakon loudspeaker cables for connection of stacks to the appropriate Model A1 amplifiers should exit the wall behind each stack at the following positions: • Model LS Left: 29.0 cm (11.4 in) above floor, along the vertical axis. • Model LS Right: 29.0 cm (11.4 in) above floor, along the vertical axis.
- Page 8 Example: Proper socket placement for mounting of a Model LS Center loudspeaker stack. Arrange the individual speaker units in a stack. For each loudspeaker stack, place the loudspeakers with the front side down on the floor, preferably close to the wall cutout in which the stack is to be mounted. Make sure that the floor is covered with fabric –...
- Page 9 material, such as Styrofoam, which can support the loudspeakers on each side of the tweeter units. The tweeter units are fragile and cannot support the weight of the stack without being damaged. Ensure that the two rows of Styrofoam extend beyond the bottom edge of the stack in such a way that they, and not the tweeter units, support the weight of the stack when the stack is raised upright and mounted in the wall cutout.
- Page 10 Daisy chain connection for Model LS right, left, center and surround loudspeakers in a stack of 6. Steinway & Sons Model LS – Installation Manual, version 2.1...
- Page 11 Daisy chain connection for Model LS right, left, center and surround loudspeakers in a stack of 4. 1:1 connection of Model LS boundary woofers Steinway & Sons Model LS – Installation Manual, version 2.1...
- Page 12 Connect the Loudspeaker Cables Model LS right, left, center, and surround loudspeakers: The socket pairs on the rear of the Model LS loudspeakers and the Speakon cables included with the loudspeakers facilitate connection of the individual units in a stack in a daisy chain. As shown to the left, the cable connecting each stack to a Model A1 amplifier is connected to the bottom socket on the bottom loudspeaker unit in each stack.
- Page 13 Mount the Brackets for the Top and Bottom Loudspeakers in a Stack Model LS right, left, center, and surround loudspeakers: Using the same TORX 30 screwdriver and the screws you have just removed from the side and rear brackets, secure the dedicated top and bottom brackets to the loudspeakers in their respective stacks as shown to the right.
- Page 14 Mount the Remaining Side Brackets Model LS boundary woofers, right, left, center, and surround loudspeakers: When cable connections are complete, use a TORX 30 screwdriver to mount the remaining side brackets on the rear of the loudspeaker stacks, bridging the individual loudspeakers as shown previously. The brackets on the rear of the loudspeaker stacks will partially cover the socket panels, so make sure connections are complete before mounting the remaining brackets on the rear of the stack.
- Page 15 Mount the Speaker Stack in the Wall When all connections are complete and the relevant brackets mounted on the loudspeakers and in the wall cutout, the stack can then be mounted in the wall cutout. Before mounting a loudspeaker or boundary woofer stack on a non-carpeted surface, such as a wooden floor, first place the spike sheet on the floor in the wall cutout so that the front edge of the spike sheet is aligned with the outer surface of the wall.
- Page 16 Please note that there will be a space of roughly 1-2 millimeters between the heads of these screws and the front side of the stack’s top bracket, even after the screws have been tightened completely. This ensures that the vibration of the loudspeaker during use is not transplanted to the wall construction, while at the same time ensuring that the stack cannot tip over.
-
Page 17: Trademarks
TRADEMARKS DTS is a registered trademark & the DTS logos and Symbol are trademarks of DTS, Inc. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD Master Audio are trademarks of DTS, Inc. -
Page 18: Service Information
SERVICE INFORMATION In order to obtain warranty service you must contact your original dealer or the Steinway Lyngdorf distributor of the region or country where you are located. If you have trouble locating an authorized representative, please contact the Steinway Lyngdorf Customer Service Department using the contact information at www.steinwaylyngdorf.com, or you may email service@steinwaylyngdorf.com. - Page 19 Steinway & Sons Model LS – Installation Manual, version 2.1...
