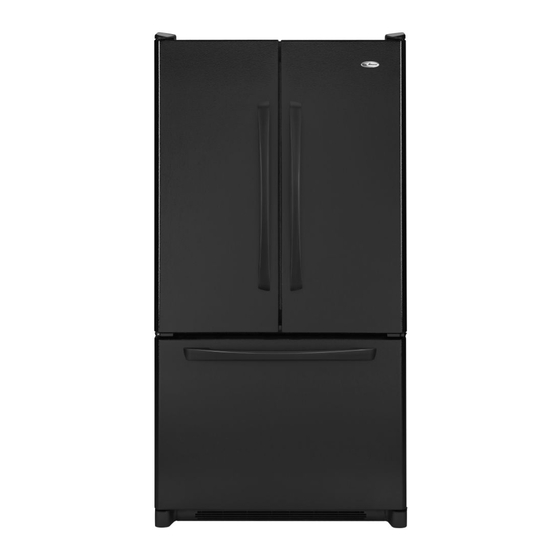

Amana AFD2535DEB Product Dimensions

Top View
A
B
F
G
H
Important: Because of continuing product improvements, Amana reserves the right to change specifications without
notice. Dimensional specifications are provided for planning purposes only. For complete details see installation
instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.
D
C
E
I
25 Cu. Ft. Models
w/3 Doors

Dimensions

Inches
A 35 5/8
1
B 34
2
C 31 3/4
D 29
3
E 48 1/4
4
F 52 3/4
5
G 37 7/8
6
H 68 5/8
7
I 69 7/8

Notes:

1. Depth including door handle.
2. Depth excluding door handle.
3. Depth with refrigerator door open 90
4. Depth with freezer drawer fully extended.
5. Width with refrigerator door open 90
including door handle.
6. Height excluding door hinge.
7. Height including door hinge.
Centimeters
90.5
86.4
80.6
73.7
122.6
134.0
97.2
174.3
177.5
