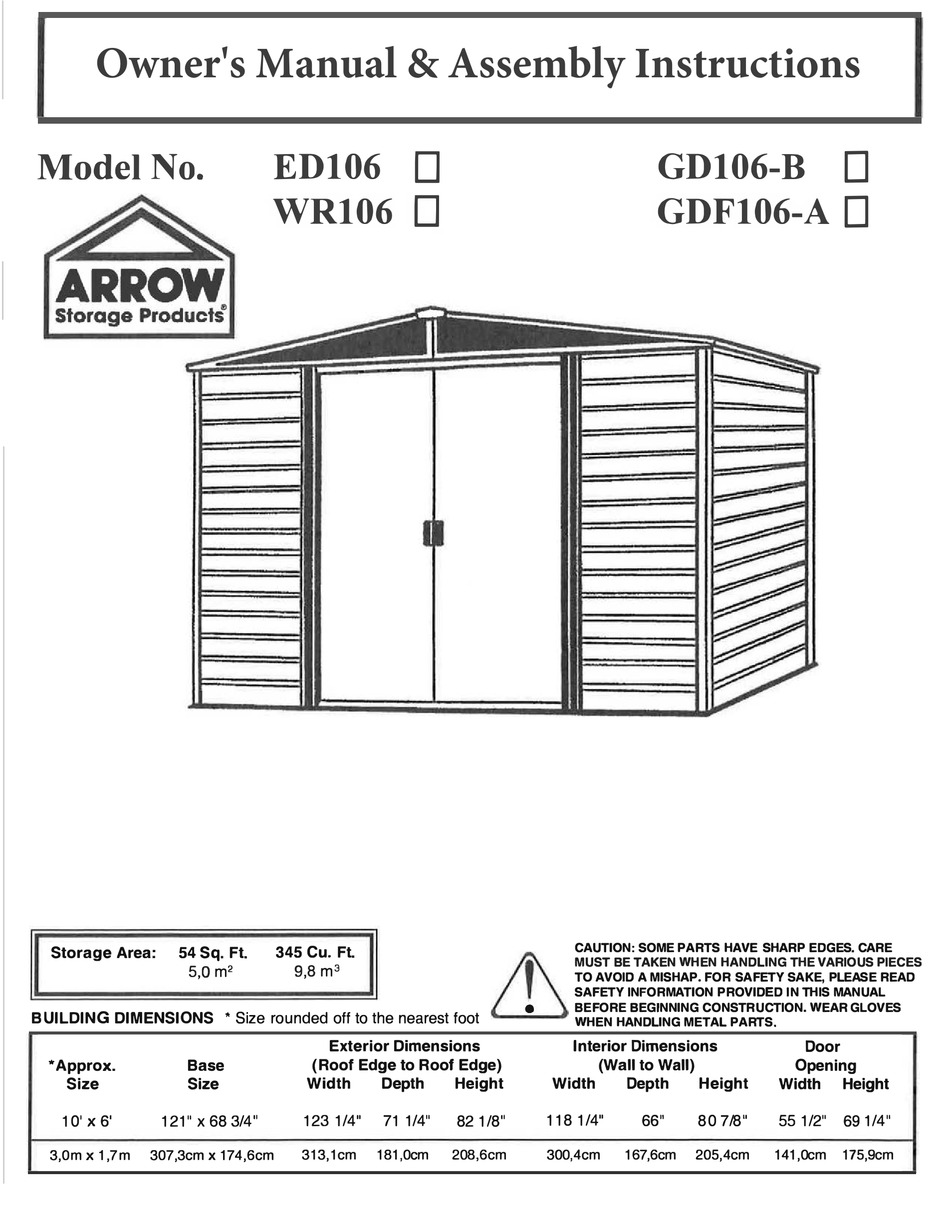

Owner's Manual & Assembly Instructions
Model No.
. 5
Storage Area·
54 Sq Ft
Q
' m
BUILDING DIMENSIONS
*Approx.
Base
Size
Size
x
1 0'
1 21"
68 3/4"
x6'
3,0m x 1,7m
30 7,3cm
x
ED106
WR106
345 Cu Ft
•
•
3
' m
8
2
g
.
•
Size rounded off to the nearest foot
*
Exterior Dimensions
( Roof Edge to Roof Edge)
Width
Depth
123 1 /4"
71 1/4"
174,6cm
313,1cm
181,0cm
D
D
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
e
WHEN HANDLING METAL PARTS.
Interior Dimensions
Height
Width
1 1 8 1 /4"
82 1 /8"
208,6cm
300,4cm
GD106-B
GDF106-A
(Wall to Wall)
Height
Depth
80 7/8"
66"
167,6cm
205,4cm
141,0cm
0
0
Door
Opening
55
Width
Height
1 /2"
1 /4"
69
175,9cm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arrow Storage Products ED106

Summary of Contents for Arrow Storage Products ED106

  • Page 1 Owner's Manual & Assembly Instructions Model No. ED106 GD106-B WR106 GDF106-A CAUTION: SOME PARTS HAVE SHARP EDGES. CARE 345 Cu Ft Storage Area· 54 Sq Ft MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES • • TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ •...
  • Page 2 BEFORE YOU BEGIN ..Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.
  • Page 3 PLAN AHEAD ..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 4 SAFETY FIRST ..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various • Practice caution with the tools being used in pieces of your building since some contain the assembly of this building. Be familiar with sharp edges.
  • Page 5 & CARE MAINTENANCE ..Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
  • Page 6 ACCESSORIES ..FLOOR FRAME KITS ROOF STRENGTHENING (heavy snow load) KITS Extra roof beams and gable braces designed for added protection against heavy snow accumulation. Increases the strength of your roof by 50%. ANCHOR KITS MODE LS FB4741 0, FB5465, FB1 06-A Model No.
  • Page 7 Base The Base For Your Building No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is recommended as an effective method of properly securing your building after assembly is complete. OPTION Directly on ground (earth) Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
  • Page 8 Anchoring Anchoring Down T he Building It is important that the entire floor frame be anchored after the building is erected. Below are recommended ways of anchoring. (Model No. AK4 or 60298) Anchoring into Wood/Post: Arrow Anchoring Kit: Use 1 /4" (6 mm) Wood Screws. There are 1/4 " (6 mm) Recommended for use with any suggested base.
  • Page 9 Hardware Remove from bag of screws and save for the last step 65900A #10Bx1/2" (13 mm) 65923 65004 65103 Black Screw (8) #8-32x3/8" (10 mm) #8Ax5/16" (8 mm) #8-32 Hex Nut (89) (Packed with Screws) Bolt (89) Screw (284) 0 () 66646 66045 Washer (166)

  • Page 10: Table Of Contents

    Parts List Quantity Check Part Part Assembly in Carton List Description Number Key No. 8934 Ramp 9367 Front Floor Frame 8936 Rear Floor Frame 9338 Right Rear Wall Angle 9366 Door Track 6403 Door Track Splice 9339 Left Rear Wall Angle 6001 Left Gable 6000...

  • Page 11: Key No

    Assembly by Key...

  • Page 12: 8934 Ramp

    Step 1 • 8934 Ramp (1) • Parts Needed For • • 9367 Front Floor Frame (2) Floor Frame Assemblies • 8936 Rear Floor Frame (2) The front floor frame is made up of three pieces. The rear floor frame is 9367 made up of two pieces.

  • Page 13: 9338 Right Rear Wall Angle

    Step 2 • Parts Needed For • • 9338 Right Rear Wall Angle (1) • 9339 Left Rear Wall Angle (1) Frame Assembly The main frame pieces reinforce the walls. This piece will later be installed at the top edge of the rear wall. Pro­ ceed as follows: Overlap the right...
  • Page 14 Step 3 • Parts Needed For • • 8474 Roof Beam (1) • 8476 Side Wall Angle (1) Roof Beam Assembly The roof beams join the two gables and support the roof panels. The main roof beam is made up of two pieces fastened together.

  • Page 15: 9366 Door Track

    Step 4 • Parts Needed For • • 6403 Door Track Splice (1) • 9366 Door Track (2) Door Track Assembly NOTE: Door Track Splice (painted part) The door track assembly supports the sliding doors and reinforces the front wall. It is made up o f three pieces. Using the door track splice, (painted), join the...
  • Page 16 Step 5 • • Parts Needed For Front Floor Assembly (1) • • 8946 Side Floor Frame (2) Floor Frame • Rear Floor Assembly (1) Assemble the four corners of the floor frame using two screws at each corner as shown. At the front corners fasten bolts through from the bottom with nuts on top.

  • Page 17: 5288 Corner Post

    • 5288 Corner Post (4) Step 6 • Parts Needed For • • Door Track Assembly (1) • Rear Wall Angle Assembly (1) Posts/Top Frames • 9342 Side Wall Angle (2) NOTE The remainder of the building assembly requires many hours and more than one person.

  • Page 18: 5287 Splice Post

    Step 7 • Parts Needed For • • 5287 Splice Post (1) • 7311 Door Jamb (2) Splice Post/Door Jamb The door jambs reinforce the door opening and provide an attractive trim. The splice post supports the rear wall. Position splice post at the center o f the rear wall and fasten using...

  • Page 19: 9344 Siding Stud

    Step 8 • Parts Needed For • • 9344 Siding Stud (6) • 9365 Front Wall Channel (2) Studs/Front Channel The studs provide a sur face for at­ taching the siding panels. Following dimensions, measuring from the ends o f angles, place a stud between each corner and splice post at the rear of building and 2...

  • Page 20: 8719 Side Siding

    Step 9 • Parts Needed For • • 8719 Side Siding (6) Side Siding Each screw in the wall requires a washer. CORRECT INCORRECT Slide side siding into channels of corner posts, flat edge upward, bottom edge down resting on floor frame.

  • Page 21: 8736 Rear Siding

    Step 10 • Parts Needed For • • 8736 Rear Siding (6) • Rear/Front Siding 8737 Front Siding (6) Slide rear siding into channel of corner and splice posts fastening to Fasten Top Center of rear frame as shown in previous step Last Siding to Stud Install rear siding...
  • Page 22 Step 11 • Parts Needed For • • 6000 Right Gable (2) • 6001 Left Gable (2) Gable Assemblies • 5971 Roof Beam Bracket (4) The gables go o n top of the front and rear walls to support the roof beams. NOTE The gables are packed nested together and might be mistaken...
  • Page 23 Step 12 • Left Gable Assemblies (2) • Parts Needed For • • Right Gable Assemblies (2) • Gables/Braces 6635 Gable Brace (2) Lift and fasten a right and left gable, under angle at corner, to the rear wall angle with screws. Hint: On the rear gable, use a bolt and nut at the overlapping rear wall...

  • Page 24: 8474 Roof Beam

    Step 13 • Parts Needed For • • Main Roof Beam (1) • Roof Beams 8474 Roof Beam (2) Fasten the main roof beam the gable brace of the front gable. Beam Fasten the other end of the main Roof 84 7 4 root beam to the gable brace of the rear gable.

  • Page 25: 8468 Right Roof Panel

    Step 14 • Parts Needed For • • 8468 Right Roof Panel (1) Right Roof Panel Installing the roof panels is best done with a step ladder. Begin installing 8469 8468 roof panels at the back right corner of the building. Each screw and bolt in the roof requires a washer.

  • Page 26: 6529 Roof Panel

    Step 15 • 8468 Right Roof Panel (1) • Parts Needed For • • 8469 Left Roof Panel (2) Roof Assembly • 6529 Roof Panel (4) Left Roof Panel 8469 Install a left roof panel at the left rear and right front corner of the roof. 8468 Install a right roof panel...

  • Page 27: 8461 Ridge Cap

    Step 16 • Parts Needed For • • 8461 Ridge Cap (1) • 8482 Side Roof Trim (2) Ridge Cap/Roof Trim Install the ridge cap on the com­ pleted roof section using bolts. Do not fasten the ends of the ridge cap until instructed to do so.

  • Page 28: 10497 Horizontal Door Brace

    Step 17 • 3719 Door Handle Brace (2) • Parts Needed For • • 10472 Right and Left Doors (2) • Door Assembly 10497 Horizontal Door Brace (4) • 6301 Vertical Door Brace (2) The steps on this page tell how to assemble the right door.
  • Page 29 Step 18 • Parts Needed For • • Right Door Assembly (1) • Left Door Assembly (1) & Door Installation Adjustment Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly "- (on your left when you are inside the building) behind door jamb into the front frame track.
  • Page 30 ED106 GD106-B GDF106-A WR106 Anchoring and Floor Frame Anchoring Anchor your building at this time. Floor Frame If you have purchased a Floor Frame Kit you need to install it at this time. SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out.
