impinj R700 Quick Start Manual

RESOURCES & NEXT STEPS
Develop business applications using the Impinj IoT device interface, Impinj Octane SDK,
the Impinj Octane LLRP toolkit, or Impinj R700 ETK. For more information, contact Impinj
using the resources listed below.
•
Sales: www.impinj.com/contact-us
•
Support: support.impinj.com
•
Developer site: developer.impinj.com
•
Postal Address: 400 Fairview Avenue North, Suite 1200, Seattle, WA 98109
NOTICES
Copyright © 2021, Impinj, Inc. All rights reserved.
Impinj gives no representation or warranty, express or implied, for accuracy or reliability of information in
this document. Impinj reserves the right to change its products and services and this information at any
time without notice.
EXCEPT AS PROVIDED IN IMPINJ'S TERMS AND CONDITIONS OF SALE (OR AS OTHERWISE
AGREED IN A VALID WRITTEN INDIVIDUAL AGREEMENTWITH IMPINJ), IMPINJ ASSUMES NO
LIABILITY
WHATSOEVER AND IMPINJ DISCLAIMS ANY EXPRESS OR IMPLIEDWARRANTY, RELATED TO
SALE AND/OR USE OF IMPINJ PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING
TO FITNESS FOR A PARTICULAR PURPOSE,MERCHANTABILITY,OR INFRINGEMENT.
NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY PATENT,
COPYRIGHT, MASKWORK RIGHT, OR OTHER INTELLECTUALPROPERTY RIGHT IS GRANTED BY
THIS DOCUMENT.
Impinj assumes no liability for applications assistance or customer product design. Customers should
provide adequate design and operating safeguards to minimize risks.
Impinj products are not designed, warranted or authorized for use in any product or application where a
malfunction may reasonably be expected to cause personal injury or death or property or environmental
damage ("hazardous uses") or for use in automotive environments. Customers must indemnify Impinj
against any damages arising out of the use of Impinj products in any hazardous or automotive uses.
Impinj, Monza, Speedway, xArray, xSpan are trademarks or registered trademarks of Impinj, Inc. All
other product or service names are trademarks of their respective companies. For a complete list of
Impinj Trademarks visit: www.impinj.com/trademarks
The products referenced in this document may be covered by one or more U.S. patents. See
www.impinj.com/patents for details.
Version 1.2 Part Number: 102960-01
Quick Start Guide

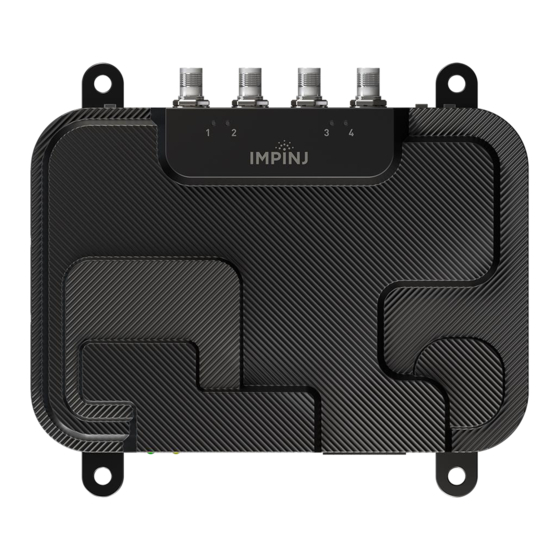

Impinj R700 RAIN RFID Reader
OVERVIEW
This guide provides simple steps to quickly start using
your new Impinj R700 RAIN RFID reader. Please
consult the Impinj R700 Installation and Operations
manual for a full description of mounting choices,
antenna types, power and network connection
methods and reader configuration options. To
view this guide in another language visit
www.impinj.com/R700-QSG.
Box Contents
Accessories Sold Separately
Connections and Ports
Download Impinj ItemTest software
© 2021, Impinj, Inc. Version 1.2
•
1 x Impinj R700 RAIN RFID reader
•
1 x Quick Start Guide
•
PoE Injector
•
PoE Injector AC power cords
•
Reader antennas
•
Antenna cables
•
4 x RP-TNC antenna ports
•
RJ-45 10/100/1000BASE-T Ethernet port
•
3 x USB Type-A host ports
•
GPIO terminal block
•
Factory reset button
•
Micro USB device port
1. Open a browser on your Microsoft Windows PC and go to
https://support.impinj.com.
Type "Impinj ItemTest software" into Search Support and click the "Impinj
2.
ItemTest Software" link and download the latest version
NOTE:
The Impinj R700 is only supported in Impinj ItemTest version 2.0 and
newer.
3. Extract the files and run the executable to install Impinj ItemTest
Part Number: 102960-01 © 2021, Impinj, Inc.
