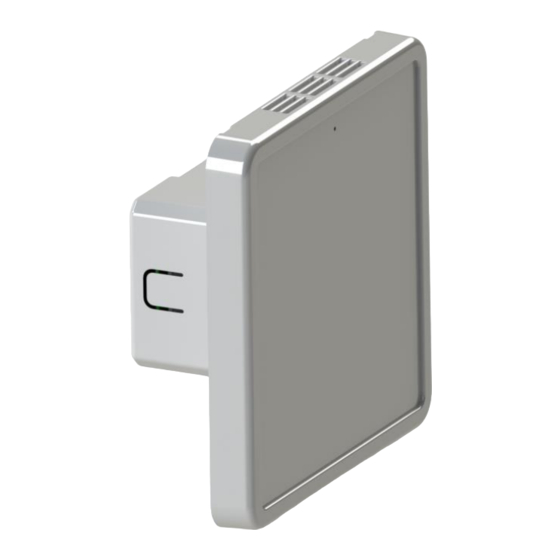

- Page 1 123 rue de Bellevue, 92100 Boulogne Billancourt France Tél : 33-(0) 1 41 41 00 02 - www.nano-sense.com EP5000M air quality probe Installation manual Date Modification / Update 16/12/2019 Initial Version 23/04/2021 Update page 1/6...
- Page 2 Installation Guide Modbus E5000 IAQ probe Summary Security ................................3 Positioning ................................ 3 Flush mounting ..............................5 Wiring ................................5 Installation ................................ 5 Power on ................................6 Connections ..............................6 7.1. Power supply ..............................6 NFC .................................. 6 Disconnection ..............................6 page 2/6...
- Page 3 Installation Guide Modbus E5000 IAQ probe 1. Security WARNING Danger of death, risk of electric shock and fire! The installation should only be undertaken by a qualified electrician! To apply for correct bus and power cables and to activate the device, comply with the state of the art and standards.
- Page 4 Installation Guide Modbus E5000 IAQ probe Any work not in accordance with this documentation or changes to the device will invalidate all warranty claims. page 4/6...
-
Page 5: Flush Mounting
Installation Guide Modbus E5000 IAQ probe 3. Flush mounting Use the multi material backbox provided or an airtight insulated backbox with a waterproofing membrane through which the sheath passes. If the backbox passes through the sealing plane, seal between the backbox and the partition with a specific VOC free and silicone free sealant. - Page 6 Installation Guide Modbus E5000 IAQ probe 6. Power on Few seconds after power-up, all LEDs will be activated individually for a visual test. At the end of the cycle, failure message made of blink between orange and red LED may appear during few seconds, the time to interrogate all sensors then, the blue LED shall "breathes"...
