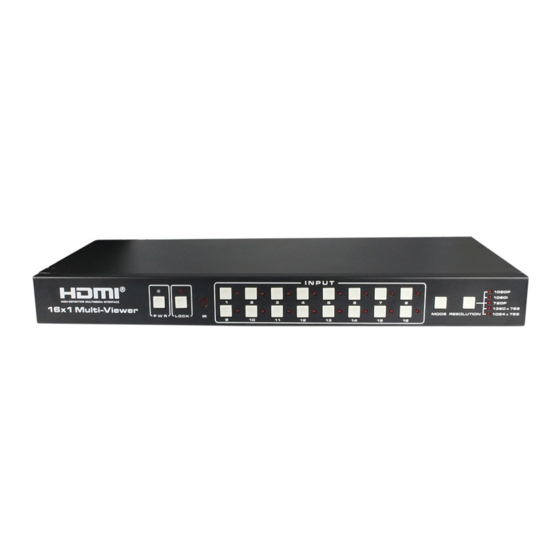

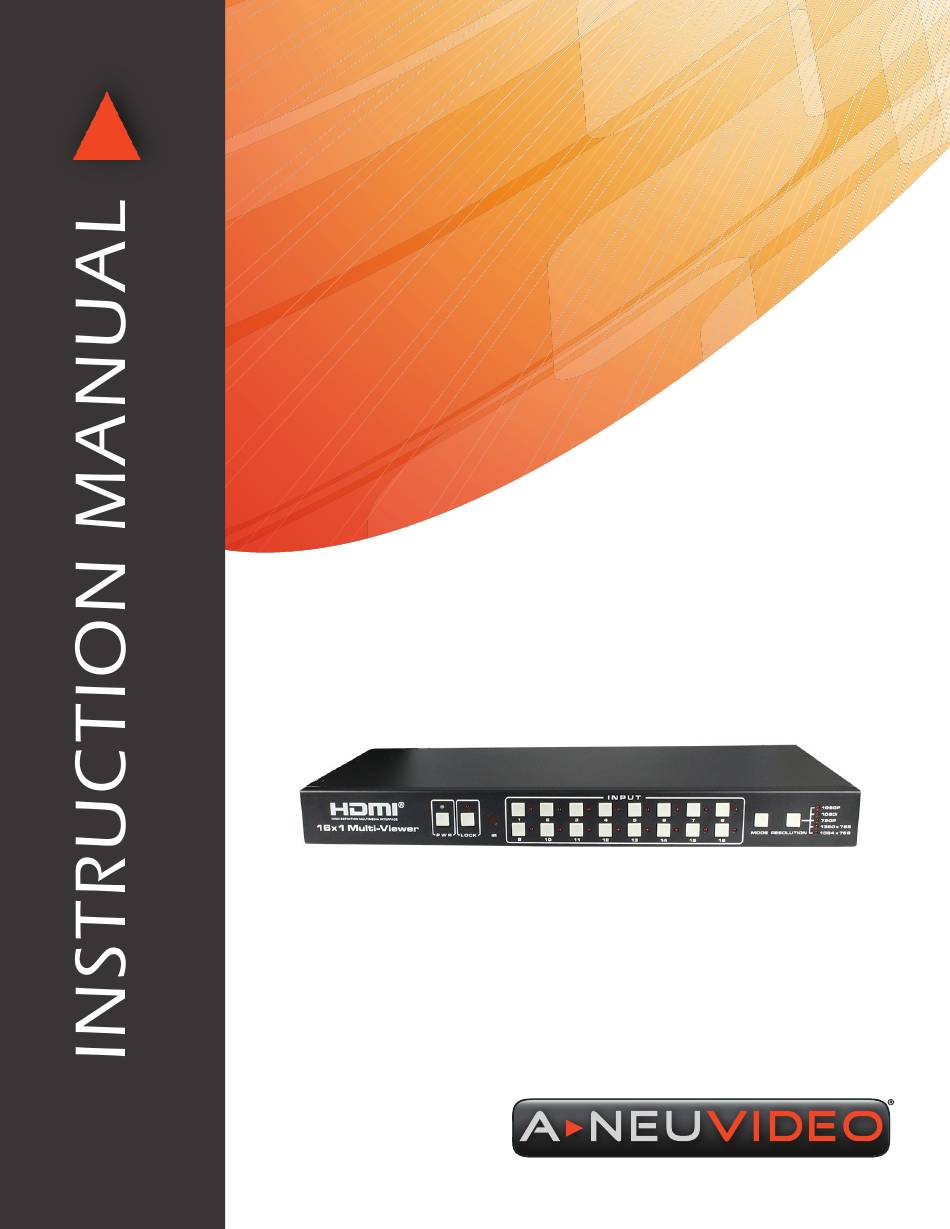

- Page 1 ANI-16-MV 16x1 HDMI Multi-Viewer w/ Seamless Switcher A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
INTRODUCTION • To protect the unit from overheating, do not block any vents or The ANI-16-MV is a high performance 16x1 Multi-Viewer with openings in the unit housing that provide ventilation and allow for seamless switcher. It supports (16) High definition input source sufficient space for air to circulate around the unit. -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI 1.3a, HDCP 1.2 compliant • Supports multiplexed HDMI (16) inputs and (1) output • Supports up to 1080p High Definition resolution • Supports (16) by (1) Quad Multi-viewer and seamless switch • Supports scale up, scale down function •... -
Page 5: Front & Rear Panels
NEUVIDEO FRONT & REAR PANELS FRONT PANEL q w e POWER: Press this button to power the device ON/OFF. The LED will illuminate Green when the power is ON, Red when it is in ‘Standby’ mode. LOCK: Press this button to lock all the buttons on the panel, press again to unlock. The Red LED will illuminate when the button is locked. -
Page 6: Display Modes
NEUVIDEO displa y modeS description of displa y mode The ANI-9-MV 16x1 multi-viewer have (4) display modes. MODE 1: The 16x1 multi-viewer will separate display the (16) HD inputs, and now it is a seamless switcher. MODE 2: The 16x1 multi-viewer divides the (4) HD input to the same size and displays them on one screen. Using the front panel input button, you can select the HDMI output audio that corresponds to the selected input source. -
Page 7: Pc Software
Installation The software can be downloaded from the product page off our website “ANI-16-MV PC Software.exe” The software is a standalone .EXE file requiring no installation. Download the file to your hard drive and double click the file name to start the program. -
Page 8: Application Example
NEUVIDEO Application Example Application Example... - Page 9 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 10 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
