Product Name:
SKU #:
Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
CARTON CONTENTS:
Description
01 Fountain
02 Pump w/ Adaptor
03 Water Pump Top
04 Bolt
05 Nut
06 Handle
Tools required for assembly: No tools required for assembly.
Assembly Instructions:
1. Unpack the contents of the box and check to make sure that all items are accounted for and in good
condition.
2. Select a flat, level surface for the assembly and final location of your fountain.
3. Place the fountain on a flat, level surface. From the opening at the top of the fountain base, insert the water
supply tube into the pump outlet. Insert handle to the top and insert the bolt through the holes and tighten
with nut. (①)
4. Place the pump upright insert the water supply tube in the basin and draw the pump power cord out of the
fountain back. (②)
5. Add clean water into the basin. The water level should be approximately 30mm lower than the edge of the
basin. (③)
6. Connect the pump power cord to a ground fault circuit interrupter (GFCI) outlet and the product will begin
to function as intended.
7. To eliminate the possibility of water damage around your fountain, check for leaks and excessive splashing
after the initial setup of your fountain. It is highly recommended that this fountain be placed in an area
where it cannot be damaged.
8. Do not leave your fountain running for extended periods of time when no one is present to observe the
performance.
9. Check the area around your fountain on a regular basis to ensure that there is no leakage.
10. Please refresh the fountain with water each week to ensure it in good condition.
11. Do not add any harmful chemicals to the water as it may alter the paint finish.

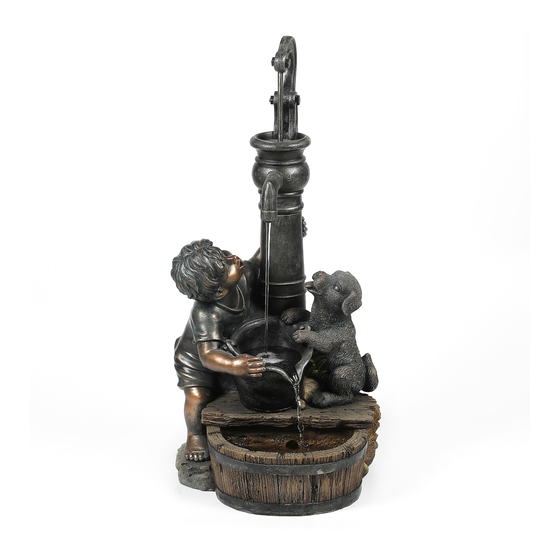

Polyresin Water Pump Boy and Dog Patio Fountain
WHF819
Accessories standards and type
)
(④
Contact: sales@winsomehouse.com
Instruction Manual
Please save this manual for future reference.
Quantity
1
1
1
1
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Luxen Home WHF819
Summary of Contents for Luxen Home WHF819
- Page 1 Polyresin Water Pump Boy and Dog Patio Fountain SKU #: WHF819 Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY. Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts.
- Page 2 Instruction Manual Please save this manual for future reference. Product Name: Polyresin Water Pump Boy and Dog Patio Fountain SKU #: WHF819 Note: The above diagram is for illustrative purposes only. Contact: sales@winsomehouse.com...
- Page 3 Instruction Manual Please save this manual for future reference. Product Name: Polyresin Water Pump Boy and Dog Patio Fountain SKU #: WHF819 Pump Instructions: Special Warnings and Cautions: CAUTION: • The pump has been evaluated for use with water only.
- Page 4 Product Name: Polyresin Water Pump Boy and Dog Patio Fountain SKU #: WHF819 WARNINGS: 1. To reduce the risk of electric shock, connect only to a properly grounded, grounding type receptacle. 2. To reduce the risk of electric shock, use only on portable self-contained fountains no larger than 5 feet in any dimension.
- Page 5 Product Name: Polyresin Water Pump Boy and Dog Patio Fountain SKU #: WHF819 TIPS AND TROUBLESHOOTING: 1. Ensure that the pump’s flow control switch is set to maximum (+) before operating. Once the flow is established, the pump can be adjusted downward to the desired level.
