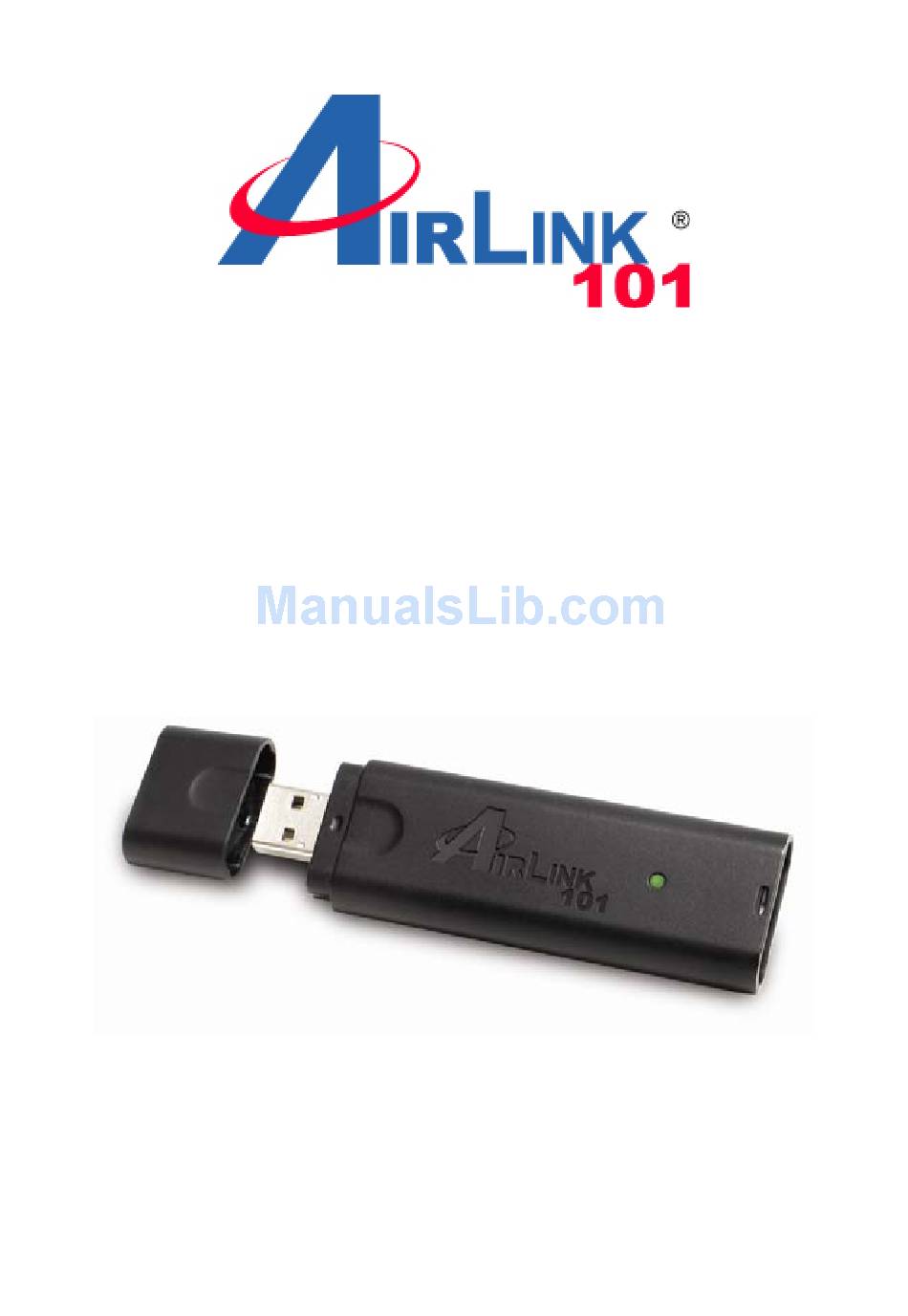

Page 1: Quick Installation Guide

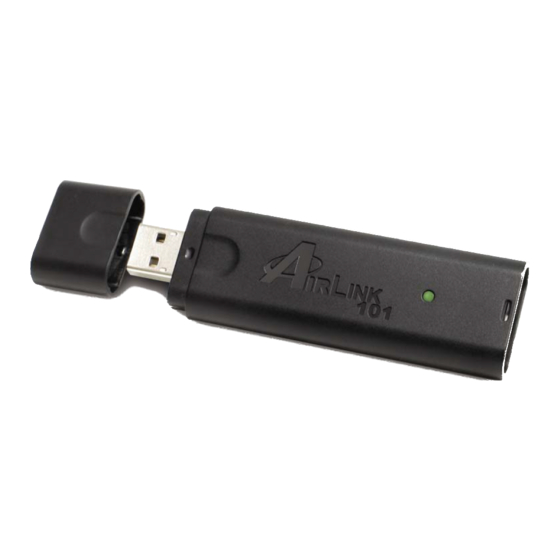

Quick Installation Guide Dual Band Wireless N USB Adapter Model # AWLL7025 Ver. 1A... -
Page 2: Install Utility And Driver
Thank you for purchasing Airlink101 Dual Band Wireless N USB Adapter. Please follow the Quick Installation Guide to configure this product. For detailed installation instructions on advanced features, please refer to the User’s Manual that can be found on the provided CD. Before you begin the installation, please check the items of your package: Package Contents: •... - Page 3 Step 3 The Autorun screen will pop up. Click Install Utility and Driver from the menu.
- Page 4 Note: If the Autorun screen doesn’t appear automatically go to Start, Run, and type D:\Utility\Setup.exe (where D is the letter of your CD drive) and click OK. Windows Vista Users: At this point, you may get a warning message like the one below.
- Page 5 Step 4 The InstallShield Wizard will pop up. Click Next at the screen. Step 5 Click Next to begin the installation.
- Page 6 Step 6 Give Permission to Window to install the driver software For Windows Vista, click the Install this driver software anyway. For Windows XP click Continue Anyway at the Windows Logo Screen. For Windows 2000, click Yes at the Digital Signature Not Found prompt. Step 7 Click Finish to complete the installation...
- Page 7 Section 2 Configure the Wireless Adapter Open the Airlink101 Wireless Monitor utility by double clicking on the Airlink101 Wireless Monitor Utility icon in the system tray at the bottom right- hand corner of your screen. Step 1 Click on AP List tab and select a Network Name (SSID) from the list you want to connect to and click Connect.
- Page 8 Step 2 If encryption is not enabled for the selected access point / router, skip to Step 7. Otherwise, enter a Profile Name for your wireless setting and click Next. Step 3 Verify that the Network Name matches the wireless network you selected to connect and click Next.
- Page 9 Step 4 Verify that the Authentication Mode and Input Method match to your wireless router’s settings and click Next. Step 5 Input the encryption key for your wireless network and click Next.
- Page 10 Step 6 Keep the default IP Setting and click Complete. Step 7 You should see a blue circle around the antenna icon indicating a valid connection.
- Page 11 Step 8 Go to the Link Information tab and click on the More button. Step 9 Verify that you are receiving adequate Signal Strength and Link Quality and that you have been assigned a valid IP address (instead of all 0’s).
-
Page 12: Troubleshooting
WPS feature, you will need to set up the wireless security manually and you can skip this section. In the instructions below, we are going to use the Airlink101 Dual Band Wireless N Router AR725W and Dual Band Wireless N USB Adapter AWLL7025 as the example. - Page 13 Step 1 Push and hold the WPS button on the bottom of the Adapter until you see the WPS window pops up on the computer monitor. WPS window: Step 2 Push the WPS button on the Router, and the blue LED will start blinking.
-
Page 14: Technical Support
Step 3 The Router will now start the handshake with the wireless adapter. When you see the window below, the wireless connection has been established. Section 4 Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Website: www.airlink101.com *Theoretical maximum wireless signal rate derived from IEEE standard 802.11g and draft 802.11n specifications.
