Airlink101 AWLL5077 User Manual

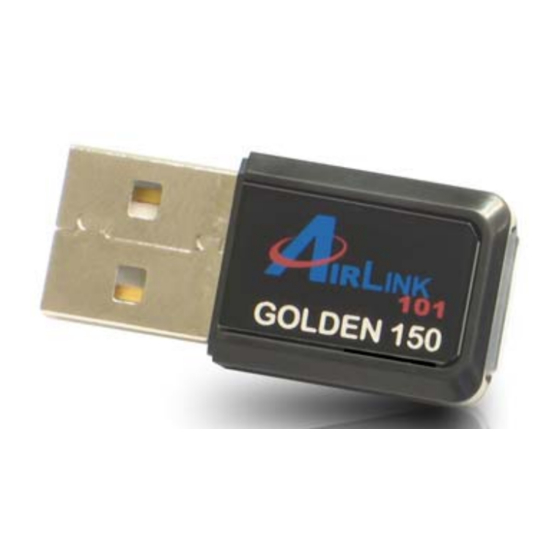

Golden 150 wireless mini usb adapter
Hide thumbs Also See for AWLL5077:
Table of Contents

Advertisement

Quick Links

Download this manual
Golden 150 Wireless Mini USB Adapter
Model # AWLL5077
User's Manual
Rev. 1.0

Advertisement

Table of Contents
loading

Related Manuals for Airlink101 AWLL5077

Summary of Contents for Airlink101 AWLL5077

  • Page 1 Golden 150 Wireless Mini USB Adapter Model # AWLL5077 User’s Manual Rev. 1.0...

  • Page 2: Table Of Contents

    1. Introduction...2 1.1 Package Contents ...2 1.2 Features ...2 2. Install Wireless USB Adapter...3 3. Connect to Wireless Network ...9 4. Wireless Monitor ...14 4.1 General...14 4.2 Profile Settings...16 4.3 Available Network ...18 4.4 Status...19 4.5 Statistics ...20 4.6 Wi-Fi Protected Setup (Easy Setup Button) ...21 4.7 Configuring Encryption ...26 4.8 Ad-hoc and Peer-to-Peer Wireless Networks ...33 4.9 About...35...

  • Page 3: Introduction

    1. Introduction Congratulations on your purchase of the Golden 150 Wireless Mini USB Adapter! Its high bandwidth combined with great wireless coverage delivers fast and reliable connection for all of your networking applications. The adapter will yield a higher throughput especially when it is used with AR570W Airlink101®...

  • Page 4: Install Wireless Usb Adapter

    2. Install Wireless USB Adapter This section provides instructions on how to install the Golden 150 Wireless Mini USB Adapter. The driver is installed along with the utility. Step 2.1 Insert the USB adapter into an available USB port of your computer. Step 2.2 Click Cancel when you see the Found New Hardware Wizard.
  • Page 5 Step 2.3 Insert the Installation CD in the CD drive. The Autorun screen will pop up. Select Install Utility and Driver from the menu.
  • Page 6 Note: If the Autorun screen doesn’t appear automatically go to Start, Run, and type D:\Utility\Setup.exe (where D is the letter of your CD drive) and click OK. Windows Vista Users: When you get warning message(s), make sure that you give permission to continue with the installation of the driver software.
  • Page 7 Step 2.6 For Windows XP, click on Continue Anyway. For Windows Vista: click on Install this driver software anyway.
  • Page 8 Please wait when Windows is installing the driver for Airlink101 Wireless Adapter and the utility, Airlink101 Wireless Monitor. Step 2.7 Click Finish to complete the installation.
  • Page 9 Step 2.8 Select Yes, I want to restart my computer now. Click Finish to complete the installation. The driver and utility have been installed. Please continue to the next section.

  • Page 10: Connect To Wireless Network

    3. Connect to Wireless Network This section describes how to connect your wireless USB adapter to a wireless network. Step 3.1 Open the Airlink101 Wireless Monitor utility by double clicking on the Airlink101 Wireless Monitor Utility icon in the system tray at the bottom right-hand corner of your screen.
  • Page 11 1. Push the Easy Setup Button of the Adapter until you see the following window pops up on the monitor. This window pops up to acknowledge you the Adapter is starting to establish a connection. 2. Within the following 2 minutes, push the Easy Setup Button (i.e. WPS Button) on the back of the Router and release it right away.
  • Page 12 3. The router will now start the handshake with the wireless USB adapter. The connection will be established in few seconds. Continue to Step 3.5. If the connection is not able to establish, continue to Step 3.3. Step 3.3 Click the Available Network tab of the Wireless Monitor, select the wireless network that you wish to connect to, and click Add to Profile.
  • Page 13 Step 3.5 The connection should be now established. Go to General tab to check the status of the connection. Verify that IP Address, Subnet Mask and Gateway have valid numbers assigned to them (instead of all 0’s). The Status should be Associated, and there will be green bars next to Signal Strength and Link Quality.

  • Page 15: Wireless Monitor

    4. Wireless Monitor This section describes the various functions of the Wireless Monitor that you can configure, including the settings of wireless encryption. 4.1 General The General tab provides you with the status of the current connection, including signal, network name (SSID) and IP Address. At the bottom, you have options for controlling the utility and adapter: Show Tray Icon: Check this box to show or hide the utility icon on the task bar.
  • Page 16 Radio Off: Check/uncheck this box to turn off/on the wireless function of the adapter. Disable Adapter: Check/uncheck this box to disable/enable the wireless adapter. For Windows XP users, you will see a checkbox “Windows Zero Config” which can be used to enable or disable the Windows XP’s built-in wireless utility, Windows Zero Configuration.

  • Page 17: Profile Settings

    4.2 Profile Settings The Profile tab lists the current profiles and allows you to add/remove/edit profiles. The Available Profile(s) box lists all the profiles that you’ve created for your network. A profile is automatically created and added to this list when you connect to a new network. You can also manually add a profile.
  • Page 18 To create a new profile, click on Add. The Profile box will appear allowing you to specify the settings for your new profile. Enter the profile settings here, including Profile Name, SSID, Network Authentication, Data Encryption and Network Key. Click OK to save the changes. The section 4.7, Configuring Encryption will give you the information of how to set the different options of the wireless network encryption settings.

  • Page 19: Available Network

    4.3 Available Network The Available network tab lists all of the networks that the adapter detects in your area. Clicking Refresh will refresh the list. To connect to a network, select a network from the list and click Add to Profile.

  • Page 20: Status

    4.4 Status The status section provides you with a list of information about the current status of the adapter.

  • Page 21: Statistics

    4.5 Statistics The Statistics section gives you information about transmit and receive packet count.

  • Page 22: Wi-Fi Protected Setup (Easy Setup Button)

    4.6 Wi-Fi Protected Setup (Easy Setup Button) The Wi-Fi Protected Setup™ (Easy Setup Button) is a new and easy way to configure the encryption for your wireless network clients. In order to use it, you need to have a router that supports this feature, like the AR570W Airlink101 Wireless 150 Router. You also need to configure the wireless encryption on the router;...
  • Page 23 - For Pin Input Config method, click Pin Input Config (PIN) button, continue to Step 4.6.3a Step 4.6.2 When you see this window pops up, within the following 2 minutes, push the Easy Setup Button (i.e. WPS button) on the back of the router and release it right away.
  • Page 24 Select the Access Point that you want to connect, and then click Select. Write down the PIN Code on a piece of paper.
  • Page 25 (The following steps are different for each router. Please refer to the user’s manual of your router for detailed instructions.) Step 4.6.3b Log on to the router AR570W’s web configuration page from the browser (i.e. Internet Explore or Mozilla Firefox) and click on Wireless. Then click WPS. Step 4.6.3c Make sure that the Enable WPS is NOT checked.
  • Page 26 After a few moments both the router configuration screen and the adapter configuration screen should show a message telling you that a connection is established. Note: If you cannot connect successfully with WPS, you need to log in to your router’s configuration and make sure the WPS feature is enabled.

  • Page 27: Configuring Encryption

    4.7 Configuring Encryption This section describes the available encryption types and how to configure them. In most cases, encryption type will be automatically detected by the wireless USB adapter; all you need to do is to enter the Network key, as described in Section 3, Step 3.4. If you are creating a custom profile, you need to manually configure the encryption settings.
  • Page 28 4.7.1 Configuring WEP encryption Select WEP from the Data encryption box. Under Network Authentication, select either Shared key or Open System, depending on the router settings. If your WEP key is 5 or 13-digit, alphanumeric : • Check ASCII and enter your WEP key into the box next to Passphrase If you use Passphrase to setup the WEP encryption for your router : •...
  • Page 29 4.7.2 Configuring WPA/WPA2-PSK Encryption (for home users) Select WPA-PSK/WPA2-PSK from the Network Authentication box. Under Data encryption select either AES or TKIP depending on the settings for your router. Enter the encryption key that the router is using into the Network Key, Confirm network key boxes.
  • Page 30 4.7.3 Configuring WPA/WPA2 Encryption (for corporate networks) Select WPA 802.1x / WPA2 802.1x from the Network Authentication box and click OK. The following window will pop up after few seconds.
  • Page 31 You can choose a network authentication method: Protected EAP or Smart Card or other Certificate then click Settings to configure the advanced settings. 1) Choose Protected EAP then click on Settings to configure the advanced security settings.
  • Page 32 Configure the advanced security settings for PEAP then click OK. Refer to your system administrator for information about what settings you should enter here.
  • Page 33 2) Choose Smart Card or other Certificate then click on Settings to configure the advanced security settings. Refer to your system administrator for information about what settings you should enter here.

  • Page 34: Ad-Hoc And Peer-To-Peer Wireless Networks

    4.8 Ad-hoc and Peer-to-Peer Wireless Networks Ad-hoc networking is used when you want to connect two or more computers together without going through a router. In ad-hoc mode, you lose a lot of the features that come with a router. The maximum connection speed drops to 11Mbps.
  • Page 35 You can also choose between no security or WEP security. If you choose WEP security, you can follow the instructions in the Configuring Encryption section of the manual. Click OK to save the profile. Select your new profile from the Available Profile(s) box, and double click to enable it. You need to configure all other computers that you are planning on connecting to your ad-hoc network with the same settings that you input on this screen.

  • Page 36: About

    4.9 About The About window provides the information about the Wireless Monitor Utility version and the current driver version.

  • Page 37: Troubleshooting

    5. Troubleshooting 1. If you cannot open the wireless monitor utility, make sure that the USB adapter is inserted firmly into the USB port. 2. If you cannot connect to the wireless router, you may want to double check the wireless security settings on the router.

  • Page 38: Install Wireless Usb Adapter For Mac Os

    6. Install Wireless USB Adapter for MAC OS This section provides instructions on how to install the Golden 150 Wireless Mini USB Adapter. The driver is installed along with the utility. 6.1 Install Driver and Utility Step 1 Insert the USB adapter into an available USB port of the computer. Insert the provided CD into the CD drive.
  • Page 39 Step 3 Introduction: The “Install Airlink101 Wireless N USB Adapter” window will pop up. Click Continue. Step 4 Read Me: Click Continue to begin the installation.
  • Page 40 Step 5 License: Click Continue. Click Agree to install.
  • Page 41 Step 6 Select a Destination: select a destination volume to install the software, and click Continue. Step 7 Installation Type: click Install to perform a standard installation.
  • Page 42 Enter your password and click OK. Click Continue Installation. Step 8 Install: Wait while the software is being installed. Step 9 Finish Up: Click Restart to restart your computer.

  • Page 44: Connect To Wireless Network

    6.2 Connect to Wireless Network This section describes how to connect the wireless USB adapter to a wireless network. Step 1 Go to System Preferences > Network, select Network Port Configurations from Show. Step 2 Check the Ethernet Adaptor (Airlink101 Wireless USB Adapter) and uncheck AirPort.
  • Page 45 Step 3 Open the Airlink101 Wireless Monitor utility by double clicking on its icon in the system tray at the bottom of your screen.
  • Page 46 Airlink101 Wireless Monitor will display on your monitor. Step 4 Click the Available Network tab, select the SSID (Network Name) of the wireless network you wish to connect to, and click Add to Profile.
  • Page 47 If the network that you are attempting to connect does not have encryption enabled, will receive a warning about connecting to an unsecured network. Click OK to complete the connection. Go to Step 6. Step 5 Enter the network security key of your wireless router or AP into Network key and Confirm network key boxes.
  • Page 48 You can refer to Chapter 4, Wireless Monitor for the instructions of configuring Airlink101 Wireless Monitor.

  • Page 49: Appendix A - Specification

    Appendix A - Specification Frequency Band • 2.4Ghz Standards • IEEE 802.11b / 802.11g Interface • USB 2.0 Data Rate* • Downlink: 150Mbps • Uplink: 150Mbps Antenna type • Built-in 1 chip antennas Security • WPA2/WPA-PSK (TKIP, AES) • WEP 64, 128-bit •...

  • Page 50: Technical Support

    Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Web Site: www.airlink101.com *Theoretical maximum wireless signal rate derived from IEEE standard 802.11g and draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.
