Wireless 300N USB Adapter
Model # AWLL6090
User's Manual
Rev. 1.0

Advertisement

Table of Contents
loading

Related Manuals for Airlink101 AWLL6090

Summary of Contents for Airlink101 AWLL6090

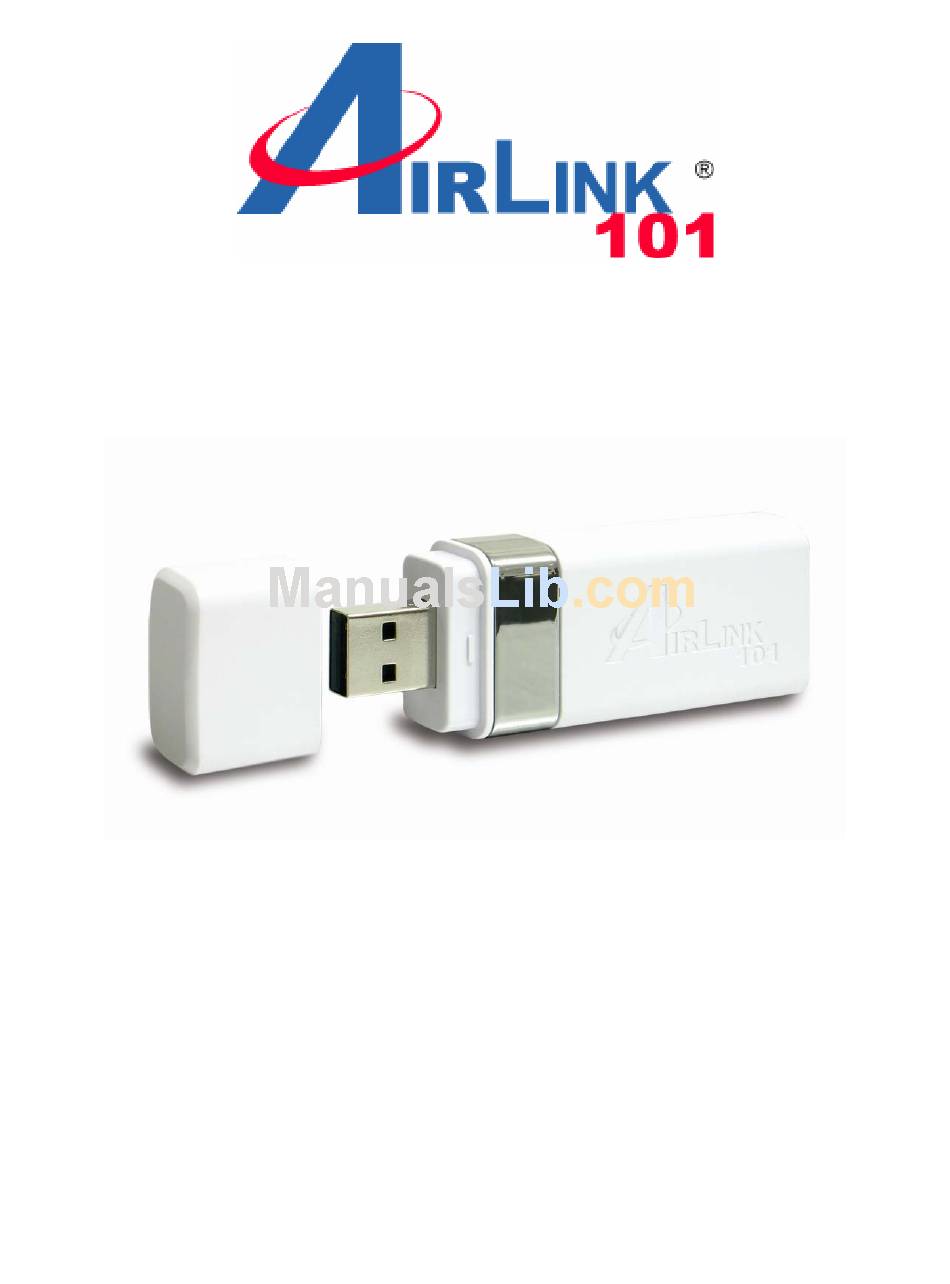

  • Page 1 Wireless 300N USB Adapter Model # AWLL6090 User’s Manual Rev. 1.0...

  • Page 2: Table Of Contents

    1. Introduction ... 3 1.1 Package Contents ... 3 1.2 Features ... 3 2. Installation ... 4 3. Configuring the Adapter ... 12 4. Wireless Monitor... 18 4.1 Wireless Information ... 18 4.2 AP List ... 19 4.3 Profile Settings... 20 4.4 Configuring Encryption ...

  • Page 3: Introduction

    Congratulations on your purchase of the Wireless 300N USB Adapter. Its high bandwidth combined with extended wireless coverage delivers fast and reliable connection for all of your networking applications when used with Airlink101® Wireless 300N Gigabit Router to achieve up to 300Mbps* data rate.

  • Page 4: Installation

    2. Installation This section provides instructions on how to install the Wireless 300N USB Adapter. The driver is installed along with the utility. Step 1 Insert the USB adapter into an available USB port on your computer. Step 2 Windows will launch the Found New Hardware Wizard. The Found New Hardware Wizard appears differently depending on your operating system.
  • Page 5 Note: If the Autorun screen doesn’t appear automatically, or if you get a blank white screen or a white screen shows up (your computer doesn’t have Adobe Flash Player installed), go to Start, Run, and type D:\Utility\Setup.exe (where D is the letter of your CD drive) and click OK.
  • Page 6 Step 4 Click Next at the welcome screen. Step 5 Click Next to accept the default destination folder.
  • Page 7 Step 6 Click Continue Anyway at the Windows Logo Screen. (For Windows 2000, click Yes at the Digital Signature Not Found prompt).
  • Page 8 For Windows Vista, click the Install this driver software anyway button when the security warning appears. Step 7 Click Yes, I want to restart my computer now and then Finish to restart your computer.
  • Page 9 Step 8 After the computer is restarted, Windows will ask to connect to Windows Update, select No, not this time and click Next. If this screen does not appear, you can skip to section 2.2. Step 9 Select Install the software automatically and click Next.
  • Page 10 Step 10 Click Continue Anyway at the Windows Logo Screen. (For Windows 2000, click Yes at the Digital Signature Not Found prompt).
  • Page 11 For Windows Vista, click the Install this driver software anyway button when the security warning appears. Step 11 Click Finish.

  • Page 12: Configuring The Adapter

    3. Configuring the Adapter This section describes how to connect your wireless adapter to a wireless network. Note to Windows XP Users: You must disable the Wireless Zero Configuration Utility in order to use the bundled Wireless Utility. Please follow the steps below to disable XP’s wireless utility. Windows Vista users can skip the following instructions and go to Step 1 Double-click on the Wireless Network Connection Icon in the system tray and then...
  • Page 13 Step 1 To open the utility, double click on the Wireless Monitor icon in the system tray at the bottom right-hand corner of your screen. Step 2 Go to the AP List tab, select the SSID (Network Name) of the wireless network you wish to connect to, and click Connect.
  • Page 14 If the network you are attempting to connect to is configured for encryption, you will see an orange lock icon next to the network.
  • Page 15 When you click on it and click connect, a box will pop up requesting the wireless encryption key for the router. Enter the encryption key into the box and click OK.
  • Page 16 Step 3 You should now be connected. You should see “Connected” in the top, right hand corner, and there will be a blue circle around the antenna icon next to the network name. Troubleshooting: If you are experiencing problems with the connection (unable to connect, low signal strength, slow connection speed, not working, unstable wireless connection) you will want to tune your router’s signal by changing channels on the router.
  • Page 17 restart the wireless computer before trying to connect again. Keep going through the channels until you find one that gives you a stable connection. For instructions on changing channels, refer to the documentation that came with your router.

  • Page 18: Wireless Monitor

    4. Wireless Monitor This section describes the various functions of the Wireless Monitor that you can configure, including the settings of wireless encryption. 4.1 Wireless Information The Wireless Information box at the top of the window provides you with the status of the current connection, including signal, network name (SSID), IP Address and router channel.

  • Page 19: Ap List

    4.2 AP List The AP List tab displays all the available wireless networks detected by the Wireless Adapter. Simply select the wireless network you wish to connect to and click Connect. If you have created multiple profiles, you can use the profile chooser at the bottom to select the specific profile you want to use.

  • Page 20: Profile Settings

    4.3 Profile Settings This section provides instructions on using the Profile Settings section of the wireless monitor. The My Wireless Networks box lists the different profiles you’ve created for the different networks that you use. Profiles are automatically created and added to this list when you connect to new networks.
  • Page 21 The Profile Settings box will appear allowing you to specify the settings for your new profile or change settings for your existing profile. Once you are finished entering the settings, click OK to save the changes.

  • Page 22: Configuring Encryption

    4.4 Configuring Encryption This section describes the different types of encryption available and how to configure them. In most cases, encryption will be automatically configured and all that will need to be entered is the key, as described in Section 3 Step 2.
  • Page 23 These three are meant for the home user: None: No encryption in use WEP: The most popular but least secure form of encryption WPA/WPA2-PSK: The most secure and recommended level of encryption The remaining two are for use in a corporate environment that utilizes authentication servers.
  • Page 24 Configuring WEP encryption Select WEP from the Set Security Option box. Under Wired Equivalent Privacy (WEP), you will want to select Shared or Open, depending on the router settings. In the Key box, you will want to type in the encryption key for the router. If you check the Show text in the password field box, your key will appear in the box as you are typing it instead of showing only asterisks.
  • Page 25 Configuring WPA/WPA2-PSK Encryption (for home users) Select WPA/WPA2-PSK from the Set Security Option box. Under Passphrase Settings select either TKIP or AES depending on the settings for your router. Enter the encryption key into the KEY box.
  • Page 26 Configuring WPA/WPA2 Encryption (for corporate networks) Select WPA/WPA2 from the Set Security Option box. Under Advanced Security Settings select either TKIP or AES depending on the settings for your router. Click on Advanced Config to enter your authentication settings. The adapter supports EAP-TLS, LEAP, EAP-TTLS, and PEAP authentication methods. Refer to your system administrator for information about what settings you should enter here.
  • Page 27 Configuring 802.1x authentication (for corporate networks) Select 802.1x from the Set Security Option box. Click on Advanced Config to enter your authentication settings.

  • Page 28: Ad-Hoc And Peer-To-Peer Wireless Networks

    The adapter supports EAP-TLS, LEAP, EAP-TTLS, and PEAP authentication methods. Refer to your system administrator for information about what settings you should enter here. 4.5 Ad-hoc and Peer-to-Peer Wireless Networks Ad-hoc networking is used when you want to connect two or more computers together but you don’t have a router.
  • Page 29 Open the Wireless Monitor. Click on Profile Setting, then click on New. The profile settings box will appear. First change the network type to Adhoc. (Infrastructure is for when you are using a router). Enter a profile name into the Profile Name box so that you can identify the profile. Type in a network name (SSID) into the SSID box Select your desired Channel You can also choose between no security or WEP security.
  • Page 30 Once that is done, click on the AP List. Select your new profile from the profile chooser and click Activate to enable the profile. You will need to configure all other computers that you are planning on connecting to your ad-hoc network with the same settings that you input on this screen. Every computer has to be set up exactly the same.

  • Page 31: Wi-Fi Protected Setup (Wps)

    In order to use it with your router, firstly, you will need to have a router that supports this feature, like the AR690W Airlink101 Wireless 300N Gigabit Router. Secondly, you must configure the wireless encryption on the router; you can find instructions for configuring it in the User Manual located on the CD that came with your router.
  • Page 32 Step 2 Choose your configuration method, either Push Button or Pin Code and click Next. Step 3a If you choose the Push Button method, make sure that you click on the Wi-Fi Protected Setup button.
  • Page 33 Step 3b Push the WPS button on the router, and the blue LED will start blinking. The router will now start the handshake with the wireless adapter, then the connection will be built up in couple minutes. Step 4a If you choose the Pin Code method, write down the PIN and click Next.
  • Page 34 Step 4b Log in to your router’s configuration page from the web browser and click on Wireless. Then click Wireless security. Make sure that the Wi-Fi Protected Setup Enable box is checked. Click the Add Wireless Device Wizard button. Step 4c Enter the Pin Code in the Pin Number box and click Connect.
  • Page 35 Step 5 Click Finish on the WPS Connection screen. Note: If you cannot connect successfully with WPS, you need to log in to your router’s configuration and click on Wireless. Then click Wireless security. Make sure that the Wi-Fi Protected Setup Enable box is checked.

  • Page 36: About

    4.7 About The About tab shows the Utility, Driver versions, and the MAC address of the adapter.

  • Page 37: Appendix A - Features

    Appendix A – Features Frequency Band • 2.4 GHz Standards • IEEE 802.11b / 802.11g • 802.11n draft 2.0 Interface • USB 2.0 Security • WPA-PSK (TKIP) • WPA2-PSK (AES) Transmitted Power • 802.11b: 17 dBm • 802.11g: 14 dBm •...

  • Page 38: Appendix B - Information

    Appendix B – Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 39 Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: IC Radiation Exposure Statement:...

  • Page 40: Technical Support

    (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Copyright ©2008 AirLink101®...
