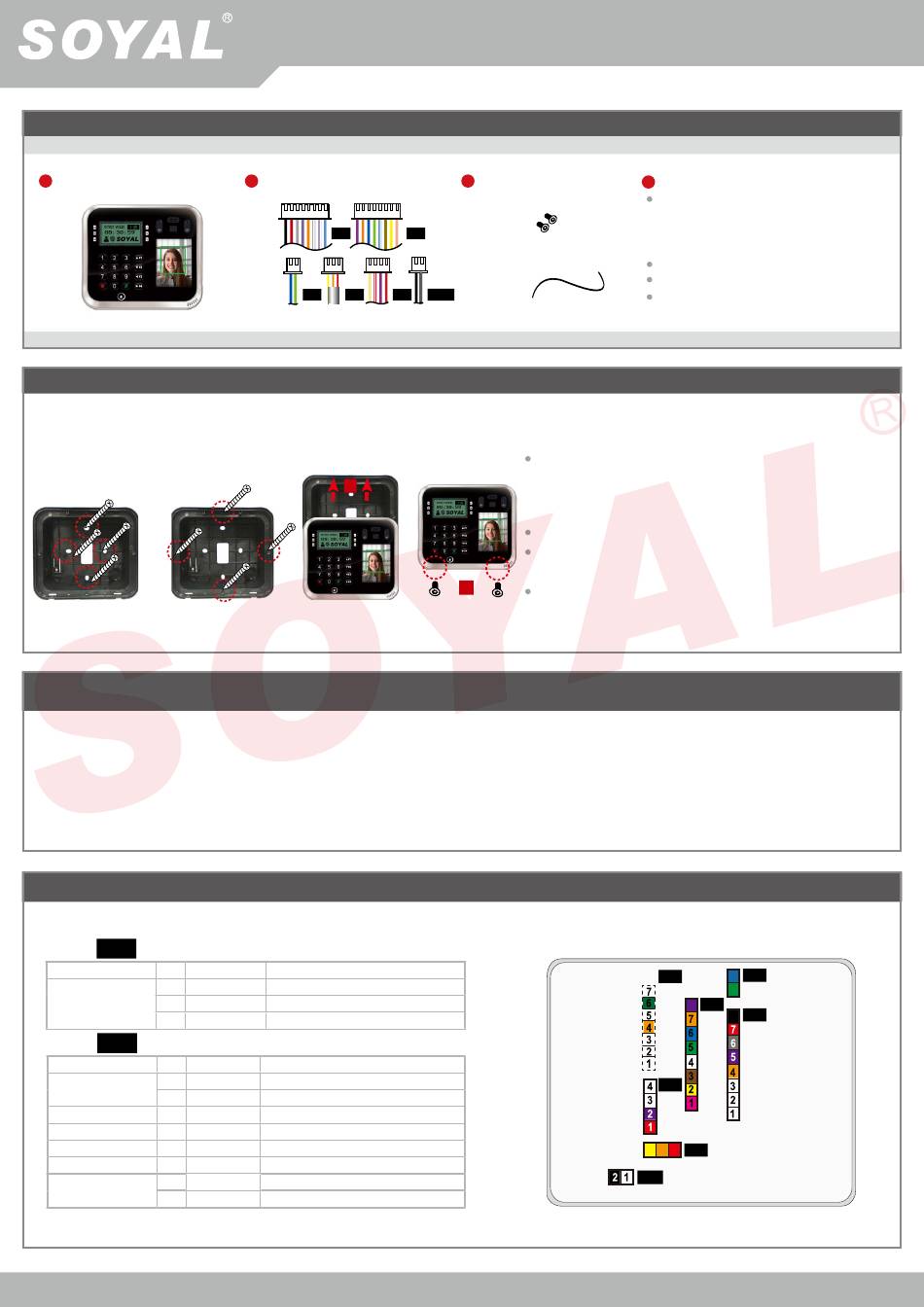

Soyal AR-837-EA Quick Start Manual

ACCESS & INDUSTRIAL CONTROL
Contents

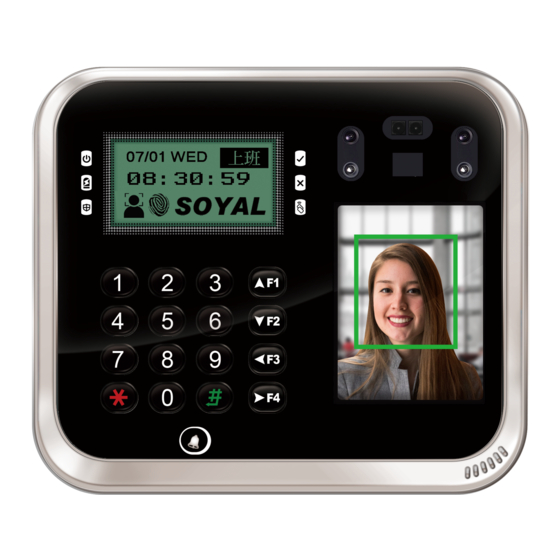

AR-837-EA: Face recognition
1 Products
Or
Installation
A-1.Surface A-2.Embedded
Mounted
或
Notice
1.Tubing:
The communication wires and power line should NOT be bound in the same conduit or tubing.
2.Wire selection: Use AWG 22-24 Shielded Twist Pair to avoid star wiring, CAT 5 cable for TCP/IP connection
3.Power supply: Don't equip reader and lock with the same power supply. The power for reader may be unstable when the lock is activating, that may cause a
malfunction in the reader.
The standard installation: Door relay and lock use the same power supply, and reader should use another independent power supply.
Connector Table (1)
Cable: CN3
Wire Application Wire
Anti-Tamper Switch 1
2
3
CN4
Cable:
Wire Application Wire
Lock Relay 1
2
Lock Relay COM 3
Door Contact 4
Exit Switch 5
Alarm Relay 6
Power 7
8
2 Terminal Cables
CN4
CN6 CN3
B.
1
Color Description
Red N.C.
Orange COM
Yellow N.O.
Color Description
Blue White (N.O.)DC24V1Amp
Purple White (N.C.)DC24V1Amp
White (COM)DC24V1Amp
Orange Negative Trigger Input
Purple Negative Trigger Input
Gray N.O./N.C. Optional (by jumper)
Thick Red DC 12V
Thick Black DC 0V
AR-837-EA
3 Tools
Screws
CN5
Water proof Strip
CN8 CN13
A-1.Surface Mounted: Use a screwdriver to screw the mounting plate
to the wall.
A-2.Embedded: To dig a hole for 128mmx109mm; and then, use a
screwdriver to screw the mounting plate to the wall.
Pull cable ends through the access hole in the mounting plate.
Attach AR-837-EA to the mounting plate and install screws (supplied)
into the holes at the bottom with the allen key.
2
Apply power. LED (green) will light up with one beep.
4 Optional
Ethernet : DMOD-NETMA10
(TCP/IP Module included RJ45 Connector)
or
DMOD-NETMA11
(TCP/IP Module with POE function)
Any Wiegand Output Module
AR-MDL-721V
(Voice Module)
AR-321L485-5V
(TTL to RS-485 Converter)
2
CN6
CN7
1
8
CN5
8
CN4
CN8
3 2 1
CN3
CN13
V210824
(CN10)
