Quick Installation Guide

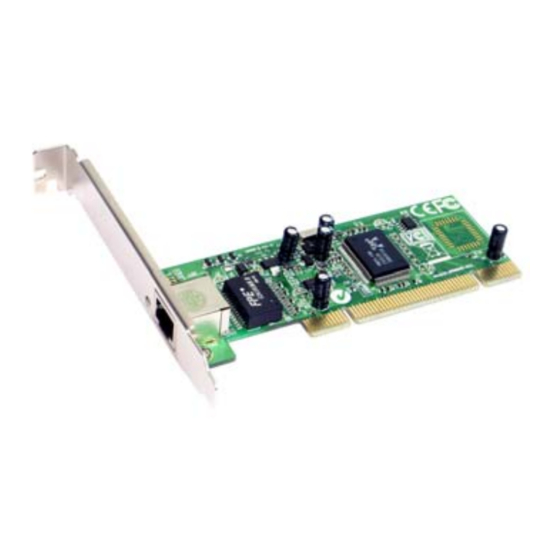

10/100/1000Mbps PCI Network Adapter
Section 1
Hardware Installation
Thanks for your purchase of Airlink101® 10/100/1000Mbps PCI Network
Adapter. The Installation of the 10/100/1000Mbps PCI Network Adapter
requires hardware installation first and then driver installation.
Step 1
Switch off the computer, unplug the power cord, and remove the
computer's cover.
Step 2
Select an unused PCI slot and remove its protective bracket.
Step 3
Carefully insert the Adapter and press until all the edge connectors
are firmly seated inside the slot. Then, screw the Adapter's bracket securely
into the PC's chassis.
Step 4
Install the bracket screw, which secures the Adapter to the
computer's chassis.
Model # AGIGA32PCI
Package Contents:
• 10/100/1000Mbps PCI
Network Adapter
• Quick Installation Guide
• Driver CD
Ver. 1A
Advertisement
Table of Contents
Related Manuals for Airlink101 AGIGA32PCI
Summary of Contents for Airlink101 AGIGA32PCI
-
Page 1: Quick Installation Guide
Quick Installation Guide 10/100/1000Mbps PCI Network Adapter Model # AGIGA32PCI Section 1 Hardware Installation Thanks for your purchase of Airlink101® 10/100/1000Mbps PCI Network Adapter. The Installation of the 10/100/1000Mbps PCI Network Adapter requires hardware installation first and then driver installation. -
Page 2: Driver Installation
Step 5 Replace the computer’s cover and connect the network cable to the newly installed network Adapter. Reconnect the computer’s power cord and plug it into the power outlet. Section 2 Driver Installation Usually for Windows XP or above, the adapter’s driver is already included in the OS, and after you install the network adapter, your system will automatically install the driver for you. - Page 3 Windows 2000: Click Next at the Found New Hardware Wizard. Select Search for a suitable driver for my device (recommended) and click Next. Windows ME: Click Next at the Add New Hardware Wizard. Select Specify the location of the driver (Advanced) and click Next. Windows 98SE: Click Next at the Add New Hardware Wizard.
- Page 4 Step 3 Click Next to install the driver. Step 4 Click Continue Anyway at the Windows Logo Compatibility message.
-
Page 5: Technical Support
Windows 2000: Click Yes to continue. Windows ME: Insert the Windows ME CD-ROM and click OK. Windows 98SE: Insert the Windows 98SE CD-ROM and click OK. Step 5 Click Finish. Restart your computer. Section 3 Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Website: www.airlink101.com *Actual throughput will vary.
