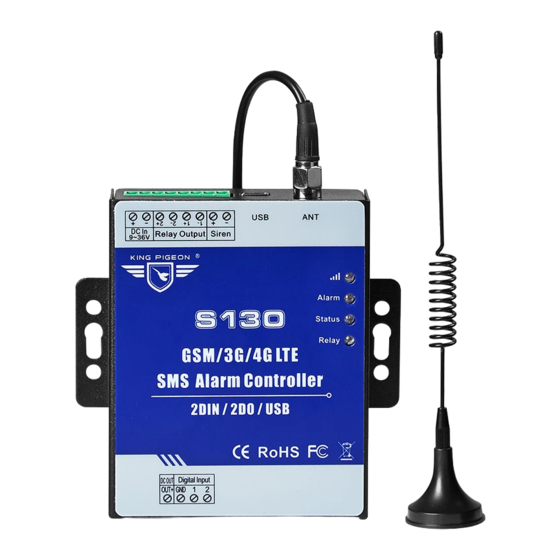

Remote Alarm Controller
Digital Input Monitoring Alarm Unit
GSM/SMS/3G/4G
Remote switching machines
with a SMS text from your
mobile phone!
Remote Monitoring your
assets in the worldwide by
your mobile Phone!
S130/S140/S150
User Manual
Ver 2.0
Date Issued: 2017-05-17
King Pigeon Hi-Tech. Co., Ltd.
www.GPRS-M2M.com
Advertisement
Table of Contents
Related Manuals for King Pigeon S130
Summary of Contents for King Pigeon S130
- Page 1 Remote Monitoring your assets in the worldwide by your mobile Phone! Please scan the barcode to download the APP GSM/SMS/3G/4G Remote Alarm Controller Digital Input Monitoring Alarm Unit S130/S140/S150 User Manual Ver 2.0 Date Issued: 2017-05-17 King Pigeon Hi-Tech. Co., Ltd. www.GPRS-M2M.com...
-
Page 2: Table Of Contents
Upgrade Firmware----------------------------------------------------------- 18 Warranty ----------------------------------------------------------------------------18 This handbook has been designed as a guide to the installation and operation of S130/140/150 GSM SMS 3G 4G remote Alarm Controller.Statements contained in the handbook are general guidelines only and in no way are designed to supersede the instructions contained with other products.We recommend that the advice of a registered... -
Page 3: Brief Introduction
Please install the product at suitable places as described in the product documentation. Avoid signal shielded by covering the mainframe. Use Qualified Maintenance Service Maintenance can be carried out only by qualified maintainer. Page 3 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0... -
Page 4: Standard Packing List
Support USB configure parameters, load profiles, and upgrade the firmware via PC; Wall mount or 35mm standard DIN rail Design, convenient installation, Metallic cover, small size, exterior dimension is L70*W88*H30mm. Page 4 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0... -
Page 5: Physical Layout And Installation Diagram
Alarm indicator, while alarm occurrence, will turn on. Armed indicator, in Armed mode, will turn on, in disarm mode, will turn off. Relay indicator, any one relay close, will turn on. Page 5 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0... - Page 6 3) Connect electrical device to Relay outputs. The unit provides 2 relay outputs; it can be used for control different device according to requirements. The connection diagram is below: Page 6 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
-
Page 7: Initialize/Reset The Gsm Unit
The PC Configuration in the CD, please click it to run it. Also can download from www.GPRS-M2M.com under S130/140/150 page directly. Below is the steps to setup the parameters by PC Configuration, please follow it step by step. Page 7 of 18 King Pigeon Hi-Tech. - Page 8 In some computer, it required download net framework 4.0 while installation, then please click “Yes” to go Tips: to Microsoft website to download this service pack. Step5: Choose the correct "COM port", then can start to programming Details please check the picture as below: Page 8 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
- Page 9 If you tick the Don’t Care means when this input recovered, will not send SMS to SMS Alert Contents Alert Numbers. If you like to get SMS alert when the Inputs recovered, then please don’t Page 9 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
- Page 10 If it hasn’t show the setup successful, it means the setup is failure, please check the Com port and USB connection, then try to repeat the Step1~Step7 again. Page 10 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
- Page 11 9. The SMS commands that you will certainly use in the GSM units are the following: **SMS Commands For Operation the S130/140/150** The users can Arm/Disarm/Inquiry system status, Switch on or off the independent output relay by sending SMS Commands to the Control unit.
-
Page 12: Installation
1) Please setup the Disable(Default), NC, NO, EOL type in the PC Configurator correctly; 2) If you setup the input type as Disable (Default), then the input port will be invalid. We recommend customer setup the Page 12 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0... - Page 13 4) If you setup the input type as NO, the detector type must be NO, and if more than one detector contact to one input port, they’re must be in parallel connection. Please see the below diagram. Page 13 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
- Page 14 NO detector contact to one input port, all detectors are NO type, and must be in parallel connection with a 2.2K Resistor, the 2.2K Resistor must be placed in the last detector. Please see the below diagram. Page 14 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
- Page 15 Also, the user can use the SMS Command to switch on or switch off the Pump motor when use the independent output relay. This solution is suitable for lots of other similar monitoring applications. Page 15 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
- Page 16 Also, the user can use the SMS Command to switch on or switch off the Pump motor when use the independent output relay. This solution is suitable for lots of other similar monitoring applications. Page 16 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
- Page 17 Also, the user can use the SMS Command to switch on or switch off the air conditioner when use the independent output relay. This solution is suitable for lots of other similar monitoring applications. Page 17 of 18 King Pigeon Hi-Tech. Co., Ltd. Ver 2.0...
-
Page 18: Trouble Shooting Guide
11. Upgrade Firmware The S130/140/150 supports upgrade firmware via USB port directly. If we upgraded the firmware functions of the data loggers, we will inform you to upgrade the firmware if you required. If there any new requirements of the present functions caused it should update the firmware, the user can upgrade them directly by USB port.
