Remote switching machines with a SMS text from your mobile phone!
Remote Monitoring your assets in the worldwide by your mobile Phone!

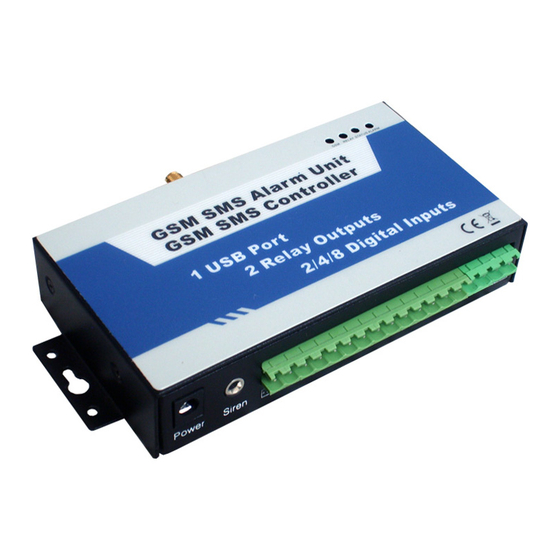

GSM SMS Controller
GSM SMS Alarm Unit
S130 S140 S150
User Manual
Ver 1.50 Date Issued: 2011-04-06
Table of contents
Brief introduction ----------------------------------------------------------------------------3
1.
Advertisement
Related Manuals for King Pigeon S130
Summary of Contents for King Pigeon S130

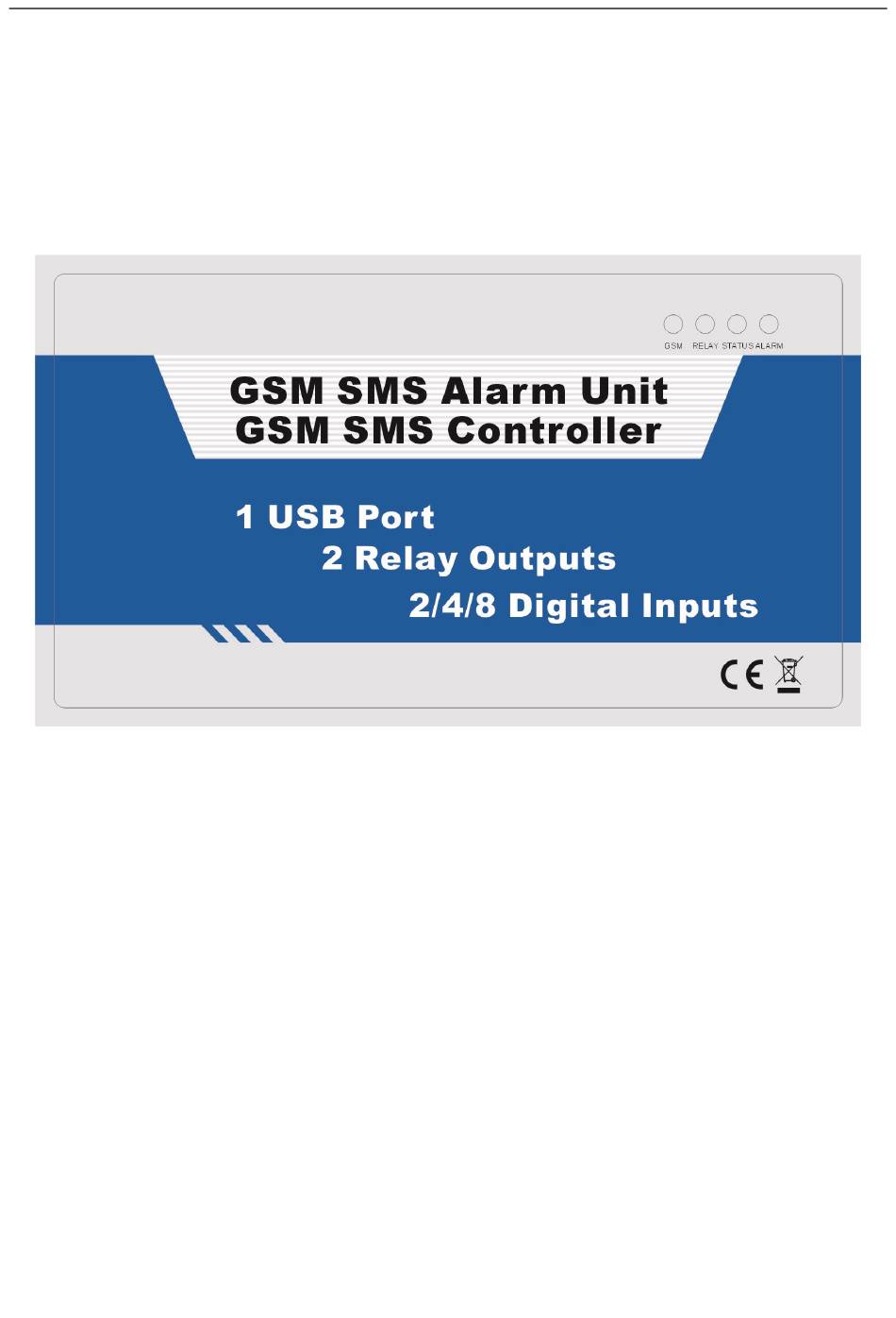

- Page 1 Remote switching machines with a SMS text from your mobile phone! Remote Monitoring your assets in the worldwide by your mobile Phone! GSM SMS Controller GSM SMS Alarm Unit S130 S140 S150 User Manual Ver 1.50 Date Issued: 2011-04-06 Table of contents...
-
Page 2: Table Of Contents
Physical Layout ------------------------------------------------------------------------------4 Features ---------------------------------------------------------------------------------------5 Settings ----------------------------------------------------------------------------------------6 Operation --------------------------------------------------------------------------------------9 Installation -----------------------------------------------------------------------------------10 Technical specifications ----------------------------------------------------------------17 Quality Warranty ---------------------------------------------------------------------------17 Trouble Shooting Guide------------------------------------------------------------------17 Model List Model No. Differences S130 2 Digital inputs, 1 Alarm Link output relay, 1 independent output relay for SMS Commands. - Page 3 8 Digital inputs, 1 Alarm Link output relay, 1 independent output relay for SMS Commands. S150 Notice: The PC Configurator is free of charge, suitable for S130, S140, S150. For S130, only the input1 and input2 are valid; For S140, only the input1, input2, input3, input4 are valid. For S150, all inputs are valid.
-
Page 4: Safety Directions
2.Safety Directions Safe Startup Do not use GSM SMS Controller when using GSM equipment is prohibited or might bring disturbance or danger. Interference All wireless equipment might interfere network signals of GSM SMS Controller and influence its performance. Avoid Use at Gas Station Do not use GSM SMS Controller at a gas station. - Page 5 Interface 1 Instruction For listening in the sounds around the GSM SMS Controllers while alarm, the Microphone is needn’t power, it is the same type for the computer. For two way voice communication. When the authorized numbers dial in, the unit will check the incoming number, if matched, then can create two-way voice communication.
-
Page 6: Features
electrode. Alarm-Link Output Relay. Alarm-Link Output Relay. Built in 240VAC@3A rated relay output, connect to the device negative electrode. Alarm-Link Output Relay. Independent Output Relay. Built in 240VAC@3A rated relay output, connect to the device positive electrode. Independent Output Relay. Built in 240VAC@3A rated relay output, connect to the device negative electrode. - Page 7 Please insert the SIMCard firstly, and install the GSM Antenna, please power on to check the LEDs can work or not, then switch off it before you program it by PC Configurator. The default password is 1234, you can modify it by enter the new password in the PC Configurator. Two way communication: While the authorized users incoming call, the GSM SMS Controller unit will automatically answer the call, then the two-way voice communication will be created.
- Page 8 Please following the below steps one by one to setup it, otherwise you can not setup it successfully. Step1: Please Contact the unit to the PC, and then install the USB Driver to the computer from the CD firstly. When successful, it can be found out at the device manager of the XP or Windows 7, please see the below photo.
- Page 9 Step2: Please insert the SIMCard into the GSM SMS Controller carefully; Step3: Please running the PC Configurator, needn’t installed it; Step4: Please connect the GSM SMS Controller to the computer through USB cable, but please don’t switch on the GSM SMS Controller, otherwise, the setup will be failure;...
- Page 10 Step5: Please setup the GSM SMS Controller parameters, the details please see below Function Table 1; Step6: After you finished the setup, then press “Save Settings” button then switch on the GSM SMS controller, after 2Seconds, it will alert the Setup successful. If it hasn’t prompted the setup successful, it means the setup is failure, please check the Com port and USB connection.
- Page 11 Tick it to setup the siren make sounds for 60 seconds when Alarm occurrence. Sound Alarm Tick it to setup when the unit detected no GSM signal for more than 90 seconds, the siren GSM Jammer should sound 60seconds, and alarm-link output relay close 4minutes.(Don’t recommend) Tick it to setup the unit to arm mode once power on.
- Page 12 Notice: The system will carry out the commands immediately (with no delay) after the Control Unit receive this SMS commands. 7.1 Armed xxxxAA Example “xxxx” stands for the password 1234AA (1-4 digits). Return SMS When the Password is 1234 Armed Mode activated. 7.2 Disarm xxxxBB Example...
-
Page 13: Installation
8. Installation Before installing the control unit and detectors and sirens, please help to test the system firstly, including wired detector, power supply, gsm signal, etc. 8.1 Insert SIMcard into Control Unit In the backside of the control unit, please install the GSM SIM card . - Page 14 4) If you setup the input type as NO, the detector type must be NO, and if more than one detector contact to one input port, they’re must be in parallel connection. Please see the below diagram. 5) If you setup the input type as EOL, (This type is very useful to monitor the detectors connection condition; intruders cut the detectors’...
- Page 15 2.2K Resistor, the 2.2K Resistor must be placed in the last detector. Please see the below diagram. if the detector is NO type, then must be in parallel connection with a 2.2K Resistor; if more than one NO detector contact to one input port, all detectors are NO type, and must be in parallel connection with a 2.2K Resistor, the 2.2K Resistor must be placed in the last detector.
- Page 16 Security Alarm System applications; Supervision and monitoring alarm systems; Automatic monitoring system; Vending Machines security protection; Pumping Stations, Tanks, Oil or Water levels; Buildings and Real Estate; Weather Stations, River Monitoring and Flood Control; Oil and gas pipelines, Corrosion protection Temperatures, water leakage applications, Wellheads, boat, vehicle;...
- Page 17 Explanation: Use the water level detector (WL-04) to detect the water level, it can detect the low level and high level, two wires for low level, connecting to input 1, two wires for high level, connecting to input 2. Set the SIMCard Number in B side GSM SMS Controller as the first SMS Alarm number in A side GSM SMS Controller, and modify the SMS Alert content as 1234CC (1234 stands for password) to input 1, 1234DD to input 2.
- Page 18 This solution is suitable for the tank nearby the Pump motor, and the owner know how many minutes that the pump motor can fill the water to the high level. The water level detector can use other types. Also, the user can use the SMS Command to switch on or switch off the Pump motor when use the independent output relay.
- Page 19 8.3 Install the Mainframe The mainframe should be installed in the position that person can not get it, and there’re with a power source as well as enough GSM signal coverage. 8.4 Install the Speak and Microphone to the Mainframe The GSM SMS Controller allows the authorized users call in to create two way voice communications, also, when the system alarm, the authorized number can listen in the on-site sounds.
-
Page 20: Technical Specifications
While you install the Microphone and Speaker, please make sure keep it away from the GSM SMS Controller at least 1meters and far from the siren if possible. 9. Technical specifications Rated Voltage: 12VDC@ 2A Working temperature: -10℃～+60℃ Storage temperature: -20℃～+60℃ Relative humidity: 10-90%, No condensation GSM frequency:...
