GSM Gate Opener
Remote Relay Switch
SEMENOVIP.RU
GSM Gate, Barrier, Shutter, Garage
Door and Door opener
Open gate or garage door with a FREE
call from your mobile phone!
Remote switching machines with a
FREE call from your mobile phone!
New version with a battery inside to
V2019 Support power failure alert
User Manual
For V2019 and V2017
RTU5024 V2.0
Date Issued: 2019-01-08
All rights reserved
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTU5024 and is the answer not in the manual?

Questions and answers

Related Manuals for King Pigeon RTU5024

Summary of Contents for King Pigeon RTU5024

  • Page 1 FREE call from your mobile phone! New version with a battery inside to V2019 Support power failure alert GSM Gate Opener Remote Relay Switch User Manual For V2019 and V2017 RTU5024 V2.0 Date Issued: 2019-01-08 Приобрести на SEMENOVIP.RU: All rights reserved SEMENOVIP.RU...
  • Page 2 Контроллер RTU5024 в магазине Инструкция на русском к RTU5024 https://semenovip.ru/index.php?route=product/searc (v 1.0 rv1) h&search=RTU5024 https://semenovip.ru/manuals/RTU/RTU5024_manual _RUS_v1_0_rv1_semenovip.ru.pdf Приложение для Android Play Маркете для RTU5024 Видеоистуркция по настройке RTU 5024 со https://play.google.com/store/apps/details?id=com.ji смартфона nge.gsmgateopener_rtu5024 https://youtu.be/1PmG5IRJfQQ Инструкция на английском к RTU5024 Программное обеспечение и драйвера для...
  • Page 3 RTU5024 RED 2017 Настройка через USB Этот лист в PDF видеоинструкция https://semenovip.ru/manuals/RTU/RTU5024/RTU5 https://youtu.be/jhFXNK9bmjE 024_Hyperlink_and_QR_v5.pdf Приложение для Android для RTU5024 с интерфейсом на русском языке https://semenovip.ru/manuals/RTU/RTU5024/RTU5 024_14_RUS.apk SEMENOVIP.RU...

  • Page 4: Table Of Contents

    9. Authorized users list paper--------------------------------------------------------------11 This handbook has been designed as a guide to the installation and operation of V2017 / V2019 RTU5024 Gate Opener. Statements contained in the handbook are general guidelines only and in no way are designed to supersede the instructions contained with other products.

  • Page 5: Product Details

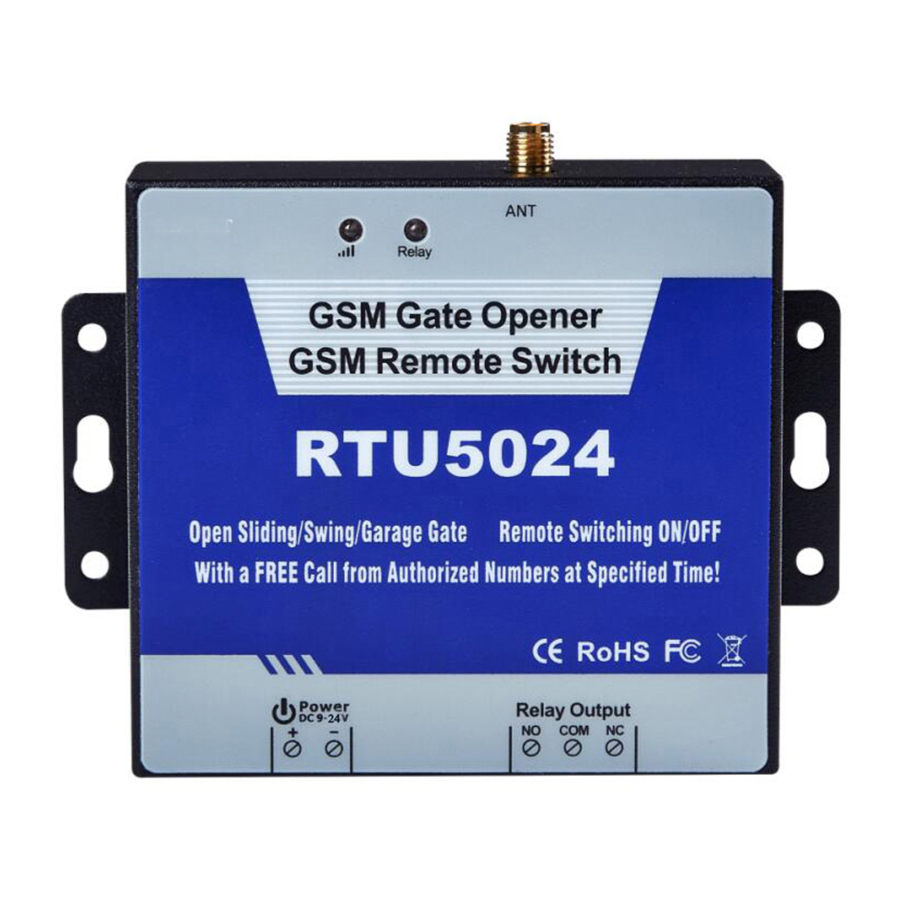

    FREE call from your mobile phone. Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or off by the RTU5024. There are no call costs, the RTU5024 rejects the call from authorized number then carries out the turn ON/OFF action.

  • Page 6: Applications

    1.5 Applications: Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!  Residential: Door,gate,garage access control, electronic fan,microwave,air-conditioner control.  Industry: Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.  Agriculture: Remote control pumps, etc.

  • Page 7: Diagram

    4. Typical wiring connection: RTU5024 for Gate opener: RTU5024 for remote switch: Power up the RTU5024 and electronic lock by same DC source,the The pump switched ON/OFF by phone call. Pump power up by the lock switched ON/OFF by phone call.
  • Page 8 5. The pwd in the command means the password,like 1234 or 5678 if you have changed. 6. If the RTU5024 used for gate access only,all you need to do is to change the default password and add the authorized numbers.

  • Page 9: Change Password

    Press and hold the RESET button(closed to the SIM card holder), then power ON,after 3 seconds later,MCU LED will start to flash 5 times, the RTU5024 will only reset password to 1234. This operation will reset the password to default 1234 and other parameters, but the authorized users numbers will remain on the memory.
  • Page 10 ON, for relay OFF. ab: the ID code of the 1 number(a) and the caller number(b), =0 means disable, =1 means enable. content: confirmation SMS content. ID code RTU5024 send notify SMS to The 1 number Caller number √ √...
  • Page 11 5.3.5 Need or No need confirmation SMS when the relay is ON/OFF. pwdGON## pwdGOFF## 5.3.6 Control the relay ON/OFF by SMS command Return SMS: Relay Toggled for 02 seconds (or the SMS content which you modified before) pwdCC pwdCD Return SMS: Relay ON (or the SMS confirmation content which you modified before) Return SMS: Relay OFF (or the SMS confirmation content which you modified before) pwdDD pwdGOTclose time#...
  • Page 12 Check the Virtual COM Number which is created in the PC Windows “Device Manager ” Then Run the RTU5024 PC software and press the “open” to open the right com port. Input the right password and Press the next "Login" button to connect to the RTU5024...

  • Page 13: Important Information

    1) In case of failure, please contact the distributor or manufacturer. 2) If the RTU5024 works but fail to send SMS texts, switch the power off and on again after one minute. Test it after few minutes later,or ensure and check the settings are correct and the cellular signal strong enough.
