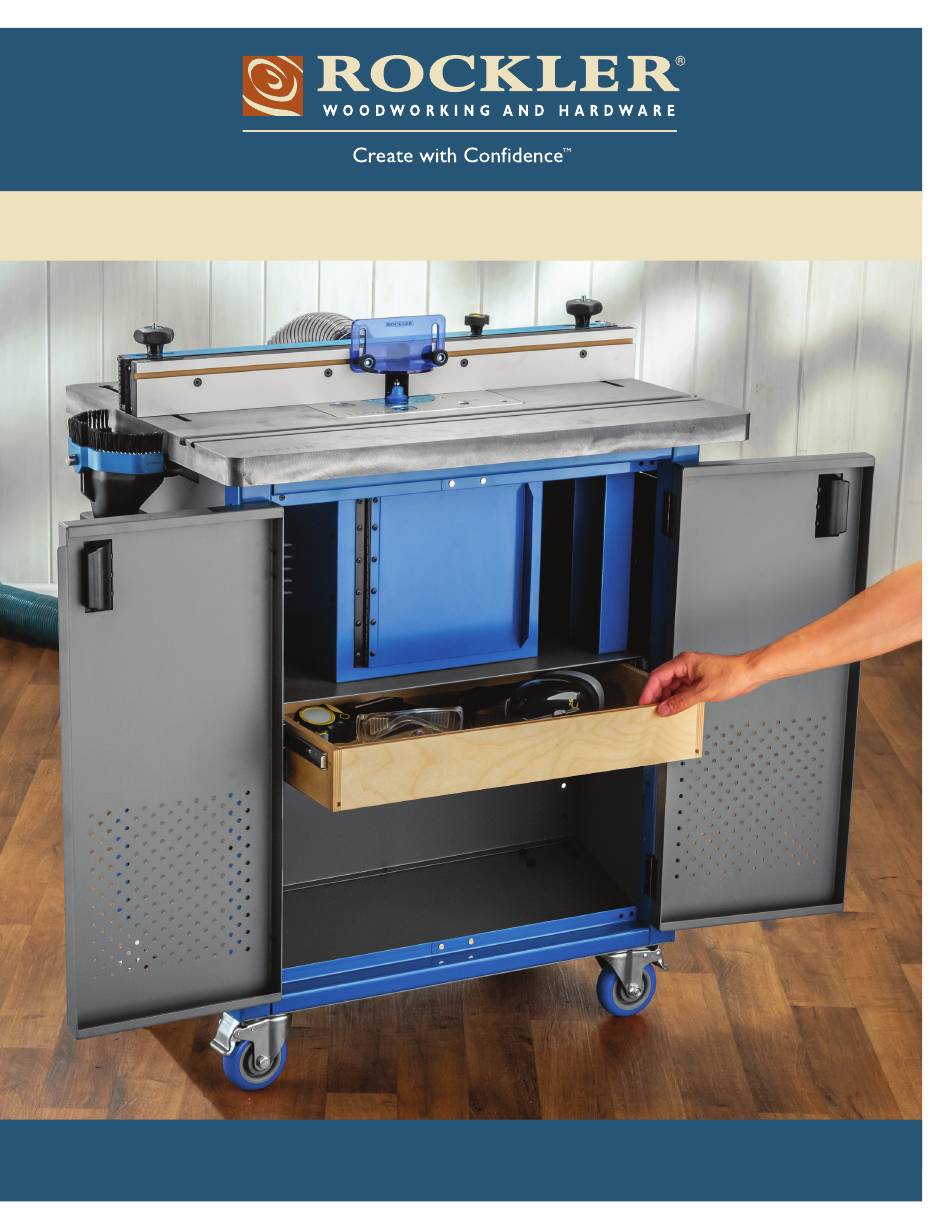

- Page 1 Steel Router Table Cabinet Assembly Instructions Effective September 2020 Review full instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent version of instructions for your product.
-
Page 2: General Safety Warnings
Instructions and safety warnings for your product (see the • Keep children and bystanders away from the tool Instructions link on the product page at Rockler.com). operating area; • Do NOT use power tools in explosive environments, or in the presence of flammable liquids, fumes or dust;... -
Page 3: Parts List
PRODUCT SPECIFIC SAFETY WARNINGS > The Steel Router Table Cabinet is assembled with Phillips-head self-tapping screws. Tighten the screws until they “bite” and are fully installed. Do NOT overtighten, or you risk stripping the mounting holes and reducing the screws’ effectiveness. Fig. - Page 4 Fig. 2 PARTS LIST Quantity Rear Corner Bracket Left Front Corner Bracket Left Side Panel 10 Right Front Corner Bracket 11 Right Side Panel 12 Left Drawer Slide Bracket 13 Right Drawer Slide Bracket SCREW LIST Quantity S1 M4 x 3/8" Pan-Head Self-Tapping Screw S2 M6 x 1/2"...
- Page 5 Left side assembly Right side assembly Fig. 4 5. Fit the two Left Drawer Slide Brackets (12) between the Left Front Corner Bracket (8) and Rear Corner Bracket (7) and up against the Left Side Panel (9). Align the top Left Drawer Slide Bracket with the top set of large mounting holes in the Left Side Panel assembly;...
- Page 6 9. Attach the Left and Right Side Panel assemblies to the Back PARTS LIST Panel (17) with three M4 x 3/8" Pan-Head Self-Tapping Quantity Screws (S1) driven into the three smaller mounting holes in each of the Rear Corner Brackets (8). Then drive two Front Rail M6 x 1/2"...
- Page 7 Fig. 8 Fig. 9 Fig. 10...
- Page 8 Fig. 11 Bucket Right Side Panel (20) with two M4 x 3/8" PARTS LIST Pan-Head Self-Tapping Screws in the two outer Quantity holes. (Two other screws will be installed in the next step.) Fig. 11. 19 Dust Bucket Left Side Panel 20 Dust Bucket Right Side Panel 2.
- Page 9 Fig. 12 Fig. 13...
- Page 10 PARTS LIST Quantity Dust Bucket Rear 30 Left Rear Louver Panel Panel assembly 31 Right Rear Louver Panel 36 Switch Bracket SCREW LIST Quantity S1 M4 x 3/8" Pan-Head Self-Tapping Screw 7. Position the Dust Bucket Rear Panel assembly against the rear edges of the Dust Bucket Left and Right Side Panels (19 and 20), making sure that the flanges of the Rear Panel (29) overlap the Side Panels.
- Page 11 2. Secure the Left and Right Rear Louver Panels (30 and 31) to the Rear Corner Brackets (8) with two M4 x 3/8" Pan-Head Self-Tapping Screws (S1) on each side. Fig. 17. Installing Safety Power Tool Switch Bracket The Steel Router Table Cabinet includes a Switch Bracket (36) and an opening for mounting the optional Safety Power Tool Switch (20915, sold separately).
- Page 12 Fig. 19 Fig. 20...
- Page 13 Opening for Dust Right Router Table Dado Dust Chute (57495, sold separately) Fig. 21 Attaching the Cabinet Top and Doors PARTS LIST Quantity 1. Attach the top Front Rail (6) to the tabs at the top of the Left and Right Front Corner Brackets (9 and 11) with two Front Rail M4 x 3/8"...
- Page 14 Doors to the Cabinet with two M4 x 3/8" Pan-Head Self-Tapping Screws (S1) in each hinge. Fig. 22. Check Rockler.com for updates. If you have further questions, please contact our Technical Support Department at 1-800-260-9663 or support@rockler.com...
- Page 15 Fig. 23 - Top View...
- Page 16 54931 Distributed by Rockler Companies, Inc. 1-800-279-4441 Rev 09/20 4365 Willow Dr. Medina, MN 55340 www.rockler.com...
