Assembly (Continued)

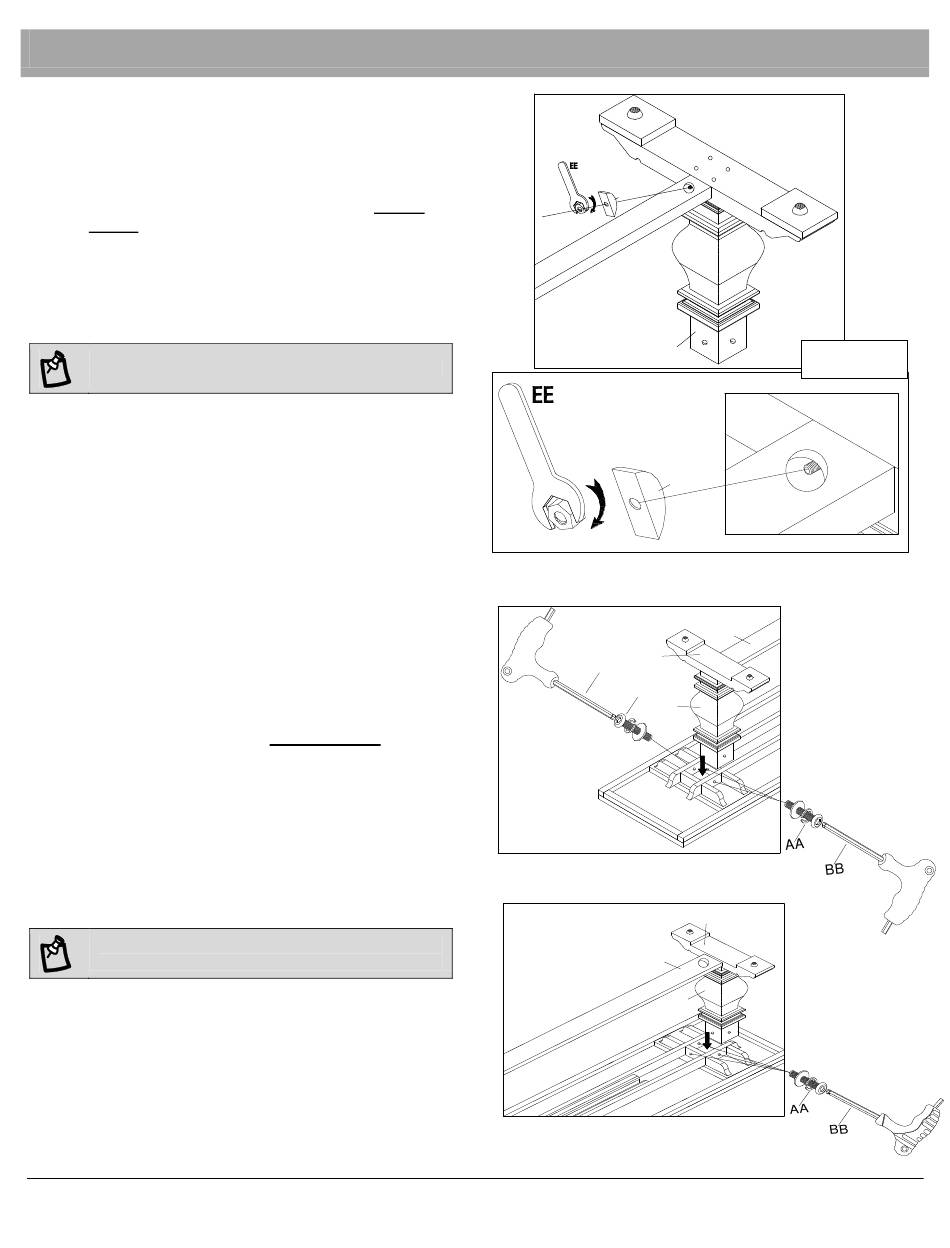

Assembly Stretcher to Base –
3
P2
□
Assembly Stretcher (D) to Base (C) by slightly
tighten Threaded Rod (FF), Half Moon Washer
(CC), Hex Nut (DD) with Wrench (EE) provided.
B
(Reference Fig.4)
1
NOTE: Tight Slightly till the whole Bench set in.
Assembly Pedestal to Bench
4
Top – P1
□
Place Bench Top (A) upside down on a soft
surface such as blanket or carpet to prevent it from
being scratched.
□
Place Pedestals (B) into square blocks under top.
(Reference Fig.5)
□
Tighten Bolts (AA) by Allen Key (BB) from top
support rail through Pedestal (B) as shown.
(Reference Fig.5)
□
Do same above steps for 3 sides.
(Reference Fig.6)
□
Do same above steps for another Pedestal.
NOTE: Tight slightly till all bolts are completely in
each hole. Then tighten before turn Bench over.
FF
C
G G
D
B
C C
DD
D
2
DD
BB
AA
A
Fig.5
A
Fig.6
6
C
B 3
C C
D
C
B
C
D
B
Fig.4
