Assembly

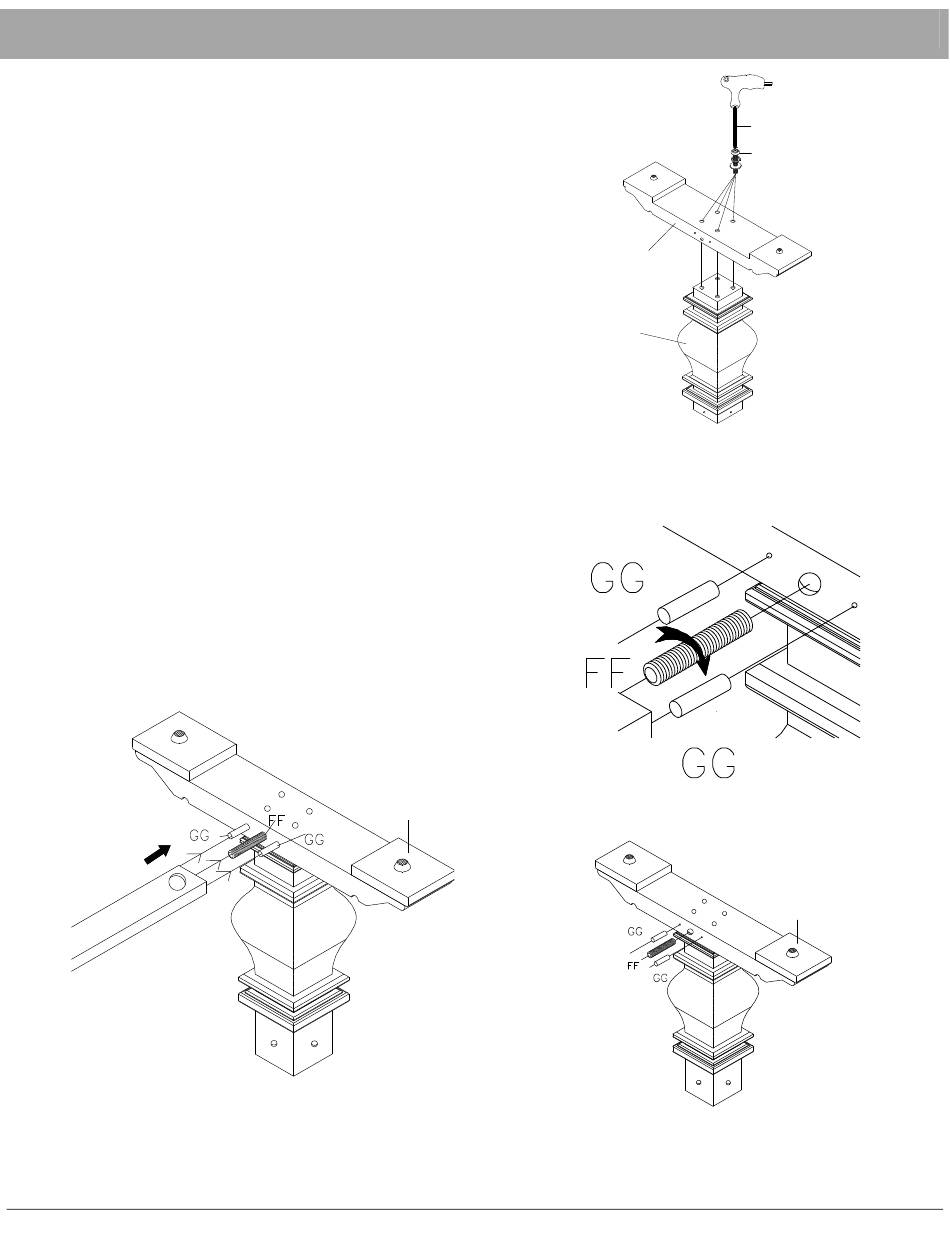

Assembly Base to Pedestal
1
□
Upside down Pedestal (B), then locate Bolts (AA)
into drilled holes on Base (C) and tighten them
through by Allen Key (BB) provided.
(Reference Fig.1)
□
Do same above steps for another Pedestal.
2
Assembly Stretcher to Base –
P1
□
Locate Dowels (GG) into 2 drilled holes on base as
shown. In the meantime, screw up the Threaded
Rod (FF) manually into the center hole as well.
(Reference Fig.2)
□
Make sure Dowels & Thread Rod are fitted well
and aligned between Base & Stretcher.
(Reference Fig.3)
□
Do same above steps for another end.
D
C
B
Fig.3
C
B
