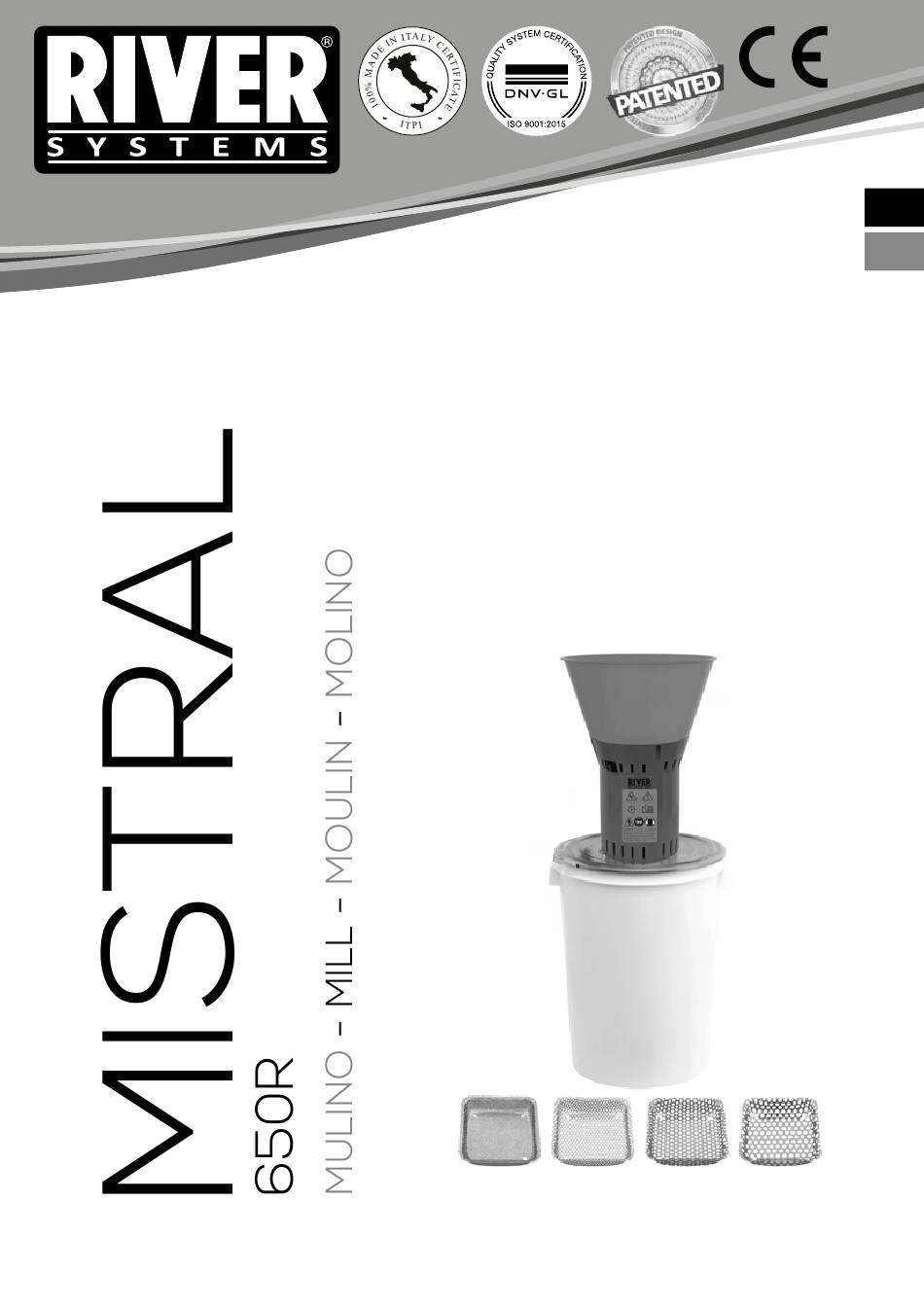

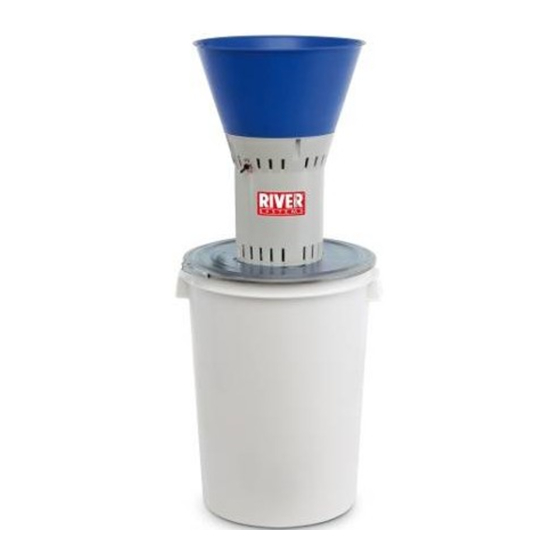

- Page 1 riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Manuale di utilizzo riversystems.it riversystems.it User Manual riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it...
- Page 2 riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it...
- Page 3 Le descrizioni e le illustrazioni contenute nel presente manuale non si intendono vincolanti; le illustrazioni sono riversystems.it a scopo illustrativo. River Systems srl pertanto si riserva il diritto di apportare modifiche in qualunque momento e senza impegno, riversystems.it di aggiornare la pubblicazione, di modificare componenti ed accessori a scopo migliorativo, o per qualsiasi esigenza di carattere costruttivo e/o commerciale in funzione di una maggiore sicurezza e funzionalità.
-
Page 4: Table Of Contents
8F - SOSTITUZIONE DELLE SPAZZOLE CARBONCINO DEL MOTORE........12 9. PARTI DI RICAMBIO.........................13 riversystems.it riversystems.it 10. STOCCAGGIO........................14 11. MESSA A RIPOSO........................14 12. SMALTIMENTO DELLA MACCHINA..................14 riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 4 - riversystems.it riversystems.it... -
Page 5: Informazioni Preliminari
La macchina è stata progettata e costruita in conformità ai requisiti di sicurezza previsti dalla direttiva 2006/42/ CE del 17.05.2006. riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it 2. SICUREZZA E ANTINFORTUNISTICA riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 5 - riversystems.it riversystems.it... -
Page 6: Guida Alla Consultazione
La manutenzione deve avvenire a macchina ferma e priva di alimentazione elettrica. In presenza della necessità di assistenza tecnica, River Systems srl consiglia di rivolgersi direttamente al suo servizio assistenza; sarà garantito l’impiego di pezzi di ricambio originali ed il permanere delle condizioni di sicurezza nel funzionamento. -
Page 7: Prescrizioni Per L'uso
TENTARE DI RIPARARLA MA SCOLLEGARLA DALL’ALIMENTAZIONE ELETTRICA E CONTATTARE IL FABBRICANTE. riversystems.it • Pericolo di contatto con parti in movimento per avvio inaspettato della macchina. riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 7 - riversystems.it riversystems.it... -
Page 8: Introduzione
Per qualsiasi contatto con il costruttore, comunicare il numero di matricola della macchina presente sulla targhetta. La suddetta targhetta riporta i seguenti dati: riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 8 - riversystems.it riversystems.it... -
Page 9: Descrizione Generale
MANEGGIARE CON CURA LA MACCHINA DURANTE LA MOVIMENTAZIONE ONDE EVITARNE LESIONI O DANNI. Per trasportare la macchina è necessario proteggerla con un imballaggio idoneo che prevenga lo schiacciamento riversystems.it e l’urto della macchina. riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 9 - riversystems.it riversystems.it... -
Page 10: Posizionamento
Se necessario, utilizzare un vaglio (9) con fori di dimensione differente (foto D) per lavorare ulteriormente il mangime, seguendo le indicazioni al paragrafo 6A. riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 10 - riversystems.it riversystems.it... -
Page 11: Manutenzione
Sostituire il motore Il motore non Contattare l’assistenza tecnica Spazzole del motore Sostituire le spazzole del fabbricante o del rivenditore funziona riversystems.it usurate del motore riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 11 - riversystems.it riversystems.it... -
Page 12: Sostituzione Della Lama
• Assicurarsi che le nuove spazzole siano montate correttamente; riversystems.it • Rimontare macchina seguendo procedura smontaggio al contrario. riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved - 12 - riversystems.it riversystems.it riversystems.it... -
Page 13: Parti Di Ricambio
ANELLO DI CHIUSURA BIDONE 50 LT 25800900 PRESSACAVO PG9 riversystems.it 65000160 KIT CABLAGGI PER MISTRAL 650R 89148040 ETICHETTA DI AVVERTENZA 25801900 GHIERA PRESSACAVO PG9 riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 13 - riversystems.it riversystems.it... -
Page 14: Riversystems.it
Copyright © River Systems - All rights reserved - 14 - riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it... - Page 15 The descriptions and illustrations contained in this manual are not binding; illustrations are only for illustrative purposes. River Systems srl therefore reserves the right to make changes at any time without obligation, riversystems.it to update the publication, to modify components and accessories for further improvement, or for any manufacturing and/or commercial reason to improve safety and functionality.
- Page 16 8F - REPLACEMENT OF THE ENGINE CARBON BRUSHES............24 9. SPARE PARTS.........................25 riversystems.it riversystems.it 10. STORAGE..........................26 11. SET-ASIDE..........................26 12. DISPOSAL OF THE MACHINE....................26 riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 16 - riversystems.it riversystems.it...
-
Page 17: Preliminary Information
The machine has been designed and assembled in compliance with the safety requirements established by the directive 2006/42 / CE dated 17.05.2006. riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 17 - riversystems.it riversystems.it... -
Page 18: 2. Safety And Accident Prevention
Maintenance must be carried out with the machine off and unplugged. If technical assistance is required, River Systems srl recommends to contact its customer service directly; the use of original spare parts will be guaranteed as well as safe operating. -
Page 19: Requirements For Use
BEFORE PERFORMING ANY MAINTENANCE OPERATION, UNPLUG THE MACHINE. riversystems.it • Danger of inhaling dust when cleaning the machine with consequent irritation or damage to the airways. riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 19 - riversystems.it riversystems.it... -
Page 20: Introduction
For any contact with the manufacturer, communicate the serial number of the machine written on the plate. riversystems.it The plate installed on the machine shows the following data: riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 20 - riversystems.it riversystems.it... -
Page 21: General Description
To transport the machine, it is necessary to protect it with suitable packaging that prevents crushing and riversystems.it impacting the machine. To handle it, grab the machine by the handles (6) and lift it carefully. riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 21 - riversystems.it... -
Page 22: Positioning
If necessary, use a sieve (9) with holes of different diameters (photo D) to further process the feed, following the instructions in paragraph 6A. riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 22 - riversystems.it riversystems.it... -
Page 23: Maintenance
The engine does Contact the customer service of the manufacturer or retailer not work The motor carbon Replace the motor brushes are worn-out carbon brushes riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 23 - riversystems.it riversystems.it... -
Page 24: Replacing Of The Blade
Make sure that the new brushes are mounted correctly; • Reassemble the machine following the disassembly procedure in reverse. riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved - 24 - riversystems.it riversystems.it riversystems.it... -
Page 25: Spare Parts
CABLE GLAND PG9 riversystems.it 65000160 WIRING KIT FOR MISTRAL 50 LT 89148040 WARNING LABEL 25801900 CABLE GLAND NUT PG9 riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved riversystems.it - 25 - riversystems.it riversystems.it... -
Page 26: Riversystems.it
4. The improper disposal of the WEEE is prosecuted by the law. riversystems.it riversystems.it MAINTENANCE REGISTER riversystems.it riversystems.it DATE OPERATION NAME, QUALIFICATION AND SIGNATURE riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it Copyright © River Systems - All rights reserved - 26 - riversystems.it riversystems.it riversystems.it... - Page 27 riversystems.it riversystems.it NOTES riversystems.it ________________________________________________________________________________ riversystems.it ________________________________________________________________________________ riversystems.it ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ riversystems.it ________________________________________________________________________________ riversystems.it ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ riversystems.it riversystems.it ________________________________________________________________________________ riversystems.it ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ riversystems.it ________________________________________________________________________________ riversystems.it ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ riversystems.it ________________________________________________________________________________ ________________________________________________________________________________ riversystems.it riversystems.it ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ riversystems.it...
- Page 28 River Systems s.r.l. Via Marco Polo, 33 riversystems.it 35011 Campodarsego (PD) Italy Telefono +39.049.9202464 - Fax +39.049.9216057 www.riversystems.it - info@riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it riversystems.it...
