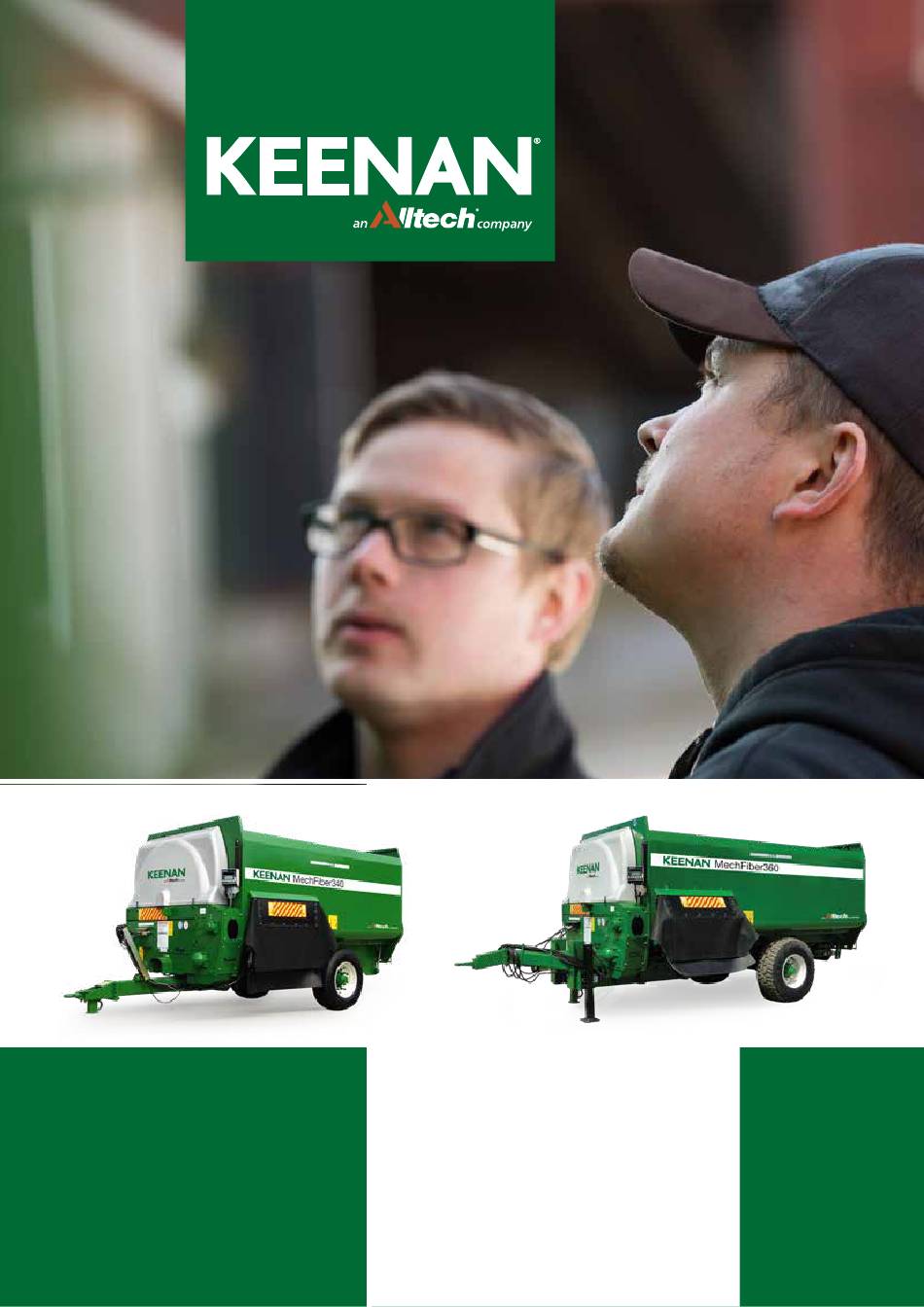

Operator's Manual
MechFiber340
MechFiber360
KEENAN MechFiber340 & 360
Operator's Manual
Effective from models
MF34I100 & MF36I100
Revision G04 July 2018
Revision G04 July 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEENAN MechFiber340 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alltech KEENAN MechFiber340

Summary of Contents for Alltech KEENAN MechFiber340

  • Page 1 Operator’s Manual MechFiber340 MechFiber360 KEENAN MechFiber340 & 360 Operator’s Manual Effective from models MF34I100 & MF36I100 Revision G04 July 2018 Revision G04 July 2018...
  • Page 2 Revision G04 July 2018...

  • Page 3: Table Of Contents

    SECTION CONTENTS PAGE PART I (Service & Maintenance) Introduction Warning Notes Warning Signs Operating Principles Weighing Chopping / Mixing Feeding Out Maintenance Safety Precautions Safety Weighing System Operation Set-Up Hitch Height Adjustment Mixer Wagon Capacity Loading & Mixing Operating The KEENAN MechFiber Mixer Wagon Operating The KEENAN MechFiber BaleBlend Specific Instructions For BaleBlend Models Washing and Chopping Root Crops...

  • Page 4: Part I (Service & Maintenance)

    PART I (Service & Maintenance) 1. Introduction KEENAN MechFiber Mixer Wagon and KEENAN MechFiber BaleBlend Thank you for purchasing a KEENAN product. The KEENAN MechFiber Mixer Wagon is a TMR feeder with a difference. The original KEENAN mixer wagon became a market leader due to its reliability and durability, founded on simplicity, fast efficient mixing and feed out and low horsepower requirements.

  • Page 5: Warning Notes

    2. Warning Notes Please read this manual carefully before operating your new machine, paying particular attention to the warning notes, explained here. There are 3 different types of notes, as follows: WARNING: Texts with this symbol contain safety information. They warn you of serious dangers, possibly involving accident or injury.

  • Page 6: Warning Signs

    3. Warning Signs Read the operators Danger of flying Stay clear of sharp Do not open or remove manual before objects. Keep a safe blades. safety guards while the using the machine. distance from the machine is connected machine. to the tractor. Shut off the engine Never reach into Do not ride on the...

  • Page 7: Operating Principles

    4. Operating Principles The KEENAN MechFiber Mixer Wagon’s main operating functions are weighing, chopping/mixing and feeding out. WEIGHING The KEENAN MechFiber Mixer Wagon’s electronic weighing system allows the exact quantity of individual materials to be loaded into the mixing chamber for accurate rationing.

  • Page 8: Feeding Out

    FEEDING OUT During mixing, the mixing chamber is separated from the feed out chamber by a Variable Feed Control (VFC) or guillotine door, thus ensuring complete mixing. The feed out chamber contains an auger which runs the entire length of the machine.

  • Page 9: Safety Precautions

    SAFETY PRECAUTIONS KEENAN mixer wagons have been designed to reduce risk to a minimum. However, as with any machine, careful observation of safety procedures is necessary to prevent accidents. See inside for further details on each section. If you have any further questions please contact your local KEENAN centre for advice.
  • Page 10 The following safety points are general guidelines. Given the wide variety of possible operating conditions other safety risks may exist which are not captured in the list over. Always park the mixer wagon on level ground and apply the handbrake when not in use.
  • Page 11 Regularly inspect all chains (at least weekly), sprockets and moving parts for wear and check all nuts and bolts for tightness. The ladder on the rear of the mixer wagon is to be used as a viewing point for the mixing chamber. It should not be used as a means of access to the mixing chamber nor onto the body of the machine.

  • Page 12: Weighing System

    Note that when mixing soda grain, the maximum gross load that can be mixed in the KEENAN MechFiber340 is 5,000 kg and for the KEENAN MechFiber360 is 6,000 kg.

  • Page 13: Operation

    7. Operation The simplicity of the KEENAN MechFiber Mixer Wagon design is reflected in its low power requirement. The power required varies, depending on the mix used, the dry matter, and the amount of chopping required. If a tractor is at its limit during mixing, this will translate into extra strain on moving parts as there will be surges in power as the engine recovers during certain periods of the mix.
  • Page 14 Hydraulic and brake hoses Operation Colour Guillotine door Red & yellow Feed out tray Blue BaleBlend creel Green Brakes White Beetgrid Black Table 1: Hydraulic and brake hoses Note: A: The design life of hydraulic hoses is subject to the level of wear and tear/ usage and also factors like harsh climate.

  • Page 15: Hitch Height Adjustment

    7.2. HITCH HEIGHT ADJUSTMENT The MF340 & 360 hitch has been designed to allow for a number of various hitch height options with same components used, the hitch height is normally selected for the application and set at the factory per the options below. The main standard hitch assembly is a bolt on assembly and once the main set- ting is completed at the factory, it may also be adjusted on farm by moving the assembly up or down within the bolt holes, or turning the complete hitch over,...

  • Page 16: Mixer Wagon Capacity

    MIXER WAGON CAPACITY Due to the diversity of the materials available for feeding and the KEENAN MechFiber’s ability to incorporate a wide range of feed types into the ration the capacity of the machine will vary. Ensure that overloading is avoided at all times as mix quality will be seriously affected and potential machine damage may result.

  • Page 17: Loading & Mixing

    LOADING & MIXING Note: The unique tumbling action of the machine is what carries out the mixing. If the machine is overloaded or loaded in an incorrect order, or insufficient time is allowed for proper chopping, this tumbling action will not take place correctly. In addition to reducing mix quality, it increases the horsepower requirements and reduces the life of the machine.

  • Page 18: Operating The Keenan Mechfiber Mixer Wagon

    OPERATING THE KEENAN MECHFIBER MIXER WAGON LOADING THE KEENAN MECHFIBER MIXER WAGON GENERAL • Park on level ground. • Ensure the variable feed control door (VFC) (guillotine door) is closed. • Do not start PTO when VFC door is open. LOADING AND MIXING SEQUENCE •...

  • Page 19: Operating The Keenan Mechfiber Baleblend

    OPERATING THE KEENAN MECHFIBER BALEBLEND LOADING THE KEENAN MECHFIBER BALEBLEND GENERAL • Park on level ground. • Ensure variable feed control door (VFC) is closed. • Do not start PTO when VFC door is open. LOADING AND MIXING SEQUENCE for all bale types. Note: When chopping straw, •...

  • Page 20: Specific Instructions For Baleblend Models

    SPECIFIC INSTRUCTIONS FOR BALEBLEND MODELS The creel should be raised before loading bales. The bale (round bales) should always be loaded in the centre of the machine so that it gets the maximum agitation from the 6 paddles. The bale should be gently lowered in the centre of the machine onto the tines.

  • Page 21: Washing And Chopping Root Crops

    WASHING AND CHOPPING ROOT CROPS With the machine stopped add the root material to be washed and chopped. Ensure that there are no stones or foreign objects hidden in the roots. Add water at approximately 300 kg (660 pounds) per tonne of material to be chopped.

  • Page 22: Maintenance

    8. Maintenance The KEENAN MechFiber Mixer Wagon has been designed for optimum perfor- mance with a minimum of maintenance. Chains, bearings and grease points have been kept to a minimum without compromising function. All components are of high quality and provide excellent durability. Regular routine maintenance will ensure your KEENAN MechFiber Mixer Wagon gives you the best results with a minimum of problems.
  • Page 23 After each season, remove all chains by loosening the tensioners and removing the joiner links - see figure 8. Wash off all dirt using paraffin. Dry the chains before soaking overnight in oil and then refit. Figure 9: Front panel of KEENAN MechFiber Mixer Wagon CAUTION: Failure to maintain oil on the chains may reduce the working life by 90%.

  • Page 24: Chain Tensioning

    CHAIN TENSIONING 1. Setting Tension on Primary Chain Contrary to previous versions of this machine, it is not necessary to adjust the pivotal position of the input shaft housing for normal chain tension adjustment. This should only require attention when replacing a chain. The tension is set by adjusting the lower spring seat underneath the tensioner arm.

  • Page 25: Greasing

    Pitch (inches) 2” Chain length (mm) 6,093.6 Chain length (inches) Table 4: KEENAN MechFiber340/360 drive chains GREASING 1. Bearings After every 40 hours of operation apply grease to all bearings through grease fittings. These are as follows: Grease point A Rotor bearing (front)
  • Page 26 Figure 10a: Front bearing grease points Figure 10b: Rear bearing grease points Revision G04 July 2018...
  • Page 27 All MechFiber340 and MechFiber360 feeders are fitted with a central greasing manifold as standard which covers all the inaccessible grease points around the drive system of the machine. This manifold groups bearing grease points B, C, F & M along with pivot point grease points N, O, P & R into one location, which is to the lower right of the input shaft.
  • Page 28 Figure 11a: VFC Door grease points Figure 11b: Drive system pivot points grease points Revision G04 July 2018...
  • Page 29 Figure 11c: Front bearing grease points on central greasing manifold In addition to above there are a number of grease points on the chassis which should be grease at 40 hour intervals also. These are outlined in Figure 11c & Figure 11d below. Figure 11d: Single axle chassis grease points Revision G04 July 2018...
  • Page 30 Figure 11e: Tandem axle chassis grease points Figure 12: Central greasing manifold Revision G04 July 2018...

  • Page 31: Blade Maintenance

    3. PTO drive shaft Refer to PTO operator’s manual for greasing instructions and recommendations. BLADE MAINTENANCE Blade Sharpening and/or Replacement, it is recommended that only KEENAN Trained and/or qualified maintenance personnel should perform this task. Blades need to be kept sharp. Blunt blades will increase power requirements. Sharpening must be done without taking the temper from the blades (without overheating).

  • Page 32: Shear Bolts

    BaleBlend Creel Cradle Arms BaleBlend Tines Load Bumper Assembly Figure 14: MechFiber 340 with BaleBlend attachment SHEAR BOLTS The following are the recommended shear bolts to be used with the KEENAN MechFiber340 & MechFiber360. Machine type Shaft Shear Bolt MechFiber340 & 360 M10 x 65 x 8.8 Table 5: Shear bolt CAUTION:...

  • Page 33: Nuts & Bolts

    NUTS AND BOLTS After the first day, and regularly thereafter, inspect wheel nuts and tandem axle U-bolts (where fitted). After the first week, and each week thereafter, check all nuts and bolts, including bearing nuts, for tightness. General Torque Stud/Bolt FT/LB U-Bolt Diameter (mm) Tightening Torque (Nm)

  • Page 34: Wheels

    WHEELS Each year lever off the hub cap, remove the split pin and castle nut and remove the hub. Check seals, bearings, brake shoes, springs, studs, and all other internal parts. Replace worn parts, re-grease and refit. Note: When re-fitting the wheels, tighten the castle nut until resistance is felt (do not over tighten).

  • Page 35: Side & Sub Feed-Out Elevator (Where Fitted)

    8.11 SIDE & STUB FEEDOUT ELEVATOR (WHERE FITTED) An elevator system requires regular maintenance in order to achieve optimum performance. Every week the elevator needs to be checked to make sure that the belt is running straight and not wearing unevenly on one side. If the belt is not running straight then adjust the tension by adjusting the tensioner nut on the side and run again to check.

  • Page 36: Maintenance Checklist

    9. Maintenance Checklist Daily Clean all old feed from around the body to prevent corrosion and damage to Cleaning: paint. VFC-door: Before using the machine, check that the door opens and shuts fully and operates smoothly. Wheel nuts: Check torque settings. Oiler: Check the oil level and replenish with SAE 10 oil as required.

  • Page 37: Specifications

    WARNING: Due to hazards involved in entering the mixing chamber it is recommended that all blade replacement is carried out by a KEENAN authorized service agent who is specially trained to do this. Contact your local agent (see back cover for details). 10.

  • Page 38: Parts List

    PART II (Spare Parts) 11. Parts List 11.1 HYDRAULIC SYSTEM PARTS Item: P/N: Qty: Description: MechFiber340 MechFiber360 702106 702106 Hydraulic feed-out tray hose assembly – 5502mm 704923 704922 VFC door hydraulic hose kit 4 704254 704254 Auto-oiler actuator hose FP160-001-0095 FP160-001-0095 Hydraulic hose holder assembly Table 9: Hydraulic system...

  • Page 39: Front Cover Parts

    11.2 FRONT COVER PARTS Item: P/N: Qty: Description: FP160-037-0022 GRP cover assembly FP160-037-0057 Front guard lower assembly 1 701363 Handle FP160-037-0036 Front guard lower section assembly 1 FP160-037-0027 Stay rod assembly FP160-037-0043 PTO guard 701274 Bearing cover – 218mm ID FP160-048-0068 Drive system access slot cover plate FP160-037-0034...
  • Page 40 Item: P/N: Qty: Description: FP160-037-0001 MechFiber340/360 Fibreglass Front Guard 700200 M6 x 25mm HT Setscrew 700751 M6 x 1.5mm Flat Washer 701363 Handles, U-Shape, 160mm hole centres, for Front Guards 700212 M8 x 30 Bolts 700736 M8 Flat Washer FP160-037-0025 Handle Mounting Plate Assembly - For Fibreglass Covers FP280-037-0038 Spring Lock Spacer Plate...

  • Page 41: Driveline Chains

    11.3 DRIVELINE CHAINS Item: P/N: Qty: Description: MechFiber340 MechFiber360 704188 Primary drive chain - ASA120 - 91 pitches + joiner link (Diamond brand) OE 705018 Primary drive chain - ASA120 - 91 pitches + joiner link (Sapphire brand) 705019 705019 Rotor drive chain - ASA160SH - 119 pitches + joiner link (Sapphire brand) 704189...

  • Page 42: Driveline Parts

    11.4 DRIVELINE PARTS Revision G04 July 2018...
  • Page 43 Revision G04 July 2018...
  • Page 44 Item: P/N: Qty: Description: FP160-002-0104 Rotor cover plate assembly EF207-34 104-tooth ASA160 rotor sprocket FP160-007-0013 Front rotor spacer bush FP160-017-0005 Front box – rotor bearing carrier assembly 702294 90mm UCFX18 bearing – steel flange housing FP200-007-0006 Front rotor stub shaft thrust collar assembly FP280-048-0068 ASA160 chain tensioner spring mounting bush FP280-048-0083...
  • Page 45 Item: P/N: Qty: Description: FP160-048-0167 ASA120 chain tensioner arm longitudinal positioning plate assembly FP160-048-0135 ASA120 chain tensioner arm mount assembly FP160-048-0122 ASA120 chain tensioner arm assembly 2 FP160-048-0175 70mm spring seat spanner FP160-048-0035 Gearbox mounting plate support angle 704439 M8 star control knob FP280-002-052 Lower cover flange plate for auger FP280-002-050...

  • Page 46: Rotor Parts

    11.5 ROTOR PARTS Item: Qty: Description: MechFiber340 MechFiber360 FP160-007-0032 FP200-007-0026 Rotor assembly FP170-008-0003 FP200-008-0002 Front Paddle Assembly FP170-008-0002 FP200-008-0003 Rear Paddle Assembly 702288 702289 Paddle rubber (Front) 702287 702290 Paddle rubber (Rear) FP140-008-0009 same as 340 Paddle rubber retainer FP200-008-0010 Paddle rubber retainer 700732 same as 340...

  • Page 47: Auger Parts

    11.6 AUGER PARTS Item: Qty: Description: MechFiber340 MechFiber360 700297 700297 M20 x 65mm Bolts FP160-009-0026 FP160-009-0026 23-tooth ASA120 auger driven sprocket FP160-009-0024 FP160-009-0024 Auger stub shaft assembly (forged) 700305 700305 M20 Locknuts FP280-009-0070 FP280-009-0070 Auger Seal Rubber FP280-002-055 FP280-002-055 Auger Seal Retainer FP160-009-0002 FP200-009-0102 Auger Assembly...

  • Page 48: Auger Chamber / Guillotine Door Parts

    11.7 AUGER CHAMBER / GUILLOTINE DOOR PARTS Item: Qty: Description: MechFiber340 MechFiber360 FP160-010-0005 same as 340 Guillotine Door Lower Ram Bracket (Front) FP160-010-0006 same as 340 Guillotine Door Lower Ram Bracket (Rear) 701591 same as 340 Guillotine Door Bottom Hydraulic Cylinder 704955 same as 340 Front Guillotine Door Hydraulic Cylinder...
  • Page 49 Item: P/N: Qty: Description: 704135 Wire Rope Assembly, 2340mm 701559 Pulley Wheel, 50mm OD, 20mm thick, for Indicator RD8010-61 Guillotine Door Indicator Slider Assembly FP080-010-0005 Guillotine Door Indicator Kit 703625 Spring, 8" Expansion, 22mm OD, 2mm thick EF102-108 Mounting bracket, for front guard weighbox holder EF102-115 Weighbox bracket, turning, for front guard 703353...

  • Page 50: Standard Feed Out Tray Parts

    11.8 STANDARD FEED-OUT TRAY PARTS Revision G04 July 2018...
  • Page 51 Item: P/N: Qty: Description: FP160-006-0429 Feed Out Shroud Front Side Plate Assembly FP160-006-0430 Feed Out Shroud Rear Side Plate Assembly FP160-006-0432 Feed Out Shroud Top Plate FP160-006-0088 Hinge Bracket, Feed Out Door RHS FP160-006-0087 Hinge Bracket, Feed Out Door LHS FP160-006-0090 Feed Out Door Assembly FP160-006-0123...

  • Page 52: Fold Down Tray Options

    11.9 FOLD DOWN TRAY PARTS (OE Option) Revision G04 July 2018...
  • Page 53 Revision G04 July 2018...
  • Page 54 Item: P/N: Qty: Description: FP160-006-0417 Fold Down Tray Shelf Assembly FP170-006-0182 Fold Down Tray Hinge Bar Assembly FP170-006-0191 Fold Down Tray Assembly & Rubber FP160-006-0044 Fold Down Tray Mounting Plate Assembly FP170-006-0162 Fold Down Tray Inner Link Arm Assembly FP200-006-0340 Fold Down Tray Outer Link Arm Assembly 705268 6”...
  • Page 55 701366 Magnet Plate (OE) 700212 M8 x 30 Bolt 700736 M8 Flat Washer 700223 M8 Nylock Nut 702500 M12 x 45 Cup Head Bolt 700730 M12 Flat Washer 700266 M12 Lock Nut FP160-006-0418 Fold Down Tray Shelf Assembly FP160-006-0421 Fold Down Tray Shelf Top Plate 700208 M8 x 20 Set Screw 700223...

  • Page 56: Body Sealing Parts

    11.10 BODY SEALING PARTS Item: Qty: Description: MechFiber340 MechFiber360 FP140-004-0003 FP200-004-0028 VFC door inner seal retainer 701290 701293 VFC Door inner rubber seal – 5005mm FP280-010-009 FP280-010-009 VFC door front and rear end retainer 704876 704876 VFC door front and rear end seal 704880 VFC door outer end seal rubber FP140-006-0022...

  • Page 57: Body Blade Parts

    11.11 BODY BLADE PARTS Item: Qty: Description: MechFiber340 MechFiber360 701518 701518 Top Knife Blade - 990mm Long 704229 704229 Top Knife Blade - 990mm Long – Deep Serrations 703955 703955 24/28* Body Blade - 5mm thick 703957 703957 24/28* Body Blade – 6.25mm thick 700226 700226 48/56...

  • Page 58: Rear Panel Parts

    Reline Plates: Item: Qty: Description: MechFiber340 MechFiber360 FP160-004-0015 FP200-004-0137 Hardened Body Liner - Front FP160-004-0016 FP200-004-0139 Hardened Body Liner - Rear FP200-004-0138 Hardened Body Liner - Centre FP160-004-0070 FP200-004-0164 Hardened Body Liner - Front (Extra Blades) FP160-004-0071 FP200-004-0166 Hardened Body Liner - Rear (Extra Blades) FP200-004-0165 Hardened Body Liner - Centre (Extra Blades) FP160-004-0020...

  • Page 59: Chassis Parts

    11.13 CHASSIS PARTS Item: P/N: Qty: Description: 704140 Dinamica Generale Weighbar (Front) 704141 Dinamica Generale Weighbar (Rear) EF201-12 Weighbar Bracket Assembly 700733 M20 Flat Washers 700297 M20 x 65 Bolts 700304 M20 Locknuts 704067 Axle, 150mm x 2100mm, 10 Stud Straight Axle 701952 385/65R 22.5 Bandenmarkt Tyre with 10 Stud, Zero Offset Rim 700306...
  • Page 60 Chassis Parts (German High Hitch) Item: P/N: Qty: Description: 700289-12 Air Brake TYPE 20 Servo Assembly 700289-14 Air Brake Tank Assembly – TYPE 20 704067 Axle, 150mm x 2100mm, 10 Stud Straight Axle 700718 TUV Hitch 40mm – 6 Hole DIN 7405 700495-2 Wheel Chock Table 25: High Hitch Chassis...

  • Page 61: Baleblend Parts

    11.14 BALEBLEND PARTS Series I BaleBlend Item: Qty: Description: MechFiber340 MechFiber360 FP160-045-0083 FP280-045-0056 BaleBlend Creel Curved Plate Assembly FP280-045-017 same as 340 BaleBlend Creel Guide Arm FP160-045-0088 same as 340 Creel End Cover Plate FP160-045-0003 same as 340 BaleBlend End Creel Assembly (Rear) 700733 same as 340 M20 Washer...
  • Page 62 Series III BaleBlend Item: Qty: Description: MechFiber340 MechFiber360 FP160-045-0083 FP280-045-0056 Curved creel panel assembly complete FP200-045-0143 same as 340 9/11 Tine bracket assembly (weld on) FP140-045-0005 same as 340 Apron rail & stud assembly 703943 9/11 Rubber buffer, 75mm OD. M12 x 13mm same as 340 deep thread 704925...
  • Page 63 Item: Qty: Description: MechFiber340 MechFiber360 FP160-006-0139 same as 340 Load bumper brace plate FP160-045-0118 same as 340 BaleBlend kicker assembly – complete kit FP140-045-0019 same as 340 As Req’d Spacer Plate, 3mm, for BaleBlend Bracket 700247 same as 340 10/11 M12 x 30mm setscrew 700730 same as 340...
  • Page 64 Series III BaleBlend Creel Kicker Item: P/N: Qty: Description: FP160-045-0071 BaleBlend creel kicker arm assembly 1 FP160-045-0136 BaleBlend creel kicker spring kit FP100-006-0021 Feed out tray mechanical adjuster roller pivot bush 700262 M12 x 75 Bolt 700730 M12 Washer 700266 M12 Locknut FP280-045-010 Nylon Guide Wheel...
  • Page 65 Tine Bracket & Tine Arm Assemblies Item: P/N MF340: P/N MF360: Qty: Description: See BaleBlend Parts List same as 340 9/11 BaleBlend Tine Assembly for specific tine reference 705947 same as 340 18/22 Delrin Bush 703943 same as 340 9/11 Rubber Buffer 75mm O.D.

  • Page 66: Axles

    11.15 AXLES 11.15.1 Axle Options Figure 18: Typical Axle (Exploded View) Axle Types Axle Application MechFiber340 MechFiber360 MechFiber340/360 Axle Spec. HS12A1-00 EUR1410 414S EF1058/EF1050 Axle Type Straight Straight/Cranked Tandem Bogie Axle Width (mm) 2100 2250/2400 2200 Brake Type/Dimensions Series S, 420 x 180 414S, 406 x 140 408E, 400 x 80 (Type/Dia.
  • Page 67 11.15.2 Axle Maintenance Tightening and retightening wheel nuts The following points should be followed for tightening and retightening of wheel nuts: Impact wrenches should not be used as the impact torque maybe excessive. Wheel nuts should be tightened diagonally every time in conjunction with a torque wrench.

  • Page 68: Ancillary Parts

    11.16 ANCILLARY PARTS PTO Shaft P/N: Qty: Description: 700616 PTO, T60 Shaft, 1-3/8” Z6 x 1-3/8” Z6. M10 x 6.8 Shear Bolt Planetary Gearbox P/N: Qty: Description: FP160-031-0017 Planetary Gearbox Complete Kit FP160-031-0020 Planetary Gearbox Complete Kit (High Hitch) Grease Fittings P/N: Qty: Description:...
  • Page 69 Diverter Valve Parts (used on French machines) P/N: Qty: Description: 704139 Diverter Valve Kit (contains 703535 & 704394) 703894 Electro-Hydraulic Diverter Valve Kit (6 port) Heavy Duty Top Knife (standard on all BaleBlends) P/N: Qty: Description: 704229 Top knife blade, 990mm long, deep serrations Mechanical Adjuster P/N: Qty:...

  • Page 70: Troubleshooting

    12. Troubleshooting 12.1 GENERAL TROUBLESHOOTING PROBLEM: SOLUTION: 1. Weighing display won’t work properly Check section 12.2 on weighing. 2. VFC door does not move Check hydraulic hoses and that valves are open. Check tractor hydraulic oil level. Check ram condition and pins are secure. 3.
  • Page 71 PROBLEM: SOLUTION: 12: Bale goes in too quickly If the bale goes into the machine too quickly, it may place unnecessary load on the tractor and drive line, as well as slowing overall mixing time as the body blades aren’t as efficient at chopping long fibrous material as the top knife.

  • Page 72: Weighing Troubleshooting

    12.2 WEIGHING TROUBLESHOOTING KEENAN troubleshooting tips on weighing If you experience problems in the operation of the Weighing System, read through this Troubleshooting section first before contacting KEENAN Service. Reading Drifting If the reading on the weighbox is drifting or does not stay steady, the most likely cause of the problem is dampness/moisture in or around the weighbox or cables.

  • Page 73: Warranty

    13.2 PRODUCT CHANGES AND IMPROVEMENTS Due to our policy of continuous improvement, Alltech Farming Solutions Ltd reserve the right to make changes in design, to add improvements or to otherwise modify any of its products without incurring any obligation on products previously supplied.

  • Page 74: Declaration Of Conformity / Ce Certification

    Borris, Co. Carlow, Ireland. Certifies that the KEENAN MechFiber340 & KEENAN MechFiber360 complies with the essential safety requirements of the Directive 2006/42/EC. To conform to these essential health and safety requirements, the provisions of the following harmonized standards were particularly considered.

  • Page 75: Contact Details
