Operator's Manual
MechFiber250 and 280
KEENAN MechFiber 250 and 280 Operator's Manual
KEENAN MechFiber250 and 280
Operator's Manual
Effective from model 25L100 and 28L100
1
Revision C01, 04
th
Dec 2019
th
Revision C01, 04
Dec 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEENAN MechFiber250 and is the answer not in the manual?

Questions and answers

Related Manuals for Alltech KEENAN MechFiber250

Summary of Contents for Alltech KEENAN MechFiber250

  • Page 1 Operator’s Manual MechFiber250 and 280 KEENAN MechFiber250 and 280 Operator’s Manual Effective from model 25L100 and 28L100 KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019 Revision C01, 04 Dec 2019...
  • Page 2 KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019...

  • Page 3: Table Of Contents

    SECTION CONTENTS PAGE PART I (Service & Maintenance) Introduction Warning notes Warning signs Operating principles Weighing Chopping/Mixing Feeding out Maintenance Safety precautions Safety Weighing system Operation Set-Up Hitch height adjustment Mixer wagon capacity Loading and mixing Operating the KEENAN mixer wagon Washing and chopping root crops Feeding out Maintenance...
  • Page 4 PART I (Service & Maintenance) KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019...

  • Page 5: Introduction

    1 Introduction KEENAN MechFiber mixer wagon Thank you for purchasing a KEENAN product. The KEENAN MechFiber mixer wagon is a TMR feeder with a difference. The original KEENAN mixer wagon became a market leader due to its reliability and durability, founded on simplicity; fast, efficient mixing and feed out and low horsepower requirements.

  • Page 6: Warning Notes

    2 Warning notes Please read this manual carefully before operating your new machine, paying particular attention to the warning notes, explained here. There are 3 different types of notes, as follows: WARNING: Texts with this symbol contain safety information. They warn you of serious dangers, possibly involving accident or injury. CAUTION: Texts with this symbol draw your attention to a possible risk of damage to your KEENAN MechFiber mixer wagon.

  • Page 7: Warning Signs

    3 Warning signs Read the operators Danger of flying Stay clear of sharp Do not open or remove manual before objects. blades. safety guards while the using the machine. Keep a safe distance machine is connected to from the machine. the tractor.

  • Page 8: Operating Principles

    4. Operating principles The KEENAN MechFiber mixer wagon’s main operating functions are weighing, chopping/mixing and feeding out. Weighing The KEENAN MechFiber mixer wagon’s electronic weighing system allows the exact quantity of individual materials to be loaded into the mixing chamber for accurate rationing. Individual loads can be weighed, or successive loads accumulated to give total weight of feed.

  • Page 9: Maintenance

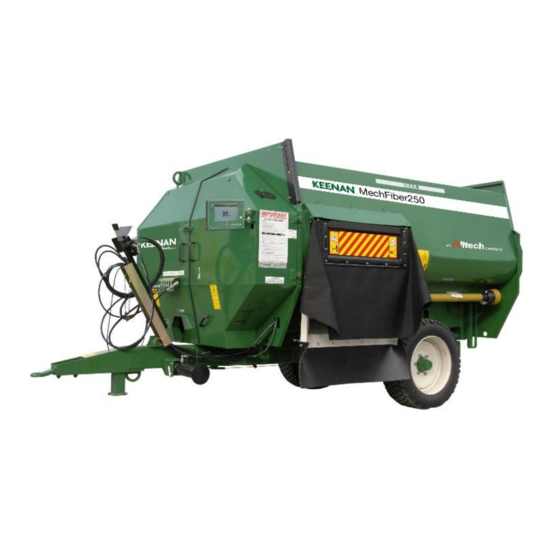

    Maintenance Figure 1: KEENAN MechFiber250 Mixer Wagon A properly operated and maintained KEENAN mixer wagon promises to operate trouble-free for years. Regular maintenance of the machine is essential both for long machine life and also to meet the warranty requirements. Refer to instructions in the Maintenance section of this manual.

  • Page 10: Safety

    5 Safety The KEENAN MechFiber mixer wagon has many safety features built into its design, but ultimately, safe operation requires the vigilance of the operator and an understanding of potential safety hazards. The machine is designed to be used as a mixer/chopper wagon for mixing animal feeds.
  • Page 11 d) Exercise extreme caution for possible overtaking traffic at either side when turning. e) Do not stand on the ladder while the feeder is in transit. The mixer wagon should never be used for the transport of people, animals or objects. f) Do not stand between the tractor and mixer wagon while it is in use.
  • Page 12 The noise emission level of the KEENAN MechFiber250 has been recorded at 89.4dB. Noise emission levels above 90dB would require the wearing of suitable ear protection. t) The Breakaway Safety Brake device should be attached to the tractor at all times. Cable ties fix the wire rope along the handbrake handle in place.
  • Page 13 SODAGRAIN: Additional safety instructions and warnings are available and covered in a soda grain leaflet which should be read carefully before soda treating grain. When finished treating grain, clean out any remaining material in the mixing and/or auger chamber by loading in 200– 300 kg of silage or 50 kg of straw and allow the machine to mix before unloading in the normal manner.

  • Page 14: Weighing System

    6 Weighing system The weighing system is designed to be simple to operate, accurate and robust. It consists of four load cells connected to a weigh box unit (readout box) at the front of the machine. The system uses 12-volt DC power from the tractor, or battery if fitted. The weigh box unit can be rotated for visibility during loading and from the tractor cab but should be folded out of the line of the tractor wheel for road work.

  • Page 15: Operation

    7 Operation The simplicity of the KEENAN Mixer Wagon design is reflected in its low power requirement. The power required varies, depending on the mix used, the dry matter, and the amount of chopping required. If a tractor is at its limit during mixing, this will translate into extra strain on moving parts as there will be surges in power as the engine recovers during certain periods of the mix.
  • Page 16 Hydraulic and brake hoses Operation Colour Guillotine door Red & yellow Feed-out tray Blue Brakes White Beetgrid Black Table 1: Hydraulic and brake hoses Note: A: The design life of hydraulic hoses is subject to the level of wear and tear/usage and also factors like harsh climate.

  • Page 17: Hitch Height Adjustment

    7.2. Hitch height adjustment The MechFiber250 and 280 hitches have been designed to allow for various hitch height options with the same components used. Hitch height is normally selected for the application and set at the factory. However, if required, the hitch can be adjusted on-farm to level the machine.

  • Page 18: Mixer Wagon Capacity

    Mixer wagon capacity Due to the diversity of the materials available for feeding and the KEENAN ability to incorporate a wide range of feed types into the ration, the capacity of the machine will vary. Ensure that overloading is avoided at all times as mix quality will be seriously affected and potential machine damage may result.

  • Page 19: Loading And Mixing

    Loading and mixing Note: The unique tumbling action of the machine is what carries out the mixing. If the machine is overloaded or loaded in an incorrect order, or insufficient time is allowed for proper chopping, this tumbling action will not take place correctly. In addition to reducing mix quality, it increases the horsepower requirements and reduces the life of the machine.

  • Page 20: Operating The Keenan Mixer Wagon

    Operating the KEENAN mixer wagon LOADING THE KEENAN MIXER WAGON GENERAL • Park on level ground. • Ensure variable feed control door (VFC) is closed. • Do not start PTO when VFC-door is open. LOADING AND MIXING SEQUENCE • Load feed as close as possible to the loading side of the unit. •...

  • Page 21: Washing And Chopping Root Crops

    Washing and chopping root crops With the machine stopped, add the root material to be washed and chopped. Ensure that there are no stones or foreign objects hidden in the roots. Add water at approximately 300 kg (650 lbs.) per tonne of material to be chopped. Rotate the machine for 1–2 minutes at 6–8 rpm.

  • Page 22: Maintenance

    8 Maintenance The KEENAN Mixer Wagon has been designed for optimum performance with a minimum of maintenance. Chains, bearings and grease points have been kept to a minimum without compromising function. All components are of high quality and provide excellent durability. Regular routine maintenance will ensure your KEENAN Mixer Wagon gives you the best results with a minimum of problems.
  • Page 23 C: The automatic chain oiler attachment gives a squirt of oil (approx. 15ml) every time the guillotine door ram cycles. In this way, the machine is oiled in direct proportion to the number of cycles and adequate lubrication is assured. There is an adjustment screw on the base of the automatic oiler, turning clockwise applies less oil and anticlockwise more.

  • Page 24: Chain Tensioning

    Chain tensioning 1. Setting tension on primary chain Tension is set on the primary chain to remove excess slack, and to prevent sagging or whipping when under heavy loads. The secondary drive chain is adjusted automatically. Coarse adjustment of the Primary Chain Tensioner is made by adjusting the top mounting position of the tensioner spring where it attached to the front panel of the machine.

  • Page 25: Greasing

    Model KEENAN 250/280 Primary Drive Chain ASA 100 Links 108 (inc. joiner) Pitch (mm) 31.75 Pitch (inches) 1.25 Chain length (mm) 3,397.25 Chain length (inches) 133.75 Rotor Drive Chain ASA 140HS Links 106 (inc. joiner) Pitch (mm) 44.45 Pitch (inches) 1.75 Chain length (mm) 5,711.7...
  • Page 26 Grease Point M Figure 11: Front grease points Figure 12: Rear grease points KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019...
  • Page 27 Figure 13: VFC-door grease points Figure 14: Tension arm grease points KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019...

  • Page 28: Blade Sharpening And Replacement

    Maintenance blades Blade sharpening and/or replacement, it is recommended that only KEENAN Trained and/or qualified maintenance personnel should perform this task. Blades need to be kept sharp. Blunt blades will increase power requirements. Sharpening must be done without taking the temper from the blades (without overheating). Blades can be sharpened many times, but when they reach the point where this is no longer practical, they must be replaced.

  • Page 29: Tyres

    Tyres Each week check the tyres for wear and damage. Each week check the tyre pressures. Optimum tyre pressures are shown in Table 7. This information is given as guidance. If in doubt, please contact KEENAN service. WARNING: When re-fitting and re-inflating tyre/wheel assemblies, a safety cage should be used to prevent possible injury.

  • Page 30: Rear Feed-Out Elevator (Where Fitted)

    Rear feed-out elevator (where fitted) An elevator system requires regular maintenance in order to achieve optimum performance. Every week the elevator needs to be checked to make sure that the belt is running straight and not wearing unevenly on one side. If the belt is not running straight, then adjust the tension by adjusting the tensioner nut on the side and run again to check.

  • Page 31: Side And Stub Elevator (Where Fitted)

    8.10 Side and stub feed-out elevator (where fitted) An elevator system requires regular maintenance in order to achieve optimum performance. Every week, the elevator needs to be checked to make sure that the belt is running straight and not wearing unevenly on one side. If the belt is not running straight, then adjust the tension by adjusting the tensioner nut on the side and run it again to check.

  • Page 32: Maintenance Checklist

    9 Maintenance checklist Daily Cleaning: Clean all old feed from around the body to prevent corrosion and damage to paint. VFC-door: Before using the machine, check that the door opens and shuts fully and operates smoothly. Wheel nuts: Check torque settings. Oiler: Check the oil level and replenish with SAE 10 oil as required.

  • Page 33: Specifications

    Electronic weigh box: If the machine is to be stored, remove the weigh box unit from the machine and keep in a dry place. Lightly grease the load cell cable connector end and place it into a plastic bag. Wheels: Remove and inspect wheel hub.
  • Page 34 PART II (Spare Parts) KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019...

  • Page 35: Parts List

    11 Parts list 11.1 Hydraulic system parts KEENAN MechFiber250 Item: P/N: Qty: Description: Hydraulic Brake Hose Assembly – 5,200 mm - white Tag 702107 FP140-001-0019 Hydraulic hose arm assembly EF1038-21 Hydraulic hose mounting plate Hydraulic feed-out tray hose assembly – 4,900 mm FP280-006-0134 Hydraulic hose –...

  • Page 36: Chassis Parts

    11.2 Chassis parts Item: P/N: Qty: Description: 704441 Handbrake assembly FP160-001-0095 Hydraulic hose holder assembly 703350 Front weigh bar, 4.6-m cable 700732 M16 washer 703148 M16 x 40 bolt EF101-9 Weigh bar bracket assembly 703351 Rear weigh bar, 9.2 m cable 702105 Hydraulic hose, 20-foot, brake hose assembly 700283...

  • Page 37: Front Cover Parts

    11.3 Front guard parts Item: P/N: Qty: Description: EF8038 Steel Front Guard (RHS) 701363 Handles, U-Shape, 160mm Hole Centres, for Front Guards 701184 Door Fastener Assembly 700736 Washer M8 Flat 700207 M8 x 16 Setscrew EF1037-21 Door Strap, for inside of Guard (not shown) Table 10: Front Guards (Right Side) KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04...
  • Page 38 Item: P/N: Qty: Description: EF8037 Steel Front Guard (LHS) Handles, U-Shape, 160-mm Hole Centres, for Front 701363 Guards 700736 Washer M8 Flat 700207 M8 x 16 Setscrew 701356 Door Latch Bracket EF1037-22 Cover Panel 700223 M8 Lock Nut EF1037-21 Door Strap for inside Guard (not shown) Table 11: Front Guards (Left Side) KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04...

  • Page 39: Feed-Out Tray Parts

    11.4 Standard feed-out tray parts KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019...
  • Page 40 Item: P/N: Qty: Description: FP080-006-0051 Feed-Out Shroud Front Side Plate Assembly FP080-006-0052 Feed-Out Shroud Rear Side Plate Assembly FP100-006-0074 Feed-Out Door Arm Assembly FP100-006-0013 Feed-Out Tray and Sub-frame Assembly FP100-006-0003 Feed-Out Tray Ram Upper Mounting Bracket Assembly 6” Stroke Feed-Out Tray Ram Assembly (KEEN-63) 703591 FP100-006-0080 Feed-Out Door Shroud Retainer...
  • Page 41 Feed-Out Tray can be supplied with the following: • Magnet Assembly P/N FP100-006-0035 • Std & Rubber Extension P/N FP100-006-0036 • Magnets & Rubber Extension P/N FP100-006-0037 • ½ Rubber P/N FP100-006-0038 Item: P/N: Qty: Description: FP100-006-0036 Std Tray with Rubber Extension FP100-006-0006 Feed-Out Tray Sub-Frame Assembly FP140-006-0075...
  • Page 42 Item: P/N: Qty: Description: FP100-006-0038 Feed-Out Tray ½ Rubber FP100-006-0006 Feed-Out Tray Sub-Frame Assembly FP140-006-0031 Feed-Out Tray Panel ½ Rubber 702256 M8 x 25-mm Cup Head Bolt 700223 M8 Nyloc Nut 700736 M8 Flat Washer 700802 Rubber Extension FP100-006-0092 Rubber Retainer Flat EF106-79 Rubber Side Retainer 702500...

  • Page 43: Fold Down Tray Parts

    11.5 Fold down tray parts KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019...
  • Page 44 KEENAN MechFiber 250 and 280 Operator’s Manual Revision C01, 04 Dec 2019...
  • Page 45 Item: P/N: Qty: Description: FP080-006-0043 Feed-Out Shroud Assembly (Fold Down Tray) FP140-006-0321 Fold Down Tray Hinge Bar Assembly FP140-006-0328 Fold Down Tray Assembly 2 FP080-006-0006 Feed-Out Tray Ram upper mounting bracket assembly FP170-006-0162 Fold Down Tray Inner link arm assembly FP200-006-0340 Fold Down Tray outer link arm assembly 6”...

  • Page 46: Rear Parts

    11.6 Rear parts Item: P/N MechFiber250: Qty: Description: 700246 M12 x 25 bolt 700266 M12 locknut FP160-003-0015 Rear channel blank 700297 M20 x 65 bolt 700842 70 mm flange bearing, UCF X14, cast housing 701273 Rear bearing cover FP140-013-0002 Ladder assembly Adjustable light assembly —...
  • Page 47 11.7 VFC-door parts Item: P/N: Qty: Description: FP280-003-0274 Light pod cover FP280-003-0273 LED light pod holder 706005 Rear LED light (left-hand) 706006 Rear LED light (right-hand) 706412 LED light flat washer 706413 LED light rubber buffer FP280-003-0272 Stainless steel wear plate FP280-003-0275 Light pod locator pin 702869...

  • Page 48: Vfc-Door Parts

    11.7 VFC-door parts Item: P/N Mechfiber250 P/N MechFiber280 Qty: Description: RD1010-44 same as 250 Guillotine Door Lower Ram Bracket (Front) RD1010-45 same as 250 Guillotine Door Lower Ram Bracket (Rear) 701591 same as 250 Guillotine Door Bottom Hydraulic Cylinder Pin 704955 same as 250 Front Guillotine Door Hydraulic Cylinder (Small)

  • Page 49: Vfc-Door Indicator Parts

    11.8 VFC-door indicator parts Item: P/N: Qty: Description: 703628 Door indicator wire rope assembly 2,185 mm (250/280) 701559 Pulley Wheel, 50 mm OD, 20 mm thick, for Indicator RD8010-61 VFC-door Indicator Slider Assembly RD8010-58 VFC-door Indicator Cover 703625 Spring, 8" Expansion, 22 mm OD, 2 mm thick EF102-108 Weighbox Arm Mounting Bracket FP140-002-0021...

  • Page 50: Rotor And Paddle Parts

    11.9 Rotor and paddle parts P/N Mechfiber280 Item: P/N: Mechfiber250 Qty: Description: FP100-007-0007 FP115-007-0001 Rotor Welded Assembly FP115-008-0001 FP080-008-0001 Front Paddle Assembly FP080-008-0002 FP115-008-0002 Rear Paddle Assembly 702288 702285 Paddle rubber 20 mm (Front) 702287 702286 Paddle rubber 20 mm (Rear) FP100-008-0006 FP140-008-0009 Paddle rubber retainer...

  • Page 51: Auger Parts

    11.10 Auger parts Item: P/N: Mechfiber250 P/N: Mechfiber280 Qty: Description: 700302 same as 250 M20 x 90 mm Bolts 702007 same as 250 Auger Stub Shaft assembly, 70 mm, forged 701833 same as 250 Sprocket, 20 mm, ASA100, 48 tooth same as 250 Rubber Seal, 10 mm, for Auger, 285 mm x 285 701191...

  • Page 52: Body Sealing Parts

    11.11 Body sealing parts Item: P/N: Mechfiber250 P/N: Mechfiber280 Qty: Description: 701196 701195 Guillotine Door Outer Rubber Seal FP100-006-0053 FP140-006-0022 Guillotine Door Outer Seal Retainer 701291 701290 Guillotine Door Lower Inner Seal FP100-004-0001 FP140-004-0003 Guillotine Door Lower Inner Seal Retainer 703955 same as 250 18/22...

  • Page 53: Body Blade Parts

    11.12 Body blade parts Item: P/N Mechfiber250: P/N Mechfiber280: Qty: Description: 701518 same as 250 Top knife blade, 990 mm long, deep serrations 703955 same as 250 18/22 Body blade 700226 same as 250 36/44 M10 x 30 Cup Head Bolt, BZP, Gr: 8.8 700241 same as 250 36/44...

  • Page 54: Drive System Parts

    11.13 Drive system parts Item: P/N: Qty: Description: EF802-10 Rotor Window Supplied welded to Part No 1 EF807-34 Sprocket, ASA140, 88 Teeth, 20 mm Plate 701534 Rotor Spacer, 95 mm OD, 70 mm ID, 64 mm long Supplied welded to Part No 6 FP080-017-0001 Front Box 90 Degree Bearing Assembly 701520...
  • Page 55 Item: P/N: Qty: Description: 702424 Secondary Drive Chain (Pulton ASA 140SH) EF1014 Secondary Drive Chain Tensioner Assembly 702421 Primary Drive Chain (Pulton ASA 100) remove links to suit length EF1015 Primary Drive Chain Tensioner Assembly Primary Drive Chain Tension Spring, 8”, 3.6 mm wire, 32 mm OD 701275 Secondary Drive Chain Tension Spring, 12”, 4 mm wire, 40 mm OD 701278...

  • Page 56: Axle Parts

    11.14 Axles 11.14.1 Axle options Figure 16: Typical Axle (Exploded View) Axle Types Axle Application KEENAN MechFiber250 and 280 No. Studs Axle Type Straight Cranked Straight Cranked Axle Width (mm) 1,660, 1,760, 1,930 1,950 2,130 1,930 Brake Type/Dimensions 309E, 300 x 90...
  • Page 57 11.14.2 Axle maintenance Tightening and retightening wheel nuts The following points should be followed for tightening and retightening of wheel nuts: 1. Impact wrenches should not be used as the impact torque may be excessive. 2. Wheel nuts should be tightened diagonally every time in conjunction with a torque wrench.

  • Page 58: Ancillary Parts

    11.15 Ancillary parts Planetary Gearbox P/N: Qty: Description: 701421 Planetary Gearbox A20A 1.88 Grease Fittings P/N: Qty: Description: 704913 Grease Tube Swivel Connector - 90 Degree Bend - M6 Thread 704914 Grease Tube Connector - Straight - M6 Thread Grease Tube Connector - Straight – 6 mm Thread 704941 Grease Tube Connector - Straight –...

  • Page 59: Troubleshooting

    12 Troubleshooting 12.1 General troubleshooting PROBLEM: SOLUTION: 1. Weighing display won’t work Check section 12.2 on weighing. properly 2. VFC-door does not move Check hydraulic hoses and that valves are open. Check tractor hydraulic oil level. Check ram condition and pins are secure. Insufficient hydraulic pressure –...
  • Page 60 10. Machine is not chopping Blades blunt. Not enough material in body – not heavy enough – try adding more material or in case of hay/straw add water or a fork of silage to weigh it down. Machine overloaded. 11: Machine breaks ASA140 link Check chain alignment of large sprocket, Tolerance +/- 2 mm.
  • Page 61 the tractor, it may be necessary to enter the mixing chamber to manually clear the blockage. Please refer to Section 5 – Safety, in particular, point “u.” 18: Blockage at auger Use VFC-door to meter material intake into auger Refer to section 7.9 – Feeding Out for correct operation of VFC-door In the unlikely event of a large blockage occurring which prevents the machine from restarting using...

  • Page 62: Weighing Troubleshooting

    12.2 Weighing troubleshooting KEENAN troubleshooting tips on weighing If you experience problems in the operation of the Weighing System, read through this Troubleshooting section first before contacting KEENAN Service. Reading drifting If the reading on the weigh box is drifting or does not stay steady, the most likely cause of the problem is dampness/moisture in or around the weigh box or cables.

  • Page 63: Warranty

    13 Warranty 13.1 KEENAN warranty policy Alltech Farming Solutions Limited, trading as “KEENAN”, (the “Company”) shall undertake to correct by repair or replacement only at the Company‘s option, any defect of material or workmanship, which occurs in any of its products as listed herein within the following warranty period.

  • Page 64: Ec Declaration Of Conformity/Ce Certification

    Irish Courts. 13.2 Product changes and improvements Due to our policy of continuous improvement, Alltech Farming Solutions Ltd reserve the right to make changes in design, to add improvements or to otherwise modify any of its products without incurring any obligation on products previously supplied.

  • Page 65: Contact Details

    3031 Catnip Hill Road, Nicholasville, KY 40356, United States of America Tel: 859-885-9613 Website: alltech.com/keenan Email: keenaninfo@alltech.com Alltech Farming Solutions (UK) Limited KEENAN Ryhall Road, Stamford, Lincolnshire, United Kingdom, PE9 1TZ Tel. Administration: 0800 587 3296 24 hr Service: 0800 587 3296 Fax:...
