Gradient Revolution MK IV User Manual page 8

USE AS A PANEL SPEAKER
It is also possible to direct the bodies as in the Fig. 2. In
this case the low notes are radiated towards the rear and
side walls and the midrange & treble drivers are towards
the listener.
Please note to change the positioning of the plug (turn
away from the "Woofers are on this side" text).
Try different distances (1 m...2m) from the rear wall and
turn the speakers.
In a narrow room Gradient Revolution loudspeakers can
be positioned quite near the side walls. The
recommended minimum distance is about 50cm (20'').

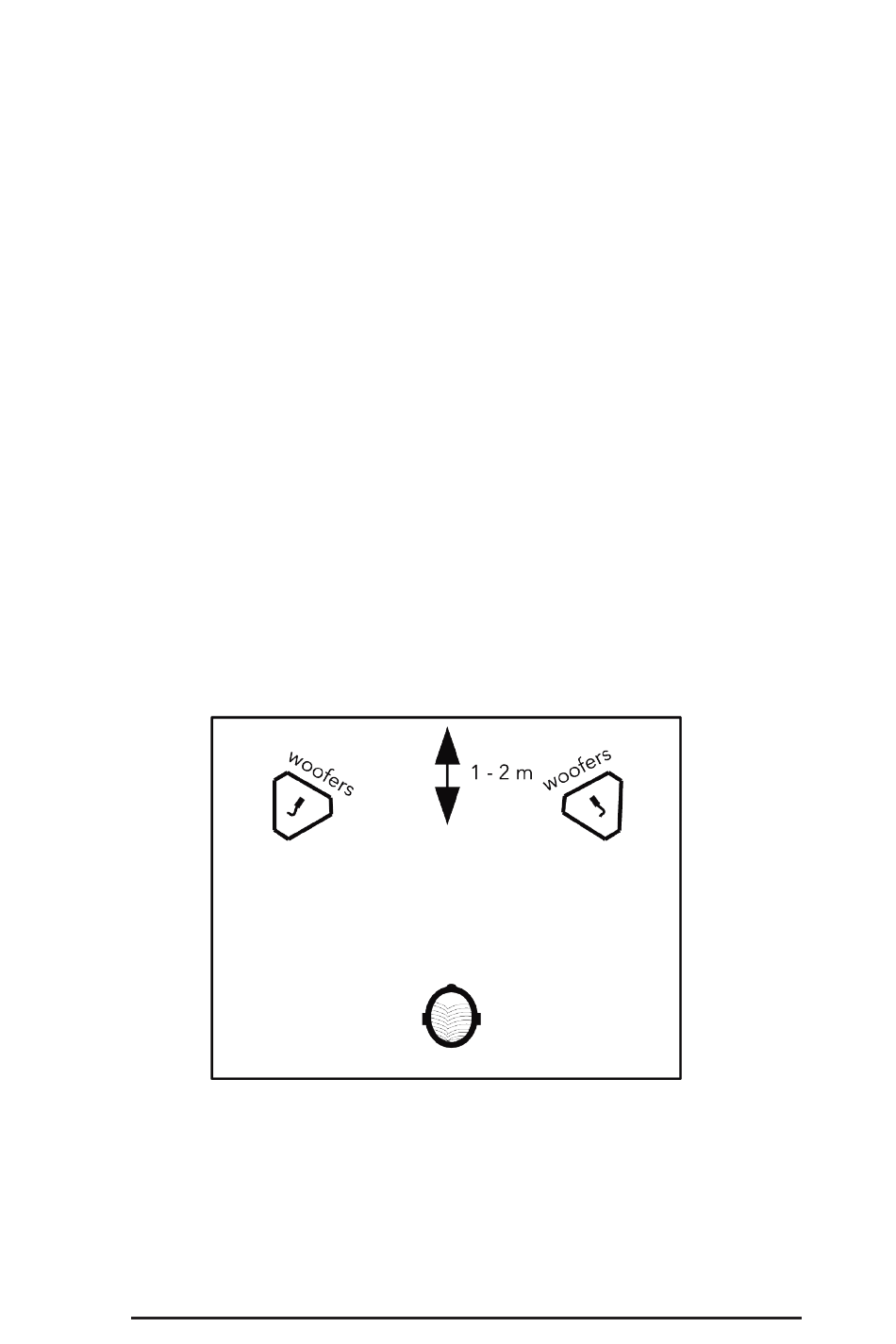

Fig 2. The woofers can also be directed backwards. Note the position of
the plug between the bottom and top part.
8
