USE AS A PANEL SPEAKER
The Gradient Revolution speakers can be positioned in a
free space as any panel speakers. In this case it is
recommendable that the distance from the rear wall will
be minimum one meter (3'). In theory increasing the
distance from the rear wall will allow the speaker to go
lower in frequency. In practice however this rule can be
oversimplified. It is always a good idea to try different
distances. Proper starting points are one meter and two
meters.
The basic set-up – where midrange & treble driver is on
the same side as woofers – is a good starting point. First
direct the speakers as in the Fig. 1 . Also try to turn the
speakers towards the listener step by step.

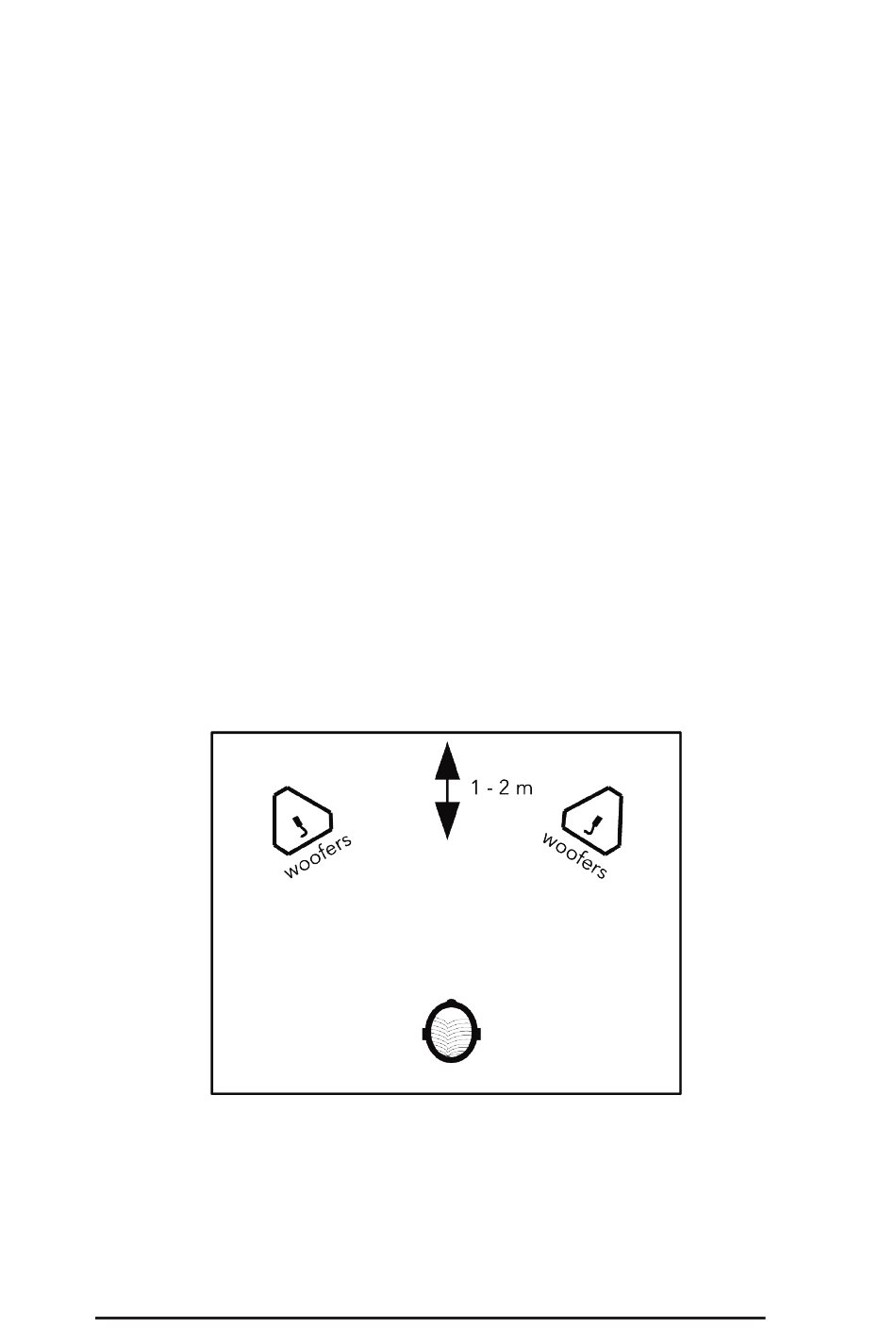

Fig 1 . Basic set-up - where the woofers of the speaker are facing forward.
The distance between the speakers and the wall should be at least one
meter.
