SCT HE03T-4K Quick Start Manual

4K HDMI CAT5e Distribution Extender
ITEM NO.:

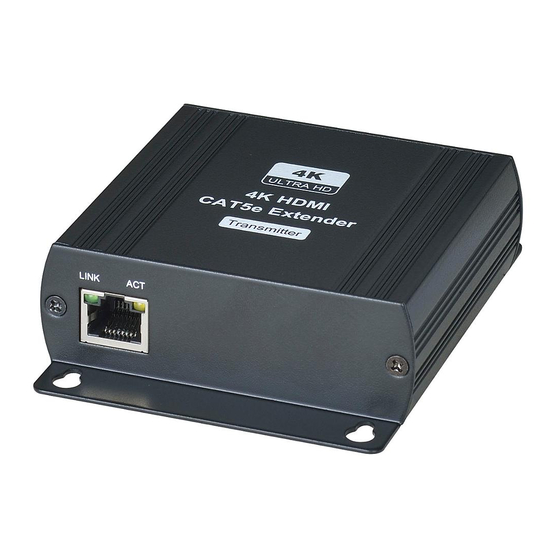

HE03T-4K 4K HDMI CAT5e Extender – Transmitter
HE03R-4K 4K HDMI CAT5e Extender - Receiver
HE03LR-4K 4K HDMI 1 in 3 Out Extender with Chainable Receiver

Features:

Extends 4K UHD HDMI signal over one CAT5e/6 cable.

Support resolution up to 1080P@60hz, 4K@30hz 4:4:4.

HDCP 1.4 compliant.

Audio support up to LPCM7.1@192Khz.

Transmission range up to 120M over CAT5e, 140M over CAT6.

Two receiver for option: HE03R-4K , HE03LR-4K

HE03LR-4K: HDMI CAT5e receiver built in 1 x HDMI output and 2 x RJ45 output. Allow to

chainable to another HE03LR-4K for longer distance and multiple displays.
HE03LR receiver could be chainable up to 250 displays, distance with 2.5KM max.

Plug and play for easy operation.

Optional model: SR01 signal repeater for longer distance application.


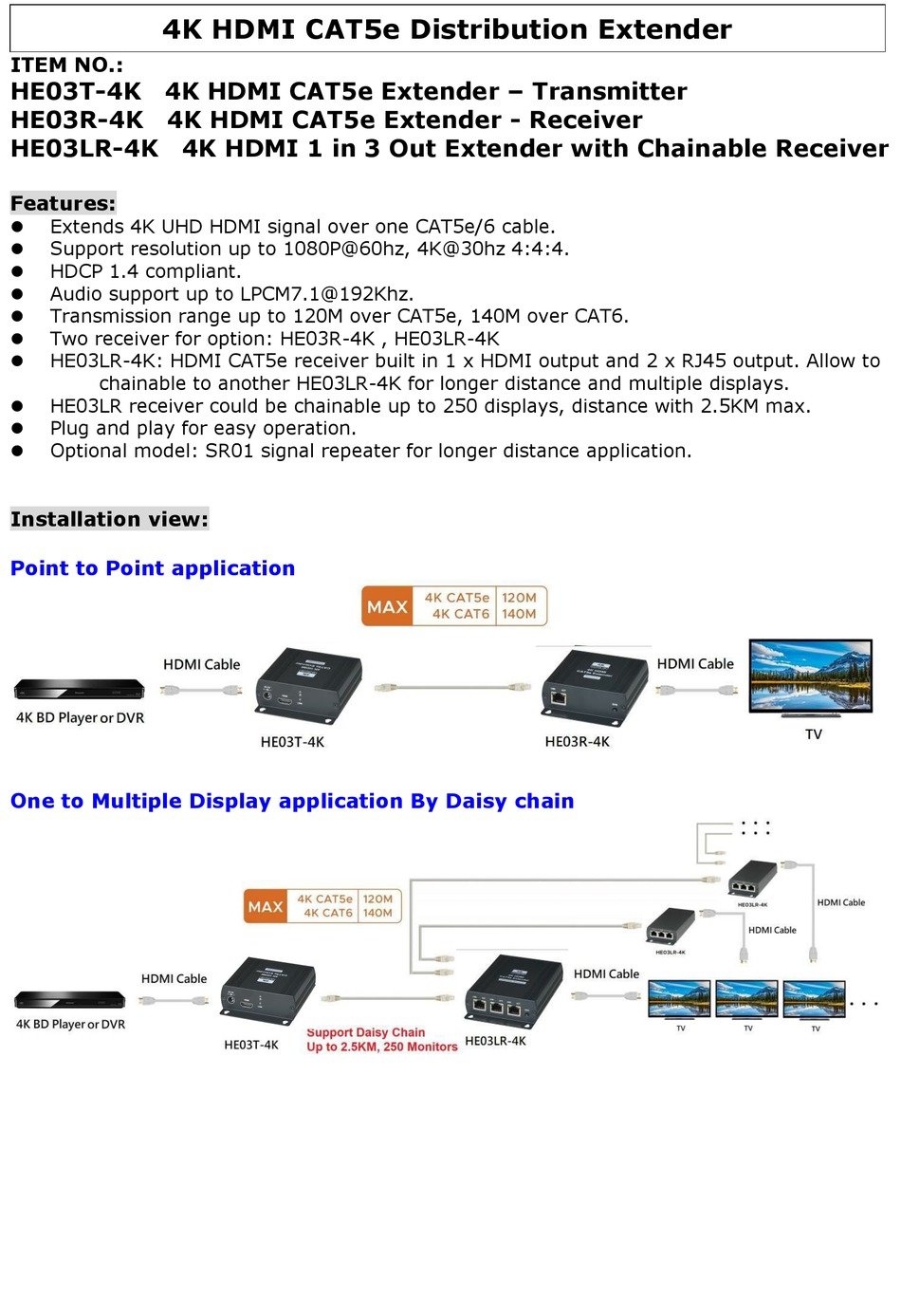

Installation view:

Point to Point application
One to Multiple Display application By Daisy chain
