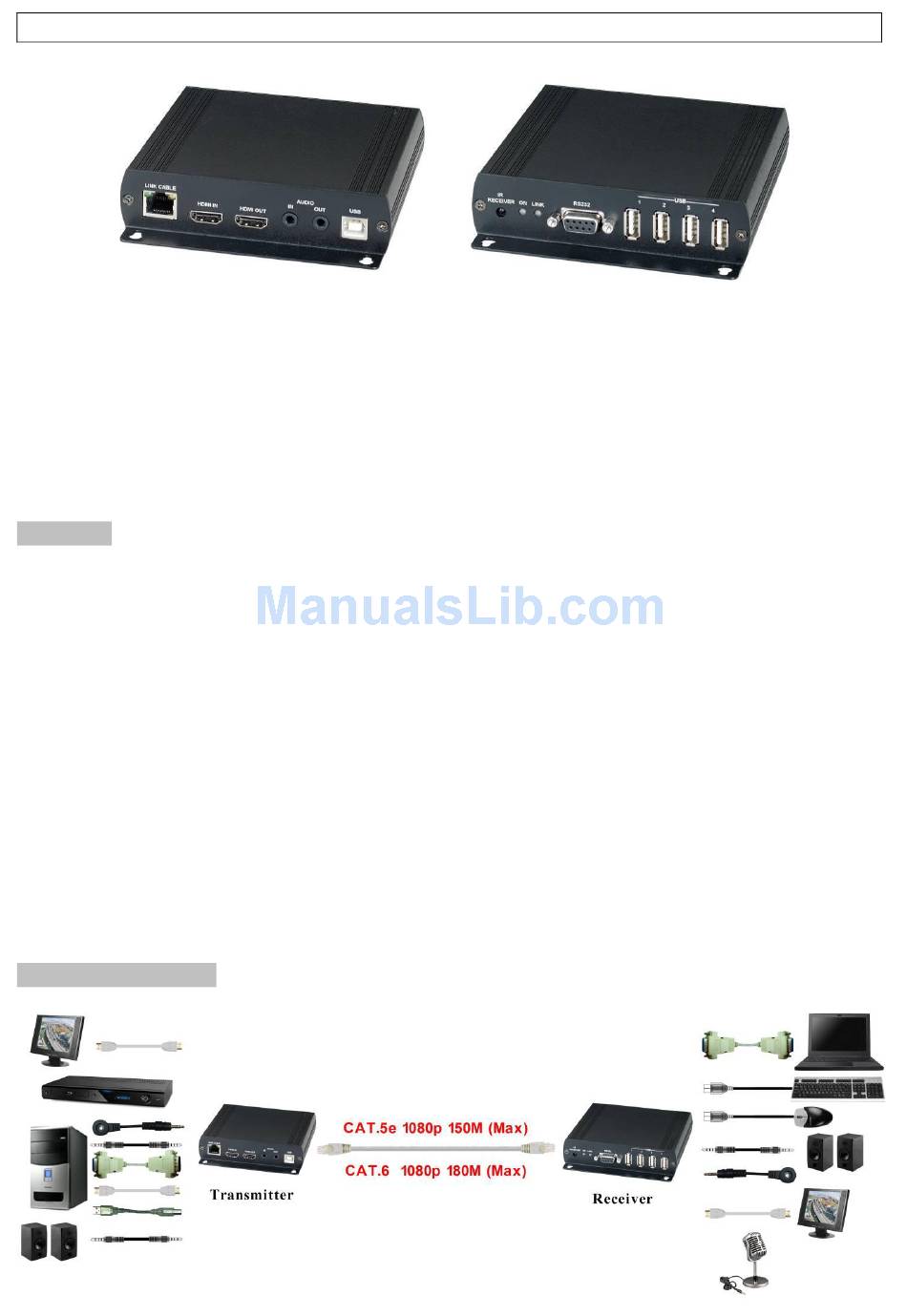

SCT HKM01T Manual

HDMI & USB, AUDIO, RS232, IR CAT5 Extender
ITEM NO: HKM01
The HKM01 HDMI, USB with Analog audio, RS232, and IR CAT5 extender design for extends and distribute
all signals over one CAT5 up to 150 meters, with local HDMI monitor output. It provides superior video
quality up to 1920 x 1200 resolutions, and using cost effective Cat5e cable, instead of HDMI, RS232 cables,
for an easy, neater and reliable installation. The local and remote units can be connected together for a
Point-to-Point connection via CAT5e/6 cable or a Point-to-Many connection via a managed network switch.
It is optimized for applications at broadcasting system, multimedia display and multi-data sharing, digital
signage, home network integration, and industrial control, hospital, education, security, Matrix network
system and system control over RS232 and equipment control over IR.
Features:
Extend HDMI, RS232, IR and USB signals over one CAT5E/CAT6 cable.

Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) 32bpp@ 60 Hz

Transmission range up to 150M over CAT5e, 180M over CAT6.

Supports 2-way RS232 commands at baud rate 115200 (control software on a PC, or

other automated control system hardware) to control devices attached to the matrix using
RS232. Full Duplex data communication.
HDMI 1.3b and HDCP compliant.

HDMI audio support up to LPCM 7.1@192Khz

Built in Bi-Directional analog audio.

Built in Bi-Directional IR.

HKM01T transmitter unit built in HDMI loop output.

Receiver unit with 4 ports USB devices (1 port USB 1.1 & 3 Port USB 2.0), to extend USB

peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
Support point to point and multiple source devices to multi-display connections via

Gigabit network switch. (Giga switch must support IGMP and Jumbo Frame over 8K)
Perfect for control remote machines and security monitoring systems, digital signage

application.
Optional model: SR01 signal repeater for longer distance application.

Installation View:
Point to Point Direct Connection:
HDMI & USB, Audio, RS232, IR CAT5 Extender Over IP
