SCT HE02EIXR Manual

Hdmi (hdbaset) cat5 extender series
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

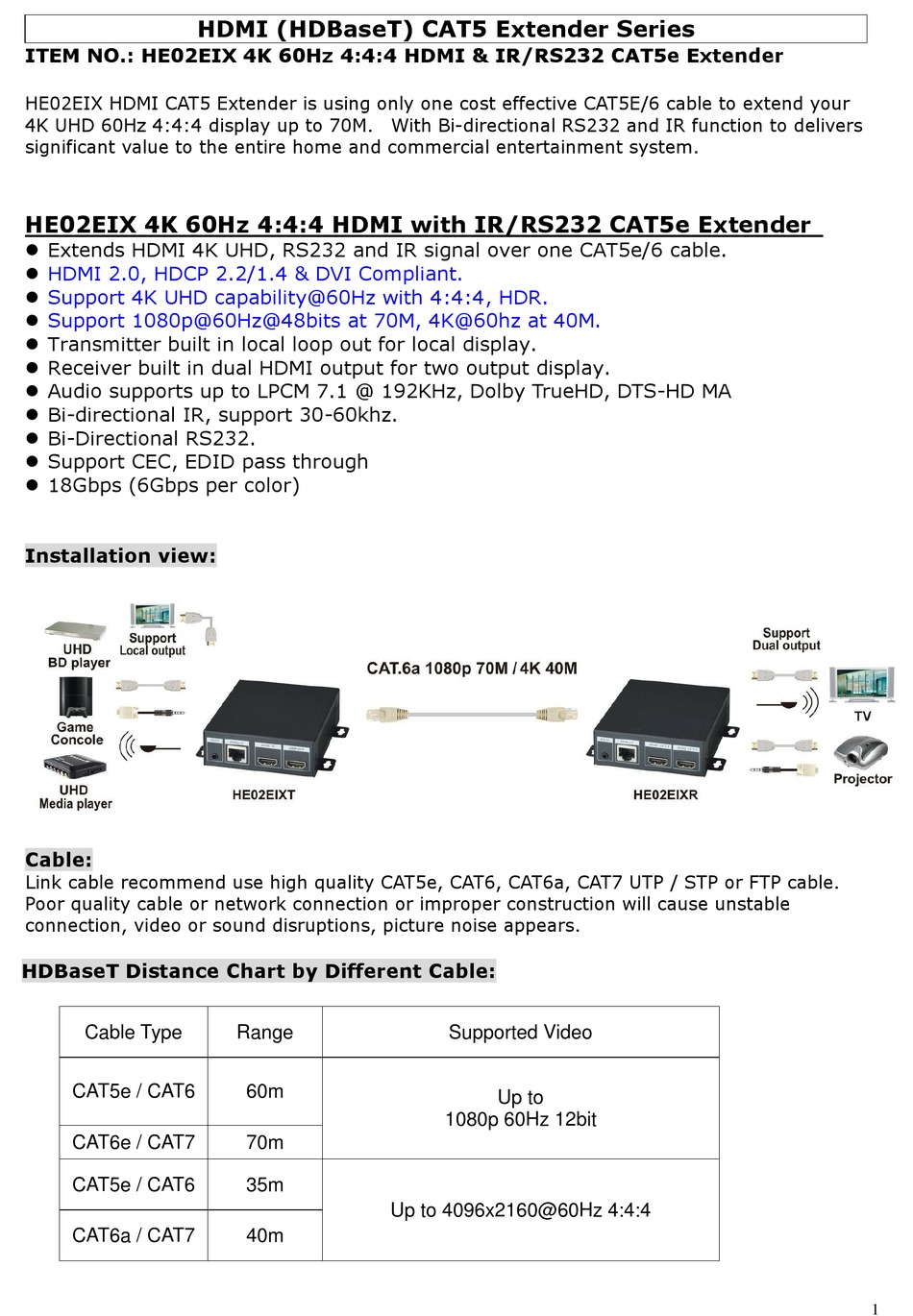

ITEM NO.: HE02EIX 4K 60Hz 4:4:4 HDMI & IR/RS232 CAT5e Extender
HE02EIX HDMI CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your
4K UHD 60Hz 4:4:4 display up to 70M. With Bi-directional RS232 and IR function to delivers
significant value to the entire home and commercial entertainment system.
HE02EIX 4K 60Hz 4:4:4 HDMI with IR/RS232 CAT5e Extender
 Extends HDMI 4K UHD, RS232 and IR signal over one CAT5e/6 cable.
HDMI 2.0, HDCP 2.2/1.4 & DVI Compliant.
Support 4K UHD capability@60Hz with 4:4:4, HDR.
Support 1080p@60Hz@48bits at 70M, 4K@60hz at 40M.
 Transmitter built in local loop out for local display.
 Receiver built in dual HDMI output for two output display.
 Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA
 Bi-directional IR, support 30-60khz.
 Bi-Directional RS232.
 Support CEC, EDID pass through
 18Gbps (6Gbps per color)

Installation view:

Cable:
Link cable recommend use high quality CAT5e, CAT6, CAT6a, CAT7 UTP / STP or FTP cable.
Poor quality cable or network connection or improper construction will cause unstable
connection, video or sound disruptions, picture noise appears.

HDBaseT Distance Chart by Different Cable:

Cable Type
CAT5e / CAT6
CAT6e / CAT7
CAT5e / CAT6
CAT6a / CAT7
HDMI (HDBaseT) CAT5 Extender Series
Range
60m
70m
35m
40m
Supported Video
Up to
1080p 60Hz 12bit
Up to 4096x2160@60Hz 4:4:4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE02EIXR and is the answer not in the manual?

Questions and answers

Related Manuals for SCT HE02EIXR

Summary of Contents for SCT HE02EIXR

  • Page 1 HDMI (HDBaseT) CAT5 Extender Series ITEM NO.: HE02EIX 4K 60Hz 4:4:4 HDMI & IR/RS232 CAT5e Extender HE02EIX HDMI CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your 4K UHD 60Hz 4:4:4 display up to 70M. With Bi-directional RS232 and IR function to delivers significant value to the entire home and commercial entertainment system.

  • Page 2: Panel View

    If connection through the wall socket, the cable length must less 5 meters between HDMI extender and wall jack, as below drawing MAX 70M Wall Jack HE02EIXR HE02EIXT Wall Jack 5M MAX 5M MAX RJ45 Define: Video Link (TIA/EIA-568-B) 1. Orange-white DATA0 + 2.
  • Page 3 LED Instruction: Color Status HE02EIXT HE02EIXR GREEN LINK ON: HDBaseT Linking BLUE VIDEO ON: Input signal 4K@60Hz 4:4:4 FW UP ON: Firmware Update Color Status HE02EIXT HE02EIXR GREEN ON: Power normal BLUE IR RX ON: Receiving IR signal IR TX...

  • Page 4: Trouble Shooting

    Package Include: HE02EIXT HE02EIXR DC 5V 2A Adapter IR Receiver Cable IR Emitter Cable DB9 (M)/3.5mm STEREO PHONE JACK DB9 (F)/3.5mm STEREO PHONE JACK Mounting Screw pack Trouble Shooting: 1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines.

This manual is also suitable for:

He02eixt
