Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
www.lg.com

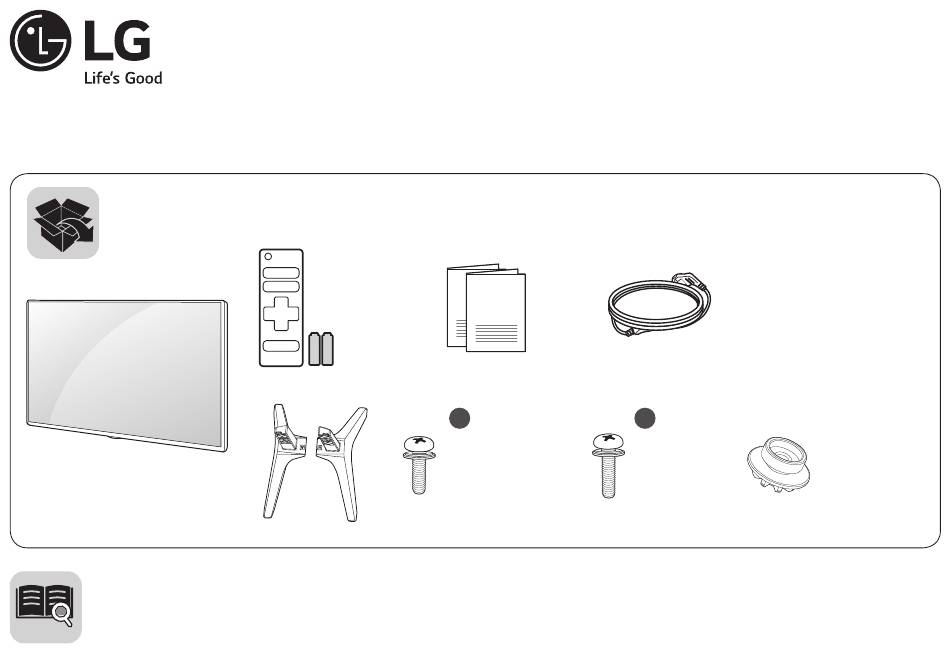

AAA
a
X 4
(M4 x L14)
43/49/55UJ6200
43/49/55UJ620T
43UJ6200
43UJ620T
49UJ6200
49UJ620T
b
X 4
(M5 x L17)
65UJ6200
65UJ620T
P/No: MFL70201602 (1706-REV00)
LED TV
55UJ6200
55UJ620T
65UJ6200
65UJ620T
X 4
43/49UJ6200
43/49UJ620T
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for LG 43UJ620T
Summary of Contents for LG 43UJ620T
- Page 1 LED TV ENGLISH Easy Setup Guide 43UJ6200 55UJ6200 Please read this manual carefully before operating your set and retain it for future reference. 43UJ620T 55UJ620T ESPAÑOL Guía Rápida de Configuración 49UJ6200 65UJ6200 Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
- Page 2 ENGLISH Read Safety & Reference. ESPAÑOL Leer Seguridad y Consultas.
- Page 7 : mm : kg 43UJ6200-SA 241.4 241,4 95.9 95,9 1.5 A / 120 W 1,5 A / 120 W 43UJ620T-DA 49UJ6200-SA 1,104 1 104 251.1 251,1 91.4 91,4 11.3 11,3 1.5 A / 120 W 1,5 A / 120 W...
-
Page 9: Safety And Reference
OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. 43UJ6200 49UJ6200 55UJ6200 65UJ6200 43UJ620T 49UJ620T 55UJ620T 65UJ620T www.lg.com... - Page 10 Warning! Important Safety • Protect the power cord from being walked on or pinched particularly at plugs, convenience instructions receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket, or CAUTION table specified by the manufacturer, or sold with RISK OF ELECTRIC SHOCK...
- Page 11 • Do not attempt to modify this product in any the device, and have the cord replaced with way without written authorization from LG an exact replacement part by an authorized Electronics. Unauthorized modification could servicer.
- Page 12 (car, industrial), abrasive, thinner, benzene, • Use only an authorized AC adapter and power alcohol etc., which can damage the product and/ cord approved by LG Electronics. or its panel. Otherwise, this may result in fire, electric shock, malfunction, or product deformation.
-
Page 13: Optional Extras
Preparing • Do not use any unapproved items to ensure the safety and lifespan of the product. • Any damages or injuries by using unapproved • When the TV is turned on for the first time after items are not covered by the warranty. being shipped from the factory, initialization of •... -
Page 14: Lifting And Moving The Tv
Lifting and Moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not place the product on the floor with its front facing down without padding. When moving or lifting the TV, read the following Failure to do so may result in damage to the to prevent the TV from being scratched or screen. -
Page 15: Adjusting The Menu
Adjusting the Menu Securing the TV to a Wall (optional) When the TV is turned on, press the button one (Depending upon model) time. You can adjust the Menu items using the button. Turns the power off. Changes the input source. Scrolls through the saved channels. -
Page 16: Mounting On A Wall
Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. Wall mount inner When you do not use LG’s wall mount bracket,... -
Page 17: Connecting To An Antenna Or Cable
Other Connections • In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh Connect your TV to external devices. For the best rate to another rate or adjust the brightness and picture and audio quality, connect the external contrast on the Picture menu until the picture is... - Page 18 (Power) Turns the TV on or off. Returns to the last TV channel. Toggles between Radio, TV, CATV, and DTV. Streaming Service buttons Connects to the Video Streaming Service. Activates or deactivates the subtitles. (Home) Accesses the Home menu. Activates your preferred subtitle in digital •...
-
Page 19: Troubleshooting
TV’s performance. Avoid touching the LCD are available for download. screen or holding your finger(s) against it for LG Electronics will also provide open source code long periods of time. Doing so may produce to you on CD-ROM for a charge covering the cost... -
Page 20: Specifications
• Generated Sound External Antenna Impedance - Cracking noise A cracking noise that occurs 75 Ω when watching or turning off the TV is generated by plastic thermal contraction Environment condition due to temperature and humidity. This noise • Operating Temperature is common for products where thermal 0 °C to 40 °C deformation is required. - Page 21 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set.
- Page 22 The model and serial numbers of the TV are located on the back and on one side of the TV. Record them below should you ever need service. MODEL SERIAL...
-
Page 23: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 24: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 25 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
-
Page 26: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 27: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 28: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 29 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 30 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 31 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 32 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 33 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 34 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
-
Page 36: Network Settings
Wheel (OK). Accessibility 5 If the connection is completed, Connected to Internet is displayed. NETWORK Picture TV Name Sound [LG] webOS TV WEBOS3.5 Wired Connection (Ethernet) Channels 3 Select the Network Wired Connection Not Connected (Ethernet) or Wi-Fi Connection. Wi-Fi Connection... -
Page 37: Troubleshooting Network Problems
Fi Settings. NETWORK Picture TV Name When X appears next to Gateway: Sound [LG] webOS TV WEBOS3.5 1 Unplug the power cord of the AP (Router) or cable Wired Connection (Ethernet) Channels modem, wait 5 seconds. Reapply power. Not Connected 2 Initialize (Reset) the AP (Router) or cable modem. -
Page 38: Updating The Tv Firmware
SmartShare PC SW Installation & Setting Install the SmartShare PC SW program on your PC. 1 Go to www.lg.com . Then, select your region. 2 Select Support. 3 Select Software & Drivers. Then, select SmartShare. 4 Download the SmartShare PC SW and install it on your PC. You can run the program when installation is complete. - Page 39 (Screen Share) 1 On the TV Intel® WiDi is set to On. Your laptop runs the Intel® WiDi program. * LG TVs do not need to register. * For more information on Intel® WiDi, visit http://intel.com/go/widi . 2 It detects LG Smart TVs available, which supports WiDi.
- Page 40 Troubleshooting Wi-Fi Network Problems Checkpoints • Make sure that you have the latest version of the software. - If you are using a Wi-Fi router, check whether you have the latest firmware installed. - If there are any available updates, update the firmware according to the manufacturer's instructions. - Check the current software version and if there is an available update, install it.
- Page 41 • Interference Factors If there is any interference from surrounding equipment, the network connection may be weak or unstable. - Wireless telephones that operate in the 2.4 GHz or 5 GHz bandwidth - Wireless speakers that operate in the 2.4 GHz or 5 GHz bandwidth - Video transmitters that operate in the 2.4 GHz or 5 GHz bandwidth - Other wireless devices (Microwaves, cameras, baby monitors, neighboring wireless devices, etc.) that operate in the 2.4 GHz or 5 GHz bandwidth.
