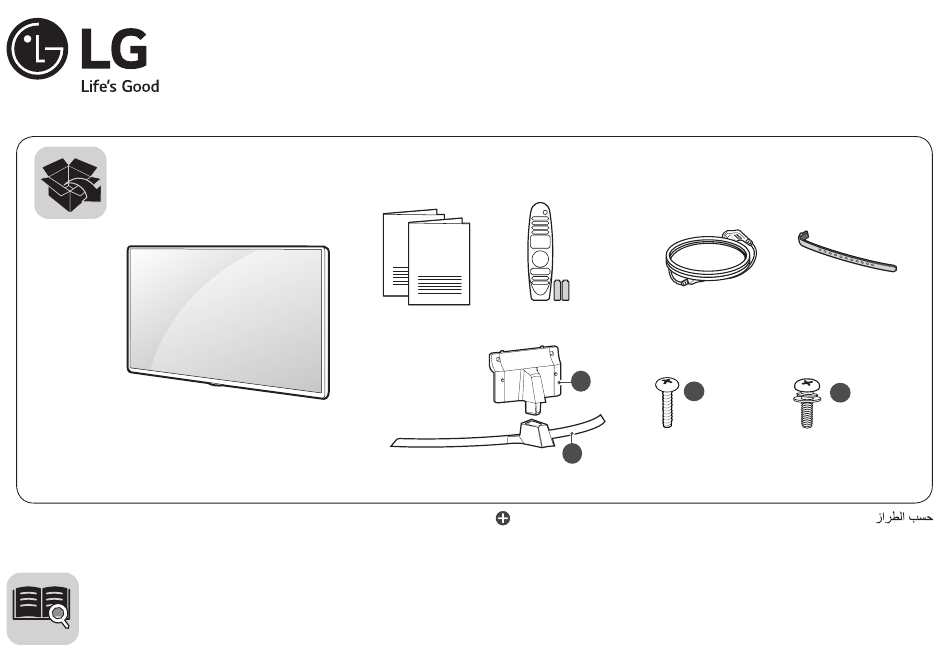

- Page 1 LED TV UJ63** UJ67** UJ65** UJ69** UJ66** (M5 X L20) (M4 X L20) : Depending on model / Selon le modèle / Dependendo do modelo / www.lg.com P/No: MFL69729922 (1702-REV01) Printed in Korea...
- Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN AUDIO OUT/ H/P OUT...
- Page 5 AUDIO OUT/ H/P OUT Satellite IN OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN...
- Page 6 COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 8 43UJ634T-TD 80.8 43UJ634V-TD 43UJ660T-TD 43UJ654T-TD 43UJ654V-TD 234.8 79.4 10.5 43UJ670V-TD 43UJ670Y-TD 43UJ690T-TD...
- Page 9 49UJ634T-TD 1110 81.1 12.7 11.3 49UJ634V-TD 49UJ660T-TD 49UJ654T-TD 49UJ654V-TD 1107 259.2 79.4 12.7 11.3 49UJ670V-TD 49UJ670Y-TD 49UJ690T-TD 55UJ634T-TD 1249 83.4 15.6 14.2 55UJ634V-TD 55UJ660T-TD 55UJ654T-TD 55UJ654V-TD 1237 259.2 63.8 17.4 16.0 55UJ670V-TD 55UJ670Y-TD 55UJ690T-TD 60UJ634T-TD 1359 82.9 19.0 17.4 60UJ634V-TD 60UJ660T-TD 60UJ654T-TD 1345...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69726303* P/NO : MFL69726303 (1702-REV00) Printed in Korea...
- Page 14 Warning! Safety instructions • Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. • Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out. CAUTION • Ensure the power cord does not come into contact with hot objects RISK OF ELECTRIC SHOCK such as a heater. This may cause a fire or an electric shock hazard. DO NOT OPEN • Do not place a heavy object, or the product itself, on power cables. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT Otherwise, this may result in fire or electric shock. REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. • Bend antenna cable between inside and outside building to REFER TO QUALIFIED SERVICE PERSONNEL. prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock. This symbol is intended to alert the user to the presence of • When mounting TV onto wall make sure to neatly install and uninsulated “ dangerous voltage” within the product’s isolate cabling from rear of TV as to not create possibility of electric enclosure that may be of sufficient magnitude to constitute a risk ...
- Page 15 • Batteries should not be exposed to excessive heat. For example, • Do not install this product on a wall if it could be exposed to oil or keep away from direct Sunlight, open fireplace and electric oil mist. This may damage the product and cause it to fall. heaters. • If water enters or comes into contact with TV, AC adapter or power • Signal from Remote Control can be interrupted due to external/ cord please disconnect the power cord and contact service centre internal lighting eg Sunlight, fluorescent lighting. If this occurs immediately. Otherwise, this may result in electric shock or fire. turn off lighting or darken viewing area. • Only use an authorized AC adapter and power cord approved by • When connecting external devices such as video game consoles, LG Electronics. Otherwise, this may result in fire, electric shock, make sure the connecting cables are long enough. Otherwise, malfunction or product deformation. the product may fall over, which may cause injury or damage the • Never Disassemble the AC adapter or power cord. This may result product. in fire or electric shock. • Do not turn the product On/Off by plugging-in or unplugging • Be careful in handling the adapter to prevent any external shocks the power plug to the wall outlet. (Do not use the power plug for to it. An external shock may cause damage to the adapter. switch.) It may cause mechanical failure or could give an electric • Make sure the power cord is connected securely to the power plug shock. on the TV.
- Page 16 Preparing • Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product. • Periodically examine the cord of your appliance, and if its • If the TV is turned on for the first time after it was shipped from the appearance indicates damage or deterioration, unplug it, factory, initialization of the TV may take a few minutes. discontinue use of the appliance, and have the cord replaced with • Image shown may differ from your TV. an exact replacement part by an authorized servicer. • Your TV’s OSD (On Screen Display) may differ slightly from that • Prevent dust collecting on the power plug pins or outlet. This may shown in this manual. cause a fire hazard. • The available menus and options may differ from the input source • Protect the power cord from physical or mechanical abuse, such as or product model that you are using. being twisted, kinked, pinched, closed in a door, or walked upon. • New features may be added to this TV in the future. Pay particular attention to plugs, wall outlets, and the point where • The items supplied with your product may vary depending on the the cord exits the appliance. model. • Do not press strongly upon the panel with a hand or sharp object • Product specifications or contents of this manual may be changed such as nail, pencil or pen, or make a scratch on it, as it may without prior notice due to upgrade of product functions. cause damage to screen.
-
Page 17: Lifting And Moving The Tv
Lifting and moving the TV • Do not use any unapproved items to ensure the safety and product life span. • Any damage or injuries caused by using unapproved items are not covered by the manufacturer’s warranty. Please note the following advice to prevent the TV from being scratched • Some models have a thin film attached on to the or damaged and for safe transportation regardless of its type and size. screen and this must not be removed. • It is recommended to move the TV in the box or packing material • When attaching the stand to the TV set, place the that the TV originally came in. screen facing down on a cushioned table or flat surface • Before moving or lifting the TV, disconnect the power cord and to protect the screen from scratches. all cables. • Make sure that the screws are inserted correctly and • When holding the TV, the screen should face away from you to fastened securely. (If they are not fastened securely avoid damage. enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly. • Make sure to wring any excess water or cleaner from the cloth. • Do not spray water or cleaner directly onto the TV • ... -
Page 18: Using The Button
Using the button Basic functions <A / B type> Power On (Press) (Depending on model) Power Off (Press and 1 You can simply operate the TV functions, using the button. hold) <A type> Volume Control Programmes Control <C type> Power On (Press) Power Off (Press and Hold) 1 Menu Control (Press 2 Menu Selection (Press and Hold 3 1 All running apps will close, and any recording in progress will stop. 2 You can access and adjust the menu by pressing the button when TV is on. <B type> 3 You can use the function when you access menu control. Adjusting the menu (Depending on model) When the TV is turned on, press the button one time. You can adjust the Menu items using the button. Turns the power off. -
Page 19: Mounting On A Table
Mounting on a table Securing the TV to a wall (This feature is not available for all models.) 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. • If there are bolts inserted at the eye-bolts position, remove the bolts first. 2 Mount the wall brackets with the bolts to the wall. 2 Connect the power cord to a wall outlet. Match the location of the wall bracket and the eye-bolts on the rear of the TV. • Do not place the TV near or on sources of heat, as this may result in fire or other damage. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface. • Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the • Make sure that children do not climb on or hang on product. (Doing so may damage the product.) the TV. -
Page 20: Mounting On A Wall
65SJ80** 49/55UJ75** 60/65UJ75** 49/55UJ69** 65UJ69** Attach an optional wall mount bracket at the rear of the TV carefully Model 49/55UJ67** 65UJ67** and install the wall mount bracket on a solid wall perpendicular to 49/55UJ66** 60/65UJ66** the floor. When you attach the TV to other building materials, please 49/55UJ65** 60/65UJ65** contact qualified personnel. LG recommends that wall mounting be 49/55UJ63** 60/65UJ63** performed by a qualified professional installer. VESA (A x B) (mm) 300 x 300 300 x 300 We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use Standard screw LG’s wall mount bracket, please use a wall mount bracket where the Number of screws device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables LSW350B Wall mount bracket LSW350B before installing fixed wall mounts. -
Page 21: Connections (Notifications)
Connections (notifications) • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of Connect various external devices to the TV and switch input modes to dust and insects. (Depending on model) select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. • The external device connection may differ from the model. • Connect external devices to the TV regardless of the order of the TV port. Stand hole • If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device. • Refer to the external equipment’s manual for operating instructions. • If you connect a gaming device to the TV, use the cable supplied with the gaming device. • In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. • In PC mode, some resolution settings may not work properly depending on the graphics card. • If ULTRA HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC’s ... -
Page 22: Remote Control
Remote control Satellite dish connection (Only satellite models) Connect the TV to a satellite dish to a satellite socket with a satellite RF (Some buttons and services may not be provided depending on models cable (75 Ω). or regions.) The descriptions in this manual are based on the buttons on the remote CI module connection control. Please read this manual carefully and use the TV correctly. (Depending on model) To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the View the encrypted (pay) services in digital TV mode. compartment, and close the battery cover. To remove the batteries, • Check if the CI module is inserted into the PCMCIA card slot in the perform the installation actions in reverse right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot. • In Analogue TV and some countries, some remote • If the TV does not display any video and audio when CI+ CAM is control buttons may not work. connected, please contact to the Terrestrial/Cable/Satellite Service Operator. Make sure to point the remote control toward the remote control sensor on the TV. USB connection * To use the button, press and hold for more than 3 seconds. 필리핀/이란/수단/시리아... -
Page 23: Magic Remote Functions
Magic remote functions (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. (Search) Search for content such as TV programmes, movies and other videos, or perform a web search by entering text in the search (Some buttons and services may not be provided depending on models or regions.) bar. By zooming in on the selected area, you can view it in When the message “ Magic remote battery is low. Change the battery.” is full screen. displayed, replace the battery. (Q. Settings) Accesses the Quick Settings. To replace batteries, open the battery cover, replace batteries (1.5 V AA) (INPUT) Changes the input source. matching the and ends to the label inside the compartment, Number buttons Enters numbers. and close the battery cover. Be sure to point the magic remote toward Shows programme guide. the remote control sensor on the TV. To remove the batteries, perform Returns to the previously viewed programme. the installation actions in reverse. * You can access apps or Live TV using the number buttons corresponding to the features. • In Analogue TV and some countries, some remote Adjusts the volume level. control buttons may not work. Accesses your favourite programme list. * To use the button, press and hold for more than 3 seconds. -
Page 24: Registering Magic Remote
(Voice recognition) register Magic Remote at once. Network connection is required to use the voice recognition function. 1 Press the voice recognition button. 2 S peak when the voice display window appears on the TV screen. Licenses (SEARCH)* Search for content such as TV programmes, movies and other videos, or perform a web search by entering text in the search bar. (HOME) Shows Home menu. Supported licenses may differ by model. For more information about * Shows the previous history licenses, visit www.lg.com. Displays the set-top box Home menu. - When you are not watching via a set-top box: the display changes to the set-top box screen. , (Q. Settings) Accesses the Quick Settings. - Pressing and holding the button displays the All Settings menu. Wheel (OK) Press the center of the Wheel button to select a menu. You can change programmes by using the Wheel button. (up/down/left/right) Press the up, down, left or ... -
Page 25: Troubleshooting
External control device Abnormal Display • If the product feels cold to the touch, there may be a small “ flicker” setup when it is turned on. This is normal, there is nothing wrong with product. • This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue To obtain the external control device setup information, please visit or green) at a size of 1 ppm on the panel. This does not indicate a www.lg.com. malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not Troubleshooting subject to exchange or refund. • You may find different brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. Cannot control the TV with the remote control. It is not related with the product performance, and it is not • Check the remote control sensor on the product and try again. malfunction. • Check if there is any obstacle between the product and the remote • Displaying a still image for a prolonged period of time may cause control. image sticking. Avoid displaying a fixed image on the TV screen for • Check if the batteries are still working and properly installed ( ... -
Page 26: Specifications
Specifications Digital TV Analogue TV (Depending on country) (Depending on country) Wireless module specifications PAL B/B, PAL B/G, PAL Television DVB-T/T2 D/K, PAL-I • As band channels can vary per country, the user cannot change or system DVB-T/T2/C/S/S2 SECAM B/G, SECAM D/K adjust the operating frequency. This product is configured for the NTSC-M regional frequency table. • For consideration of the user, this device should be installed and Programme VHF, UHF VHF, UHF, CATV operated with a minimum distance of 20 cm between the device coverage C-Band , Ku-Band and the body. Maximum number of DVB-T/T2 & Analogue TV : 3,000 storable DVB-S/S2 : 6,000 Wireless module(LGSBWAC72)specifications prgrammes Wireless LAN (IEEE 802.11a/b/g/n/ac) External antenna 75 Ω... - Page 27 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. • Only using furniture that can safely support the television set. • Ensuring the television set is not overhanging the edge of the supporting furniture. • Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. • Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture. • Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied. Symbols Refers to alternating current(AC). Refers to direct current(DC). Refers to class II equipment. Refers to stand-by. Refer to “ ON” (power). Refers to dangerous voltage.
- Page 28 Refer to the label on the back cover and quote this 19960 in Egypt information to your dealer when requiring any service. 021 36 54 54 in Algeria MODEL Other countries, Please contact our local dealer or log into SERIAL http://www.lg.com...
-
Page 29: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 30: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 31 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
-
Page 32: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 33: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... - Page 34 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 35 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 36 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 37 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 38 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 39 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 40 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
- Page 42 (All Settings) icon and select to Internet" is displayed. by pressing the Wheel (OK) button on the remote. NETWORK Picture Sound TV Name [LG] WebOS TV WEBOS3.5 Wired Connection (Ethernet) Programmes Not Connected Wi-Fi Connection Connected to Internet Network Wi-Fi Direct LG Connect Apps...
- Page 43 (The MAC address displayed on the right Sound TV Name Sound ꔐ WI-FI : AAA pane of the network status window should be [LG] WebOS TV WEBOS3 WI-FI : BBB Wired Connection (Ethernet) Programmes registered with your Internet service provider.) Programmes...
- Page 44 1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network. 2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones). 3 Enable your smartphone to share content files with other devices.
- Page 45 1 Intel's WiDi is set to On. Your laptop runs the Intel WiDi programme. 2 It detects LG webOS TVs available, which supports WiDi. In the list, select the TV you want and click Connect. Enter the number shown on the screen into the input field ( ) on your laptop and then click Continue.
