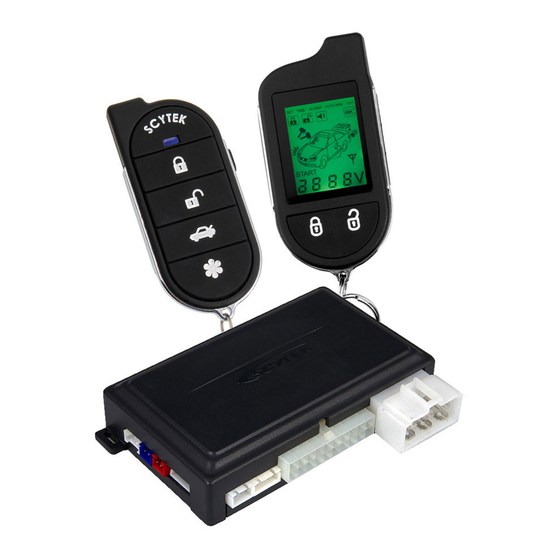

- Page 1 G5.2W,G5,G2.2W,G2 A4.2W,A4,A1.2W,A1 A1.1 SERIES VEHICLE SECURITY SYSTEM WITH REMOTE START PRODUCT MANUAL...
- Page 2 This vehicle security system is warranted to the original purchaser, to be free from defects in material and workmanship. The manufacturer will repair or replace at its option, and free of charge for the first twelve (12) months, any part that proves defective in material or workmanship under normal installation, use, and service, provided the product is returned to the manufacturer freight prepaid.
- Page 3 About Your System ............Page 1 Remote Transmitters .
- Page 4 T5-2W-KIT Two Way Pager upgrade kit Easy Plug and Play upgrade to a complete two way system. Increases range MobiLink Smart phone upgrade Easy Plug and Play upgrade through the DBP (Data Bus port) 2 Way confirmation Arm/Disarm Remote Start On/Off Trunk Release Tracking Alert Notification by SMS and Email...
- Page 5 **May require additional parts and/or labor, see store for details. · Second Car Operation · Remote Window Control · Keyless Entry · Power Trunk / Hatch Release · Two Stage Door Unlocking · Glass Breakage Sensor · Starter Defeat · Radar Sensor ·...
- Page 6 Button 1 Arm Button 2 Disarm Button 5 Shift Button 3 Trunk Release Button 4 Start Page 2 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 7 A1.1 Series Remote Program transmitter(s): 1. Turn on the ignition key On, Off, 4 times and then back On on fifth time. · The siren will chirp 5 times. 2. Press and hold the Override switch for 5 seconds. · The siren will chirp 5 times. ·...
- Page 8 Remote Transmitter uses one 3 volt lithium batteries (type CR2032) Depending on the amount of use, the batteries may last up to 4 years or more before they need replacement. Page 4 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 9 Button 5 Conf/Shift Button 1 Lock/Arm Button 2 Unlock/Disarm G5.2W, G2.2W, A4.2W, A1.2WP - Page 5...
- Page 10 Page 6 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 11 Transmitter Button 5 is used for confirmation, transmitter programming, as well as activation of the LCD backlighting for use in the dark. Press and release button 5 momentarily to activate the LCD backlight. The 2-way transmitter's confirmation feature allows the current vehicle status to be displayed at any time.
- Page 12 Page 8 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 13 * During Arming, if the system detects a bad sensor or an open zone, the system will chirp 4 additional times and ignore that input, but keep all other areas protected. G5.2W, G2.2W, A4.2W, A1.2W - Page 9...
- Page 14 Page 10 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 15 G5.2W, G2.2W, A4.2W, A1.2W - Page 11...
- Page 16 Page 12 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 17 G5.2W, G2.2W, A4.2W, A1.2W - Page 13...
- Page 18 ** See the Auto Start Cold or Hot Temperature Activation. Page 14 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 19 Model: G5-M/G2-M 1- Tach wire must be connected , The system must learn RPM. 2- Hand brake wire must be connected. 3- Door trigger wire must be connected 4- Clutch override installed With engine running and Hand-brake engaged put the vehicle transmission in neutral and remove the foot from the brake pedal, press the remote start button on your transmitter, parking lights will flash twice indicating Manual Start Mode is enabled, turn off the Ignition switch, the engine will remain running.
- Page 20 Page 16 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 21 G5.2W, G2.2W, A4.2W, A1.2W - Page 17...
- Page 22 Page 18 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 23 G5.2W, G2.2W, A4.2W, A1.2W - Page 19...
- Page 24 vehicles. Page 20 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 25 default setting shown G5.2W, G2.2W, A4.2W, A1.2W - Page 21...
- Page 26 Page 22 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 27 Feature Button 1 (default) Button 2 Button 3 Button 4 Branch Arm Mode Manual Arming Passive Arming Auto Rearming Mode Disabled Enabled Arming Chirps Siren Chirps On Siren & Horn Chirps On Silent Data Bus Module ADS Data Module Fortin Ignition Door Locking Set Override Code Ignition Door Unlocking...
- Page 28 Page 24 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 29 G5.2W, G2.2W, A4.2W, A1.2W - Page 25...
- Page 30 When enabled doors unlock before start. 36. Alternate Manual Transmission Start Mode: If set, the vehicle start mode is enabled upon engaing the hand brake. (manual transmission systems only). Transmitter 2 way Transmitter Auto Start Temp Auto Start Timer Mobilink External Trigger Page 26 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 31 Positive Dome Light Activation Negative Dome Light Activation Positive Horn Honk Negative Horn Honk Starter Defeat/Anti-Grind Negative Glow Plug G5.2W, G2.2W, A4.2W, A1.2W - Page 27...
- Page 32 Follow the diagrams below for connecting basic door lock systems. For Two Stage door lock systems (separately unlocks driver and passenger doors) see following pages. Positive Trigger Negative Trigger blue green Reverse Polarity Vacuum Adding Actuators Page 28 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 33 The Galaxy 5000/2000RS-DBP Series is equipped with a dedicated Passenger Unlock output allowing Two Stage Door Lock operation. When connected as shown below, disarming the system will unlock only the driver’s door. Pressing the disarm button again will unlock all doors. Two Stage Negative Trigger Two Stage Positive Trigger Door Lock Inverter Green Wire...
- Page 34 Two Stage Reverse Polarity Two Stage Adding Actuators Page 30 - G5.2W, G2.2W, A4.2W, A1.2W...
- Page 35 FCC ID: OARRXAM2000 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation Built-in LED Light/Override/Valet/Call Switch into the Antenna...
