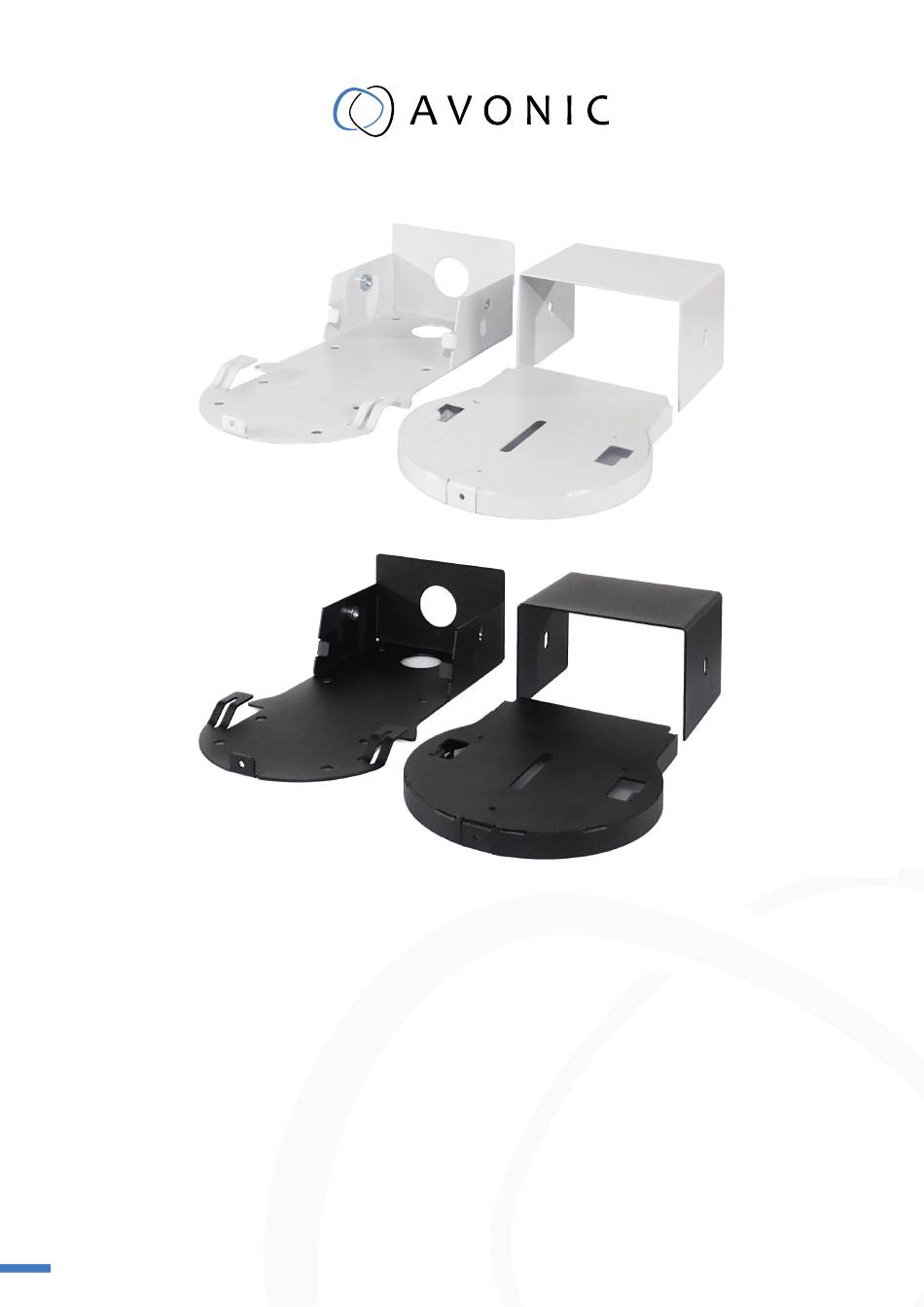

- Page 1 Avonic Ceiling mount AV-MT250 www.avonic.eu | User Manual | Version 1.0...
-
Page 2: Table Of Contents
Join Avonic ................ -
Page 3: Introduction
For any questions or suggestions, contact your reseller or the local distributor of Avonic. Find the local distri- butor on the website of Avonic. For the most recent version of the manual or datasheet, look at the Avonic website: www.avonic.eu Join Avonic facebook.com/avonicPTZ... -
Page 4: Package Contents And Accessories
PACKAGE CONTENTS AND ACCESSORIES Contents Quantity Description 1 pc Ceiling mount AV-MT250-B/ -W 1 pc 1/4”-20 UNC Central Camera Screw 5 pc M3*6mm black screw 2 pc Black Allen bolt (back cover) 1 pc Black 30MM Cover Cap Back to top www.avonic.eu... -
Page 5: Product Overview
PRODUCT OVERVIEW The Avonic MT250 is a solid ceiling mount suitable for the CM40 and CM70 series. Its discrete design matches the silent operation of Avonic PTZ cameras. The MT-250 is equipped with two VESA75 mounting possibilities. The double VESA75 holes serve a dual purpose; it ensures optimal compatibility with standard VESA mounts and it makes finding a suitable ceiling location to mount the MT-250 easy. -
Page 6: Installation
If you choose to mount the camera onto a standard VESA polemount, the baseplate has two VESA75 mounting possibilites (Figure 1.), making it easy to find the best position for the bracket Figure 1. Figure 2. *screws and plugs not included Back to top www.avonic.eu... - Page 7 (Figure 4.). The construction has been designed in such a way that the camera can be hung up and be released so the installer has his or her hands free. Figure 3. Figure 4. Back to top www.avonic.eu...
- Page 8 (Figure 6.). Note that the screws of the covercap are placed off-centre, indicating that the cover can only be mounted in one specific way to match up exactly with the back of the camera. Figure 6. Back to top www.avonic.eu...
-
Page 9: Measurements And Specs
MEASUREMENTS AND SPECS Ceiling mount plate with cover for Avonic cameras. General specifications Color WHITE OR BLACK Dimensions product MM (W x H X D) 138 X 69 X 240 Weight product 1.1 KG Dimensions package MM (W X H X D)
